High Efficient Ore Grinding Mill Machine Wet Tube Grinding Mill

High Efficient Wet Tube Grinding Mill Ore Grinding Mill Machine

1. Introduction of tube grinding mill ore grinding mill machine
Tube Grinding Mill is a very important fine mill equipment in modern industry. The production capacity of large Tube Grinding Mill is very high. Tube Grinding Mill is widely used for grinding cement and other materials in building materials, metallurgy, mineral processing, electric power and chemical industry. The Tube Grinding Mill has the characteristics of large crushing ratio, large production capacity, strong adaptability to materials and easy replacement of worn parts.

2. Advantages of tube grinding mill ore grinding mill machine
(1) Strong adaptability to fluctuations of material physical properties (such as particle size, moisture, hardness, etc.), and large production capacity.
(2) The crushing ratio is large (generally more than 300, up to more than 1000 when ultra-fine grinding), the fineness of the product is fine, and the particle size is easy to adjust.
(3) can adapt to different conditions of the operation: dry operation, can also be wet operation, but also the drying and grinding two processes together at the same time; Open circuit milling, also can be closed circuit milling.
(4) Good sealing, negative pressure operation, no dust flying in the work site.
(5) It is convenient for large-scale production and can meet the needs of modern enterprises.

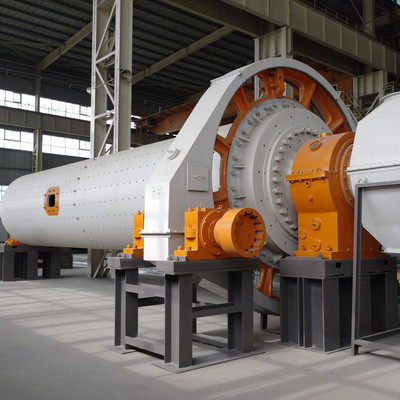

3. Tube Grinding Mill Ore Grinding Mill Machine
The tube mill is designed in the advantages and disadvantages of the open-flow grinding system. It has made a significant improvement on the traditional ball mill. In addition to all the advantages of open-flow grinding, compared with the ball mill of the same specification, the mill output has been greatly improved, and the powder is fine, the specific surface area is increased, to achieve high yield, high fine. It provides a new type of grinding equipment for producing high grade cement.
The tube mill of Luo mine adjusts the material level of each bin, increases the ventilation volume and improves the conditions inside the mill by its unique combination of bin separator and discharge separator. At the same time, the new liner is used to adjust the speed of the mill, optimize the gear design and lubrication parameters of the bearing bush, increase the stability and service life of the mill, and improve the grinding efficiency.
Compared with the ball mill of the same specification, the output of the tube mill is increased by 20% and the power consumption per unit product is decreased by 10-12% under the condition that other parameters are unchanged. The specific surface area of cement can be up to 320m2/kg in open-flow grinding.

4. Product parameters of tube grinding mill ore grinding mill machine





After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS

LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
