| Product Name: | Hammer Crusher | Maximum Feed Size: | 650 Mm |
|---|---|---|---|
| Condition: | New | Application: | Stones And Bulk Materials |
| Capacity: | 60-180 T/h | Uasge: | Building Materials, Chemical |
| Warranty: | 12 Months | Type: | Stone Crusher Machine |
| High Light: | Single Stage Stone Crusher Machine,Square Box Hammer Crusher Machine,Single Stage Hammer Crusher Machine |
||
Stone Crusher Machine Hammer Crusher
Ⅰ. Product introduction of hammer crusher(a kind of stone crusher machine):
Hammer crushers are widely used for fine grinding medium hardness materials in industrial sectors such as mineral processing plants, refractory plants, cement plants, glass plants and so on. It can be crushed in two forms, dry and wet. The wet type is to wet the material with water seepage, and the dry type is to do dry grinding without water seepage.
Used in coal, metallurgy, building materials, chemical industry, electric power and other departments to crush or finely crush coal, coal gangue, limestone, shale, feldspar, gypsum, coke, bricks, gravel, salt and sulfur phosphorus, limonite bricks, The machine has the characteristics of light and compact body, simple structure, easy operation and maintenance, large crushing ratio, less over-grinding, uniform and small product particle size, high production capacity and low energy consumption.
Ⅱ. Scope of application of hammer crusher(a kind of stone crusher machine):
PCF series single-stage square box hammer crusher is a kind of crushing equipment. It is suitable for crushing medium-hard materials such as limestone, marl, sandstone, shale, gypsum, coal, etc. whose compressive strength is less than 100MPa.
Single-stage hammer crusher is used for crushing general brittle ores, such as limestone, argillaceous siltstone, shale, gypsum and coal, etc. It is also suitable for crushing limestone and clay mixtures. Compared with the traditional two-stage crushing system, it can save 45% of one-time investment, reduce the weight of workshop equipment by 32.5%, and reduce the cost of ore crushing. about 40%. The operation is simple, the maintenance is convenient, and the labor intensity of the workers is improved. Therefore, as long as the physical properties of the ore are suitable, it is a more economical and reliable solution to choose this machine as the crushing equipment for large-scale mines.
As the main crushing equipment in cement plants, this machine is more suitable for the working conditions of heavy rainfall, wet material and more soil than similar single-rotor single-stage crushing equipment. Due to the special structure of this machine, the problem of clogging is eliminated when crushing sticky materials, and it has a special protection device, which can automatically rebound the accidentally mixed metal foreign objects such as shovel teeth, drill bits and hammers back to the feeding roller or It is not necessary to shut down for this purpose, and the work is safe and reliable.
Stone crusher machine PCF box hammer crusher parameters:
| Model | Maximum Feed Size(mm) | Output(t/h) | Power(kw) |
| 1000×1000 | 650 | 60-80 | 75-90 |
| 1000×1200 | 650 | 80-100 | 110-132 |
| 1200×1400 | 650 | 100-140 | 160-200 |
| 1400×1600 | 650 | 120-180 | 220-250 |

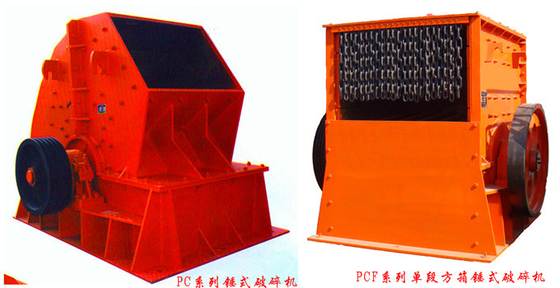

Stone crusher machine PCF box hammer crusher photo explanation:
