Product Details:
Payment & Shipping Terms:
|
| Name: | Multi-Cylinder Hydraulic Cone Crusher | Application: | Stones And Bulk Materials Crushing |
|---|---|---|---|
| Model: | XHP Multi-Cylinder Hydraulic Cone Crusher | Production: | 3-500 T/H |
| Feed Size: | ≤1020MM | Classification: | Stone Crusher Machine |
| Place Of Origin: | Luoyang, China | Warranty: | 12 Months |
| High Light: | stone crushing equipment,stone crusher plant |
||

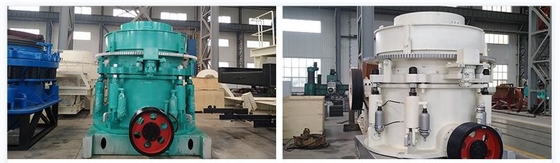

XHP Series Stone Crusher Machine Multi-Cylinder Hydraulic Cone Crusher
1. Product advantages of Stone Crusher Machine XHP Multi-Cylinder Hydraulic Cone Crusher
(1) XHP hydraulic cone crusher has large crushing ratio and high production efficiency
Combined with higher speed and stroke, the rated power and passing capacity of XHP crusher are greatly improved, and the crushing ratio and production efficiency are improved.
(2) Less consumption of wearing parts and low operating cost
Reasonable structure, reliable operation, low operation cost; The parts of the crusher are protected by wear-resistant blocks, which can reduce the maintenance cost to a lower limit, increase the service life by more than 30%, laminate crushing, and the finished products have good grain shape.
Through the special crushing chamber designed by the principle of intergranular lamentation and the matching speed, it replaces the traditional single particle crushing principle, realizes the selective crushing of materials, significantly increases the proportion of fine material and the content of cube, and greatly reduces the needle-sheet materials.
(3) Hydraulic protection and hydraulic cavity cleaning, high degree of automation, reduce downtime
Hydraulic control discharge port and overload protection improve the operation level of cone crusher, so that maintenance is simple, easy to operate, short downtime; XHP series cone crusher two-way iron release hydraulic cylinder can let the iron through the crushing chamber, the cone crusher in the case of iron and instantaneous congestion, hydraulic jacking, automatic discharge.
(4) Thin oil lubrication, reliable and advanced, improve the service life
Unique thin oil lubrication system design, greatly improve the service life of equipment. High performance non-contact labyrinth seal without wear, improve the reliability of dust blocking, fundamentally eliminate the original spring cone crusher oil water mixing and other common faults.
(5) Multi-cylinder crushing cavity type, flexible application, strong adaptability
XHP cone crusher only needs to replace the fixed cone liner plate, moving cone liner plate, the crushing cavity type from super coarse cavity type to short head ultrafine cavity type arbitrary transformation, to adapt to a wide range of product particle size requirements. Easy maintenance, easy operation and use. XHP cone crusher parts can be disassembled and maintained from the top and side, moving cone and fixed cone disassembly is convenient, no need to disassemble the mounting frame, fastening bolts.
(6) Good production efficiency.
Hydraulic cone crusher provides high production capacity, product size, and easy automatic control, with reliability.
2. Product parameters of Stone Crusher Machine XHP Multi-Cylinder Hydraulic Cone Crusher
|
|
|
Standard |
Short head type |
power(kw) |
capacity |
The host weight(t) |
Total weight(t) |
||
|
Feeding Size(MM) |
Discharging Size(MM) |
Feeding Size(MM) |
Discharging Size(MM) |
||||||
|
XHP200 |
(BC) |
|
|
|
|
132-200 |
90-250 |
11.14 |
14 |
|
(C) |
185 |
19 |
76 |
10 |
|||||
|
(m) |
125 |
17 |
54 |
6 |
|||||
|
(F) |
95 |
13 |
23 |
6 |
|||||
|
(BF) |
|
|
10 |
5 |
|||||
|
XHP300 |
(BC) |
230 |
25 |
|
|
180-250 |
110-440 |
15.8 |
19.96 |
|
(C) |
210 |
20 |
75 |
10 |
|||||
|
(m) |
150 |
15 |
50 |
8 |
|||||
|
(F) |
105 |
10 |
20 |
6 |
|||||
|
(BF) |
|
|
20 |
6 |
|||||
|
XHP400 |
(BC) |
295 |
30 |
|
|
280-355 |
140-630 |
23 |
28.72 |
|
(C) |
250 |
25 |
90 |
10 |
|||||
|
(m) |
195 |
20 |
50 |
8 |
|||||
|
(F) |
110 |
14 |
40 |
6 |
|||||
|
(BF) |
|
|
30 |
6 |
|||||
|
XHP500 |
(BC) |
330 |
30 |
|
|
355-450 |
175-790 |
33.3 |
38 |
|
(C) |
285 |
25 |
90 |
13 |
|||||
|
(m) |
200 |
20 |
55 |
10 |
|||||
|
(F) |
133 |
16 |
40 |
8 |
|||||
|
(BF) |
|
|
35 |
6 |
|||||
|
XHP800 |
(BC) |
353 |
32 |
|
|
550-630 |
|
|
|
|
(C) |
297 |
32 |
155 |
13 |
|||||
|
(m) |
267 |
25 |
92 |
10 |
|||||
|
(F) |
219 |
16 |
33 |
6 |
|||||
|
(BF) |
|
|
|
|
|||||
