Product Details:
Payment & Shipping Terms:
|
| Name: | Multi-Cylinder Hydraulic Cone Crusher | Model: | XHP200 |
|---|---|---|---|
| Production: | 3-500 T/H | Feeding Size(MM): | 95-185 MM |
| Classification: | Stone Crusher Machine | Discharging Size(MM): | 13-19 Mm |
| Warranty: | 12 Months | Power(kw): | 132-200 KW |
| High Light: | stone crushing equipment,stone crusher plant |
||
Mining Machine Stone Crusher Machine And Hydraulic Cone Crusher

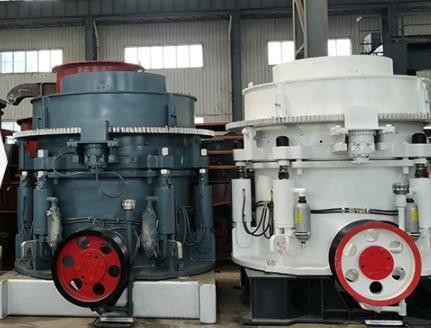

1. Product introduction of Stone Crusher Machine XHP Multi-Cylinder Hydraulic Cone Crusher
XHP hydraulic cone crusher is a cone crusher equipment. The equipment is different from the previous cone crusher equipment, it uses the bottom multi-cylinder design, the production efficiency has been improved.
The internal structure design and the application of wear-resistant material make it able to break hard rock such as basalt, and also can break a variety of hard ore minerals, which can be used in stone production, artificial sand making, mineral processing production and other operations.
2. Product advantages of Stone Crusher Machine XHP Multi-Cylinder Hydraulic Cone Crusher
(1) XHP hydraulic cone crusher has large crushing ratio and high production efficiency
Combined with higher speed and stroke, the rated power and passing capacity of XHP crusher are greatly improved, and the crushing ratio and production efficiency are improved.
(2) Less consumption of wearing parts and low operating cost
Reasonable structure, reliable operation, low operation cost; The parts of the crusher are protected by wear-resistant blocks, which can reduce the maintenance cost to a lower limit, increase the service life by more than 30%, laminate crushing, and the finished products have good grain shape.
Through the special crushing chamber designed by the principle of intergranular lamentation and the matching speed, it replaces the traditional single particle crushing principle, realizes the selective crushing of materials, significantly increases the proportion of fine material and the content of cube, and greatly reduces the needle-sheet materials.
(3) Hydraulic protection and hydraulic cavity cleaning, high degree of automation, reduce downtime
Hydraulic control discharge port and overload protection improve the operation level of cone crusher, so that maintenance is simple, easy to operate, short downtime; XHP series cone crusher two-way iron release hydraulic cylinder can let the iron through the crushing chamber, the cone crusher in the case of iron and instantaneous congestion, hydraulic jacking, automatic discharge.
3. Product parameters of Stone Crusher Machine XHP Multi-Cylinder Hydraulic Cone Crusher
|
|
|
Standard |
Short head type |
power(kw) |
capacity |
The host weight(t) |
Total weight(t) |
||
|
Feeding Size(MM) |
Discharging Size(MM) |
Feeding Size(MM) |
Discharging Size(MM) |
||||||
|
XHP200 |
(BC) |
|
|
|
|
132-200 |
90-250 |
11.14 |
14 |
|
(C) |
185 |
19 |
76 |
10 |
|||||
|
(m) |
125 |
17 |
54 |
6 |
|||||
|
(F) |
95 |
13 |
23 |
6 |
|||||
|
(BF) |
|
|
10 |
5 |
|||||
|
XHP300 |
(BC) |
230 |
25 |
|
|
180-250 |
110-440 |
15.8 |
19.96 |
|
(C) |
210 |
20 |
75 |
10 |
|||||
|
(m) |
150 |
15 |
50 |
8 |
|||||
|
(F) |
105 |
10 |
20 |
6 |
|||||
|
(BF) |
|
|
20 |
6 |
|||||
|
XHP400 |
(BC) |
295 |
30 |
|
|
280-355 |
140-630 |
23 |
28.72 |
|
(C) |
250 |
25 |
90 |
10 |
|||||
|
(m) |
195 |
20 |
50 |
8 |
|||||
|
(F) |
110 |
14 |
40 |
6 |
|||||
|
(BF) |
|
|
30 |
6 |
|||||
|
XHP500 |
(BC) |
330 |
30 |
|
|
355-450 |
175-790 |
33.3 |
38 |
|
(C) |
285 |
25 |
90 |
13 |
|||||
|
(m) |
200 |
20 |
55 |
10 |
|||||
|
(F) |
133 |
16 |
40 |
8 |
|||||
|
(BF) |
|
|
35 |
6 |
|||||
|
XHP800 |
(BC) |
353 |
32 |
|
|
550-630 |
|
|
|
|
(C) |
297 |
32 |
155 |
13 |
|||||
|
(m) |
267 |
25 |
92 |
10 |
|||||
|
(F) |
219 |
16 |
33 |
6 |
|||||
|
(BF) |
|
|
|
|
|||||
