Product Details:
Payment & Shipping Terms:
|
| Name: | Compound Cone Crusher | Model: | ZX Series |
|---|---|---|---|
| Production: | 80-610T/H | Feeding Size(MM): | ≤300MM |
| Classification: | Stone Crusher Machine | Discharging Size(MM): | 35-65 Mm |
| Warranty: | 12 Months | Type: | ZX1650C2-D |
| Stroke (mm): | 34 Mm | Motor Power: | 250 Kw |
| High Light: | stone crushing equipment,stone crusher plant |
||

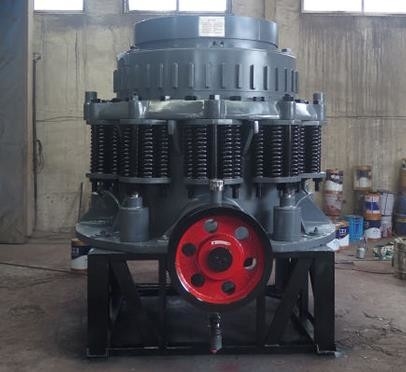

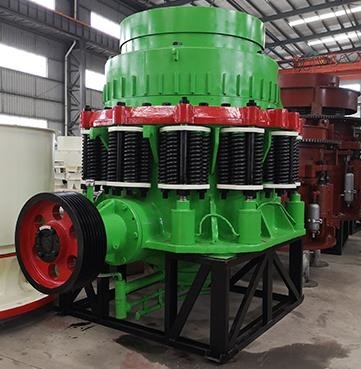

Multi-Cylinder Hydraulic Cone Crusher Of Stone Crusher Machine
1. Overview of ZX Series Compound Cone Crusher Of Stone Crusher Machine
Output: 80-610T/H
Feed size: ≤300MM
Applicable materials: pebbles, basalt, granite, iron ore
Application: Granite, limestone, concrete, quicklime, gypsum, hydrated lime
2. Product introduction of ZX Series Compound Cone Crusher Of Stone Crusher Machine
ZX compound cone crusher has hydraulic cavity cleaning, hydraulic adjustment discharge port function, moving fixed tooth plate replacement without packing, reduce equipment management and maintenance costs.
3. Product parameters of ZX Series Compound Cone Crusher Of Stone Crusher Machine
| Model | Cavity Type | Stroke (mm) |
Max.Feeding Size(mm) | Discharging Opening Adjusted Scope(mm) | Capacity (t/h) |
Motor power(kw) | Machine reference weight (t) |
| ZX1650C2-D | Coarse | 34 | 300 | 35-65 | 280-610 | 250 | 35 |
| ZX1650C-D | Coarse | 34 | 260 | 30-60 | 265-580 | 250 | 35 |
| ZX1650Z-D | Medium Coarse | 34 | 240 | 25-50 | 240-550 | 250 | 35 |
| ZX1650S-X | Fine | 28 | 130 | 20-45 | 180-350 | 250 | 35 |
| ZX1400C-D | Coarse | 30 | 235 | 30-60 | 210-530 | 220 | 25 |
| ZX1400Z-D | Medium Coarse | 30 | 215 | 25-50 | 200-500 | 220 | 25 |
| ZX1400Z-X | Medium Coarse | 25 | 180 | 22-45 | 180-475 | 220 | 25 |
| ZX1400S-X | Fine | 25 | 100 | 19-40 | 130-260 | 220 | 25 |
| ZX1200C-D | Coarse | 22 | 180 | 19-50 | 110-250 | 132 | 16 |
| ZX1200S-X | Fine | 15 | 80 | 16-40 | 80-180 | 132 | 16 |
