| Name: | Compound Cone Crusher | Model: | ZX Series |
|---|---|---|---|
| Stroke (MM): | 22 MM | Machine Reference Weight (t): | 16T |
| Classification: | Stone Crusher Machine | Discharging Size(MM): | 35-65 Mm |
| Max.Feeding Size(mm): | 180MM | Type: | ZX1200C-D |
| High Light: | Compound Cone Crusher,180MM Feeding Compound Cone Crusher,180MM Feeding Stone Crusher Machine |
||

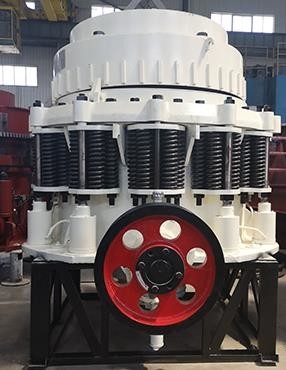

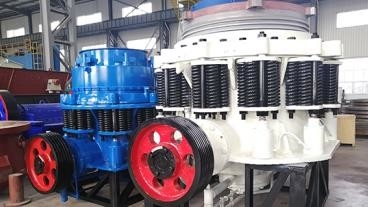

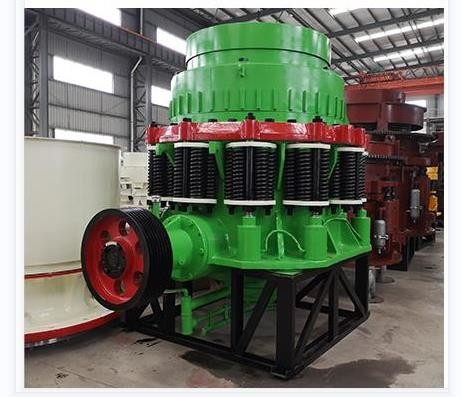

Large Medium And Fine Stone Crusher Machine and Compound Cone Crusher
1. Overview of Compound Cone Crusher Of Stone Crusher Machine
Output: 80-610T/H
Feed size: ≤300MM
Applicable materials: pebbles, basalt, granite, iron ore
Application: Granite, limestone, concrete, quicklime, gypsum, hydrated lime
2. Product introduction of Compound Cone Crusher Of Stone Crusher Machine
ZX compound cone crusher has hydraulic cavity cleaning, hydraulic adjustment discharge port function, moving fixed tooth plate replacement without packing, reduce equipment management and maintenance costs.
3. Product parameters of Compound Cone Crusher Of Stone Crusher Machine
| Model | Cavity Type | Stroke (mm) |
Max.Feeding Size(mm) | Discharging Opening Adjusted Scope(mm) | Capacity (t/h) |
Motor power(kw) | Machine reference weight (t) |
| ZX1650C2-D | Coarse | 34 | 300 | 35-65 | 280-610 | 250 | 35 |
| ZX1650C-D | Coarse | 34 | 260 | 30-60 | 265-580 | 250 | 35 |
| ZX1650Z-D | Medium Coarse | 34 | 240 | 25-50 | 240-550 | 250 | 35 |
| ZX1650S-X | Fine | 28 | 130 | 20-45 | 180-350 | 250 | 35 |
| ZX1400C-D | Coarse | 30 | 235 | 30-60 | 210-530 | 220 | 25 |
| ZX1400Z-D | Medium Coarse | 30 | 215 | 25-50 | 200-500 | 220 | 25 |
| ZX1400Z-X | Medium Coarse | 25 | 180 | 22-45 | 180-475 | 220 | 25 |
| ZX1400S-X | Fine | 25 | 100 | 19-40 | 130-260 | 220 | 25 |
| ZX1200C-D | Coarse | 22 | 180 | 19-50 | 110-250 | 132 | 16 |
| ZX1200S-X | Fine | 15 | 80 | 16-40 | 80-180 | 132 | 16 |
Depending on our company's strong scientific research ability and production and sales ability, relying on advanced and mature production technology in Luoyang mining machinery industry cluster area, we have cooperated with major well-known enterprises at home and abroad to provide technical services and complete sets of equipment for key projects in national mining, metallurgy, building materials, lifting, electric power, non-ferrous metals, environmental protection, chemical industry, petroleum and other industries. Spare parts. Relying on innovative technology, new products and perfect after-sales service, the company has won the trust and support of more and more domestic and foreign customers.
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
Contact Person: Mr. David
Tel: 86-18637916126
