Product Details:
Payment & Shipping Terms:
|
| Product: | Cone Crusher | Application: | Road Industry, Chemical Industry And Phosphate Industry |
|---|---|---|---|
| Type: | PY Spring Cone Crusher | Feed Size: | ≤ 391MM |
| Output: | 90-1200T/h | Motor Power (kW): | 30-280 KW |
| Classification: | Stone Crusher Machine | Warranty: | 12 Months |
| High Light: | Rock Spring Cone Crusher,1200T/h Stone Crusher Machine,Ore Spring Cone Crusher |
||

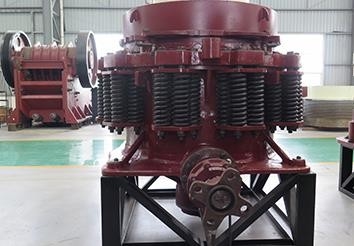

Spring Cone Crusher Stone Crusher Machine For Crushing Ore And Rock
1. Overview of PY Spring Cone Crusher Stone Crusher Machine
Output: 90-1200T/h
Feed size: ≤ 391MM
Applicable materials: basalt and other hard materials
Application: Used in metallurgical industry, building materials industry, road industry, chemical industry and silicate industry, suitable for crushing medium and above medium hardness of ores and rocks.
2. Product parameters of PY Spring Cone Crusher Stone Crusher Machine
| Model | Diameter of crushing cone (mm) |
Discharge port adjustment range (mm) |
Maximum feed size (mm) |
Capacity (t/h) |
Motor power (kw) |
Weight (t) |
Dimension (mm) |
| PYB-600 | 600 | 12-25 | 65 | 15-25 | 30 | 5.5 | 1740×1225×1940 |
| PYD-600 | 600 | 3-13 | 36 | 5-23 | 30 | 5.5 | 1740×1225×1940 |
| PYB-900 | 900 | 15-50 | 115 | 50-90 | 55 | 10.18 | 1990×1640×2380 |
| PYZ-900 | 900 | 5-20 | 60 | 20-65 | 55 | 10.19 | 1990×1640×2380 |
| PYD-900 | 900 | 3-13 | 40 | 15-50 | 55 | 10.27 | 1990×1640×2380 |
| PYB-1200 | 1200 | 20-50 | 145 | 110-200 | 110 | 24.7 | 2805×2300×2980 |
| PYZ-1200 | 1200 | 8-26 | 100 | 50-150 | 110 | 25 | 2805×2300×2980 |
| PYD-1200 | 1200 | 3-15 | 50 | 18-105 | 110 | 25.6 | 2805×2300×2980 |
| PYB-1750 | 1750 | 25-60 | 215 | 280-480 | 155-160 | 50.6 | 3610×2950×4185 |
| PYZ-1750 | 1750 | 10-30 | 185 | 115-320 | 155-160 | 51 | 3610×2950×4185 |
| PYD-1750 | 1750 | 5-15 | 85 | 75-230 | 155-160 | 50.5 | 3610×2950×4185 |
| PYB-2200 | 2200 | 30-60 | 300 | 590-1000 | 260-280 | 84 | 4790×3430×5080 |
| PYZ-2200 | 2200 | 10-30 | 235 | 200-580 | 260-280 | 85 | 4790×3430×5080 |
| PYD-2200 | 2200 | 5-16 | 110 | 120-370 | 260-280 | 85 | 4790×3430×4852 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
