Product Details:
Payment & Shipping Terms:
|
| Model: | Cone Crusher | Material: | Granite, Limestone, Concrete, Quicklime, Gypsum, Hydrated Lime |
|---|---|---|---|
| Cavity Type: | Standard Fine Type,Standard Medium Size,Standard Coarse Shape | Type: | PSG Simmons Crusher |
| Main Motor Power(kw): | 30-400 | Weight (kg): | 4500 |
| Classification: | Stone Crusher Machine | Warranty: | 12 Months |
| High Light: | 1000mm Feed Size Stone Crusher Machine,1000mm Feed Size Simmons Crusher |
||

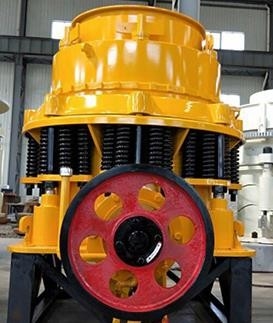

Stone Crusher Machine PSG Simmons Crusher Of 1000mm Feed Size
1. Product introduction of cone crusher Stone Crusher Machine
Simons cone crusher crushing chamber type: divided into different cavity design, users can choose according to the site situation high crushing efficiency, uniform product particle size, good particle shape, rolling mortar wall wear uniform and long service life of the crushing chamber. Dry oil seal dust-proof: the unique dust-proof sealing structure, reliable sealing effect, prolong the replacement cycle of lubricating oil and the service life of parts.
The crushing cavity shape and the lamination crushing principle are adopted to produce the crushing effect between particles, so that the proportion of cube in the finished product is increased, the needle-shaped stone is reduced, and the grain size is uniform. High output: compared with other models, the PSG series cone breaking arm is long, the stroke is large, the crushing force is large, and the material in the crushing chamber can be broken.
Support large crushing ratio:
The key parts are made of special materials. In each stroke, the distance between the crushing cone and the rolling mortar wall is large, which not only allows more materials to enter the crushing chamber, but also forms a larger discharge volume, so that the speed of materials passing through the crushing chamber is accelerated.
High efficiency:
The upper and lower ends of the main shaft of the machine are supported, which can bear the larger crushing force and larger stroke, and the special crushing chamber shape which is suitable for the laminating principle makes the machine have higher crushing efficiency.
Low maintenance cost for daily operation:
Reasonable parts selection and structure design, long service life, long crushing moment arm, reduce the load on the sliding bearing, gear and frame, uniform crushing product particle size, reduce the cycle load, hydraulic cavity cleaning system: easy to operate, reduce downtime, low power consumption, reasonable distribution.
Discharge port adjustment: PSG series cone crusher contains hydraulic adjustment mechanism, easy to quickly adjust the size of cone crusher discharge port.
Lubrication circulation system: special light oil lubrication circulation system, to ensure that the oil return temperature within 60℃; The new oil filtration system ensures that the transmission device is not accidentally worn, thus stabilizing the service life. The double pump oil supply lubrication system ensures the temperature rise of the main shaft and copper tile, long life, reliable operation and extended maintenance cycle.
Overload protection: the spring safety system is an overload protection device, which can make the metal foreign matter pass through the crushing chamber without harming the machine.
2. Product parameters of cone crusher Stone Crusher Machine
|
Spec |
Model |
Cavity type |
Diameter of large end of crushing cone(mm) |
Discharge port adjustment range |
The feeding size of the opening edge at the minimum discharge port(mm) |
Maximum feeding size |
Capacity (t/h) |
Main motor power(kw) |
Weight |
Dimension |
|
2'FT |
PSGB-0607 |
Standard fine type |
600 |
6-38 |
70 |
60 |
16-50 |
30 |
4500 |
2195×1158×1651 |
|
2'FT |
PSGB-0609 |
Standard medium size |
600 |
10-38 |
95 |
80 |
18-65 |
30 |
4500 |
2195×1158×1651 |
|
2'FT |
PSGB-0611 |
Standard coarse shape |
600 |
13-38 |
110 |
90 |
22-70 |
30 |
4500 |
2195×1158×1651 |
|
2'FT |
PSGD-0603 |
Short head thin type |
600 |
3-13 |
35 |
30 |
9-35 |
30 |
4500 |
2195×1158×1651 |
|
2'FT |
PSGD-0605 |
Short head thick type |
600 |
5-16 |
50 |
40 |
22-70 |
30 |
4500 |
2195×1158×1651 |
|
3'FT |
PSGB-0910 |
Standard fine type |
900 |
9-22 |
102 |
85 |
45-91 |
75 |
9980 |
2656×1636×2241 |
|
3'FT |
PSGB-0917 |
Standard coarse shape |
900 |
13-38 |
175 |
150 |
59-163 |
75 |
9980 |
2656×1636×2241 |
|
3'FT |
PSGB-0918 |
Standard extra thick type |
900 |
25-38 |
178 |
150 |
118-163 |
75 |
9980 |
2656×1636×2241 |
|
3'FT |
PSGD-0904 |
Short head thin type |
900 |
3-13 |
41 |
35 |
27-90 |
75 |
10530 |
2656×1636×2241 |
|
3'FT |
PSGD-0906 |
Short head medium |
900 |
3-16 |
76 |
65 |
27-100 |
75 |
10530 |
2656×1636×2241 |
|
3'FT |
PSGD-0907 |
Short head thick type |
900 |
6-19 |
102 |
85 |
59-129 |
75 |
10530 |
2656×1636×2241 |
|
4.25'FT |
PSGB-1313 |
Standard fine type |
1295 |
13-31 |
137 |
115 |
109-181 |
160 |
22460 |
2983×1866×3156 |
|
4.25'FT |
PSGB-1321 |
Standard medium size |
1295 |
16-38 |
210 |
178 |
132-253 |
160 |
22460 |
2983×1866×3156 |
|
4.25'FT |
PSGB-1324 |
Standard coarse shape |
1295 |
19-51 |
241 |
205 |
172-349 |
160 |
22460 |
2983×1866×3156 |
|
4.25'FT |
PSGB-1325 |
Standard extra thick type |
1295 |
25-51 |
259 |
220 |
236-358 |
160 |
22460 |
2983×1866×3156 |
|
4.25'FT |
PSGD-1306 |
Short head thin type |
1295 |
3-16 |
64 |
54 |
36-163 |
160 |
22590 |
2983×1866×3156 |
|
4.25'FT |
PSGD-1308 |
Short head medium |
1295 |
6-16 |
89 |
76 |
82-163 |
160 |
22590 |
2983×1866×3156 |
|
4.25'FT |
PSGD-1310 |
Short head thick type |
1295 |
8-25 |
105 |
89 |
109-227 |
160 |
22590 |
2983×1866×3156 |
|
4.25'FT |
PSGD-1313 |
Short head extra thick type |
1295 |
16-25 |
133 |
113 |
209-236 |
160 |
22590 |
2983×1866×3156 |
|
5.5'FT |
PSGB-1620 |
Standard fine type |
1676 |
16-38 |
209 |
178 |
181-327 |
250 |
43270 |
3941×2954×3771 |
|
5.5'FT |
PSGB-1624 |
Standard medium size |
1676 |
22-51 |
241 |
205 |
258-417 |
250 |
43270 |
3941×2954×3771 |
|
5.5'FT |
PSGB-1626 |
Standard coarse shape |
1676 |
25-64 |
269 |
228 |
299-635 |
250 |
43270 |
3941×2954×3771 |
|
5.5'FT |
PSGB-1636 |
Standard extra thick type |
1676 |
38-64 |
368 |
313 |
431-630 |
250 |
43270 |
3941×2954×3771 |
|
5.5'FT |
PSGD-1607 |
Short head thin type |
1676 |
5-13 |
70 |
60 |
90-209 |
250 |
43870 |
3941×2954×3771 |
|
5.5'FT |
PSGD-1608 |
Short head medium |
1676 |
6-19 |
89 |
76 |
136-281 |
250 |
43870 |
3941×2954×3771 |
|
5.5'FT |
PSGD-1613 |
Short head thick type |
1676 |
10-25 |
133 |
113 |
190-336 |
250 |
43870 |
3941×2954×3771 |
|
5.5'FT |
PSGD-1614 |
Short head extra thick type |
1676 |
13-25 |
133 |
113 |
253-336 |
250 |
43870 |
3941×2954×3771 |
|
7'FT |
PSGB-2127 |
Standard fine type |
2134 |
19-38 |
278 |
236 |
544-1034 |
400 |
86730 |
4613×3302×4638 |
|
7'FT |
PSGB-2133 |
Standard medium size |
2134 |
25-51 |
334 |
284 |
862-1424 |
400 |
86730 |
4613×3302×4638 |
|
7'FT |
PSGB-2136 |
Standard coarse shape |
2134 |
31-64 |
369 |
314 |
1125-1814 |
400 |
86730 |
4613×3302×4638 |
|
7'FT |
PSGB-2146 |
Standard extra thick type |
2134 |
38-64 |
460 |
391 |
1252-1941 |
400 |
86730 |
4613×3302×4638 |
|
7'FT |
PSGD-2110 |
Short head thin type |
2134 |
5-16 |
105 |
89 |
218-463 |
400 |
89500 |
4613×3302×4638 |
|
7'FT |
PSGD-2113 |
Short head medium |
2134 |
10-19 |
133 |
113 |
404-580 |
400 |
89500 |
4613×3302×4638 |
|
7'FT |
PSGD-2117 |
Short head thick type |
2134 |
13-25 |
178 |
151 |
517-680 |
400 |
89500 |
4613×3302×4638 |
|
7'FT |
PSGD-2120 |
Short head extra thick type |
2134 |
16-25 |
203 |
172 |
580-744 |
400 |
89500 |
4613×3302×4638 |
