| Product Name: | Concrete Mixer | Mixer Model: | JS350 Mixer |
|---|---|---|---|
| Discharge Capacity: | 350L | Boost Motor Power: | 45 |
| Stirring Time: | 35-45 | Pump Motor Power: | 0.75 |
| Classification: | Cement Plant Equipments | Warranty: | 12 Months |
| High Light: | js series cement concrete mixer machine,350l cement concrete mixer machine,js350 concrete mixer |
||

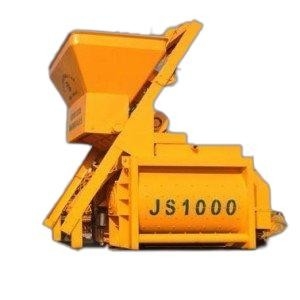

Cement Plant Equipments Js Series Concrete Mixer With Discharge Capacity 350L
1.JS series concrete mixer application scope(Cement Plant Equipments)
The forced concrete mixer is suitable for mixing dry hard concrete, fluid concrete, lightweight aggregate concrete and various mortars in all kinds of prefabricated parts factories and industrial and civil construction departments such as water conservancy, roads and Bridges. It can not only work well, but also synthesize simple mixing station with corresponding batching unit. The machine has the characteristics of reasonable structure, good mixing quality, short time, low energy consumption, low noise and so on. Lining plate and stirring blade are made of high hardness, high toughness wear-resistant alloy cast steel, long service life. The main parts of the electrical control system are imported components, excellent performance and high reliability.
2.JS series concrete mixer product parameters(Cement Plant Equipments)
| Mixer model | JS350 Mixer | JS500 Mixer | JS750 Mixer | JS1000 Mixer | JS1500 Mixer |
| Discharge capacity | 350L | 500L | 750L | 1000L | 1500L |
| Feed capacity | 560L | 800L | 1200L | 1600L | 2400L |
| Stirring time | 35-45 | 35-45 | 35-45 | 35-45 | 65-45 |
| Rated productivity | 17.5-21 | 25-30 | 37-45 | >50 | 65-75 |
| Main motor power | 15 | 18.5 | 30 | 2*18.5 | 2*30 |
| Boost motor power | 45 | 5.5 | 7.5 | 18.5 | 22 |
| Pump motor power | 0.75 | 1.1 | 1.1 | 3 | 3 |
| Large particle size of aggregate | 60/80 | 60/80 | 60/80 | 60/80 | 60/80 |
| Overall dimensions (L * W * H) | 2580*2791*2151 | 2789*3003*2151 | 3636*2805*2630 | 4500*2400*2165 | 5200*2480*3150 |
| Working condition (L * W * H) | 4448*2797*5634 | 4448*3003*5634 | 4950*3636*6260 | 9500*3800*8605 | 11700*3880*9010 |
| Machine weight | 3780 | 4100 | 6400 | 11000 | 12000 |

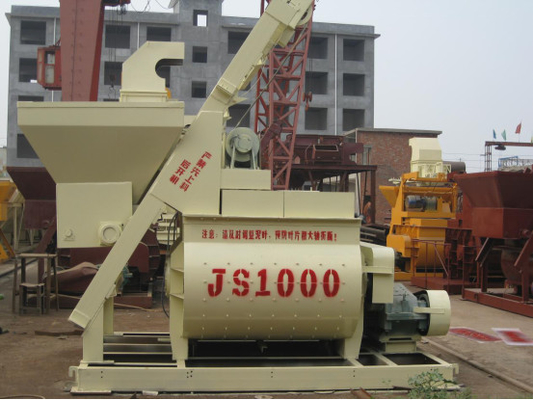

Cement Plant Equipments Js Series Concrete Mixer With Discharge Capacity 350L
Cement Plant Equipments Js Series Concrete Mixer With Discharge Capacity 350L
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
