Ultra-Fine Grinding Mill With Long Life High Pressure And High Fine Powder Content
Ultra-fine grinding mill is a kind of equipment used for high-fineness grinding processing. It is suitable for various materials such as barite, calcite, potassium feldspar, etc. The finished product particle size range is 400-1350 mesh, and some materials can reach up to 2500 mesh.
Working Principle
Material enters the main unit through the feed hopper. High-pressure springs and centrifugal force cause the grinding rollers to roll against the grinding rings, crushing the material.
The crushed material is sorted by an analyzer. Powders with acceptable fineness enter the cyclone collector as the finished product, while the coarse powder returns to the main unit for re-grinding.
Centrifugal ultrafine grinding mill (also known as an ultrafine mill) is an ultrafine grinding device that can replace a Raymond mill, producing ultrafine powders smoothly. The fineness can be adjusted between 80 and 1500 mesh.
Features of Luoyang Zhongtai Industrial's Centrifugal Ultrafine Grinding Mill:
1. Low noise and vibration;
2. High pressure, producing high amounts of fine powder;
3. Uniform wear of the grinding ring and roller, resulting in a long service life 3-5 times that of an ordinary Raymond mill;
4. Suitable for processing hard materials;
5. Low iron content in the fine powder;
6. Continuous operation without affecting the oiling of the roller bearing chamber;
7. Low power consumption, high efficiency, and easy installation and maintenance;
8. No scraper feed within the mill, resulting in a low failure rate.
Applications of the Centrifugal Ultrafine Grinding Mill
This mill is primarily suitable for finely grinding minerals with a hardness of 9.3 or less and a moisture content of 6% or less, such as barite, calcite, limestone, kaolin, bentonite, marble, gypsum, refractory materials, quartz, glass, and ceramics. The particle size can be adjusted between 80 and 1500 mesh.

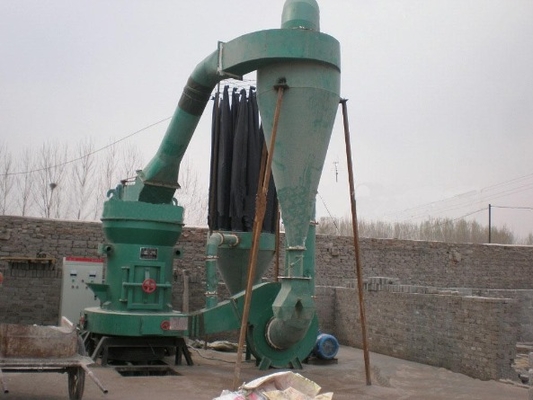

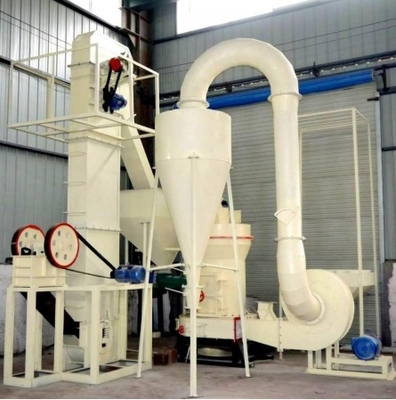

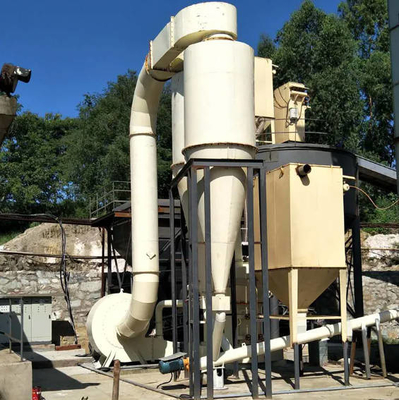

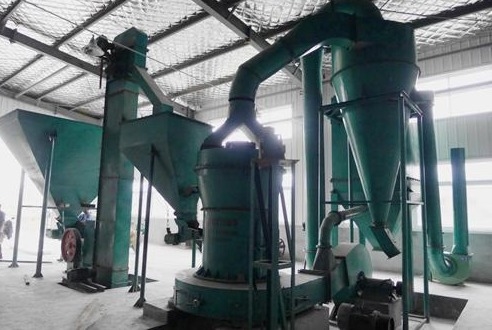

Product Display Of Ore Grinding Mill
Technical Parameters of Ore Grinding Mill
| Model |
LXM820 |
LXM1120 |
LXM1300 |
LXM1550 |
LXM1700 |
LXM1900 |
LXM2200 |
LXM2300 |
| Grinding disc diameter (mm) |
820 |
1120 |
1300 |
1550 |
1700 |
1900 |
2200 |
2300 |
| Production capacity(t/h) |
1~5 |
6~10 |
16~20 |
22~28 |
30~38 |
36~43 |
70~90 |
95~115 |
| Particle size of material entering the mill(mm) |
0~25 |
0~30 |
0~35 |
0~45 |
0~50 |
0~55 |
0~60 |
0~65 |
| Product Moisture(%) |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
| Total motor power(kw) |
55 |
110 |
220 |
315 |
400 |
500 |
710 |
800 |
| Equipment weight(t) |
16 |
27 |
45 |
75 |
90 |
115 |
160 |
|
|
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
