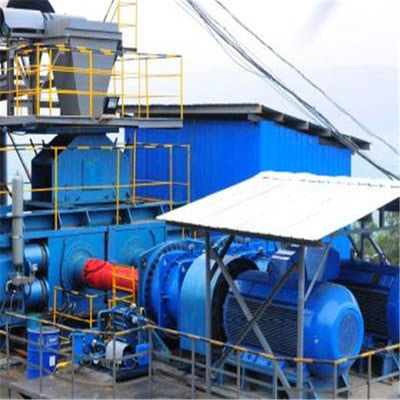

High Pressure Shaft Flexible 315 T Roller Mill and roller press

High Pressure Shaft Flexible 315 T Roller  Mill and roller press
High Pressure Shaft Flexible 315 T Roller  Mill and roller press High Pressure Shaft Flexible 315 T Roller  Mill and roller press High Pressure Shaft Flexible 315 T Roller  Mill and roller press High Pressure Shaft Flexible 315 T Roller  Mill and roller press

Large Image :  High Pressure Shaft Flexible 315 T Roller Mill and roller press

Product Details:
Place of Origin: Henan, China
Brand Name: ZTIC
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $10,000.00
Packaging Details: Export standard container
Supply Ability: 1000 Set/Sets per Year
Detailed Product Description
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Energy & Mining Condition: New
Type: Cement & Mine Roller Press Application: Cement &Mine Roller Press
Motor Type: AC Motor Capacity(t/h): 50-1450 Tph
Dimension(L*W*H): Cement &Mine Roller Press Weight: 33-315 T
Warranty: 1 YEAR After-sales Service Provided: Video Technical Support, Online Support, Engineers Available To Service Machinery Overseas
Roller Press: Cement Roller Press Feed Size Mm: 25/40
Output Size Mm: <2mm 65% <0.08mm 25% Production Capacity: 50-1450 Tph Cement Roller Press
Roller Presses Rollers, Surfaces: Reduced Wear By Autogenous Wear Protection. Weighet: 33-315 T
Cement Roller Press: HPGR 100-30 To HPGR210-180 Mine Roller Press: GM 52-20 To GM 200-180
Grinding Rolls: The Surface With Hard-alloy Studs Port: QingDao,ShangHai,TianJin
High Light:

315 T Roller Ball Mill

,

315 T Mining Ball Mill

Cement Roller Press High Pressure Grinding Roll
Product Description

HPGR|Roller Press Technical parameters:

Model
Rolle DIA
mm
Roll width
(mm)
Main motor
(mm)
Feed Size
mm
Output Size
mm
Production capacity t/h
Weighet/t
Size mm
L
W
H
RP1003
Φ1000
300
160*2
25/40
<2mm
65%
<0.08mm
25%
50-70
33
3835
4510
1885
RP1004
400
200*2
25/40
65-90
36
4080
4600
1920
RP1006
630
315×2
25/40
105-145
55
4526
5280
2200
RP1204
Φ1200
450
220×2
30/50
95-130
62
5500
4470
2340
RP1205
500
250×2
30/50
140-165
64
5550
4620
2390
RP1208
800
455×2
30/50
180-230
90
5608
5500
2460
RP1406
Φ1400
650
455×2
35/60
225-290
104
7205
5440
2610
RP1408
800
500×2
35/60
283-362
125
7400
5780
2610
RP1410
1000
630×2
35/60
420-460
135
6400
8990
3000
RP1509
Φ1500
900
710×2
35/60
340-460
163
6610
8860
3490
RP1614
Φ1600
1400
1000×2
35/60
650-750
190
7000
9320
3980
RP1714
Φ1700
1400
1250×2
40/70
710-830
240
7230
9420
4100
RP1816
Φ1800
1600
1600×2
45/80
800-1000
278
8000
11100
4550
RP2018 Φ2000 1800 2000x2     1250-1450

Roller Press: Cement Roller Press and Mine Roller Press

CITIC IC has a full range of Cement Roller Pres -High Pressure Grinding Rolls (HPGR) with an operating base of more than 165 units ranging from HPGR120-50 to HPGR240-180 Cement Roller Pres . Our fully equipped laboratory has a HPGR50-20 Cement Roller Pres to undertake any necessary test work.

CITIC Roller Presses

Cement Roller Press-HPGR:CITIC  has a full range of High Pressure Grinding Rolls (HPGR) with an operating base of more than 165 units ranging from HPGR 100-30 to HPGR210-180 Cement Roller Press.
 Mine Roller Press:GM series Mine Roller Press from GM 52-20 to GM 200-180,Our fully equipped laboratory has a HPGR50-20 to undertake any necessary test work.

High Pressure Grinding( Roller Presses )

 With our Roller Presses, the grinding pressure is transferred from the hydraulic system via the movable roll to the material bed and absorbed in a stable, closed machine frame. A key feature is the mounting of the rollers in oillubricated cylindrical roller bearings. The oil is both, lubricant and cooling agent. Alternatively, grease lubrication is possible. Power transmission from the electric motors is effected via cardan shaft, fluid or safe set coupling and clamping disc fitted gear boxes, usually of planetary design. Depending on the application, the rollers are either one piece solid construction or shaft and tire design with suitable wear protection for almost all applications in the cement and minerals industry.

 High Pressure Grinding Rolls (HPGR)
CITIC HIC designs and manufactures a range of HPGRs to suit the cement and mineral processing industries. Our HPGR designs range from 120-50 (2 x 355kW) to 240 -180 (2 x 3150kW).
Standard features include:

Constant setting and pressure control

Autogenous wear protection of rolls ensuring improved wear life

Structurally sound welded frame verified using FEA complying to strictest design codes

Dual planetary reducer drive system

Four cylindrical roller bearings design

PLC control system complete with operator panel

‘HPGR Enhancement Package’ which includes the complete HPGR control system, temperature and vibration monitoring and other options to increase equipment availability

 Product advantage:

  • 1. The press roller surface adopts hard alloy stud setting-in structure to increase the life time of the roller sleeve
    2. Universal coupling-planetary retarder-press roller to consist of shaft flexible drive system
    3. Compound structure of non-contact sealing and contact sealing are adopted at the side of the press roller
    4. Unique ellipse structure is used for the feeding pipe to make the feeding process smooth
    5. Oil spray lubrication system is used for the lubrication of the main bearing
    6. The main bearing adopts inner passage fully-sealing structure for cooling
    7. The hard alloy welding press roller surface or setting-in surface are available depending on the user’s need.

    Applicable scope

    1. Applicable for the mineral processing industry; it can be installed before the ball mill as pre-milling equipment or consist of mixing grinding system with ball mill.
    2. Applicable for oxide pellet industry instead of the common used damp mill.
    3. Applicable for building material and fire-proof material industry; successful application for the grinding of clinker, limestone and bauxite.

Always up to expectations.

The CITICIC Roller Press is available in eight standard sizes ranging in grinding force from 2 to 20 meganewtons. CITIC Roller Presses offer a reliable solution for every application for grinding cement, slag, raw material or for special applications, such as preparation of ore.



A driving force: reasonably stressed.

The drive power is transferred to the grinding rollers via multi-stage planetary gearboxes with first stage spur gears. The gearboxes are mounted on the drive end of the roller shaft using a hydraulic shrink coupling.. A V-belt drive can be used for drives of up to approx. 400kW per motor. Drives above 400kW are equipped with fluid or safe set coupling and cardan shaft.

A framework you'll work better with.

The machine frame has identical upper and lower tiebars. Rubber pads are placed between the roller bearing blocks and the frame ends. The rubber pads act as an articulated joint and have a vibration damping effect. The RPS-type as a special type reduces maintenance time during roller changes. The doors in the roll cover permit rapid and wide access to the rollers for inspection and maintenance.



Roller Presses: roller support

A question of the right bearings.

Roller Press rolls and bearings.

In CITTIC Roller Presses, the rollers are supported in radial, multi-row cylindrical roller bearings. This ensures an even load distribution on the roller bearing, substantially increasing the life of the bearing.

Additional long life design features of CITIC Roller Presses include:

  • Generously sized bearing load factor
  • Continuous feeding of filtered lubrication oil
  • Bearings cooled by the lubrication oil for low bearing temperature
  • Bearing sealing with fixed radial shaft sealings arranged back to back
  • Additional permanently greased labyrinth with V- ring and separate dust
  • labyrinth on the inner side of the bearings.

Oil lubricated roller bearings are standard with all CITIC Roller Presses. All contact points on the cylindrical roller bearing are supplied evenly with lubrication. Operating cost can be further reduced by checking the state of lubricant regularly (alternative grease lubrication).



Roller Presses: rollers, surfaces

Reduced wear by autogenous wear protection.

Grinding Rolls

CITICIC Roller Presses offer rollers with appropriate wear protection for almost all applications in the cement and minerals industry. The two-part roller consisting of shaft and tire allows for economical surface replacement, single part rollers are used for high temperature grinding:

  • Multi-layer welding enables long running times without stoppages.
  • The complete hard face welded surface is used for feed material of normal wear characteristic. Surface repair can be carried out quickly.
  • The surface with hard-alloy studs is used for extremely abrasive materials.
  High Pressure Shaft Flexible 315 T Roller  Mill and roller press 0
Our Services

Aftersales service

LUOYANG ZHONGTAI INDUSTRIES able to provide:

1. ENGINEERED SPARES - DESIGN AND MANUFACTURING

2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES

3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES

5. PREVENTATIVE MAINTENANCE PROGRAMS

6. PREVETATIVE MAINTENANCE SERVICES

7. COMPREHENSIVE MAINTENANCE PROGRAMS

LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands.

Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.

LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

     2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged      parts

     3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.



Q:Delivery time

A: parts lead time 1-2months, machines 2-3months.



Q:Payment terms

A: Accept payment type: T/T, L/C, Western union,Cash.

30% deposit when signed contract. Full payment paid before shipping



Q: Quality warranty?

A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.



Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.
