Complete Production Line Laterite Nickel Furnace Calcination Rotary Kiln

Large Image : Complete Production Line Laterite Nickel Furnace Calcination Rotary Kiln

Product Details:

Place of Origin:	Henan, China
Brand Name:	ZTIC
Certification:	ISO\CE
Model Number:	Cement Rotary Kiln

Payment & Shipping Terms:

Minimum Order Quantity:	>=1 Sets
Price:	$20,000.00
Packaging Details:	Standard packing or according to customer's requirement
Payment Terms:	L/C, T/T
Supply Ability:	500 Set/Sets per Year rotary kiln

Contact Now

Detailed Product Description

Warranty:	1 YEAR	Applicable Industries:	Manufacturing Plant, Construction Works , Energy & Mining
After Warranty Service:	Video Technical Support, Online Support	Classification:	Cement Rotary Kiln
After-sales Service Provided:	Online Support, Field Installation, Commissioning And Training	Weight:	1648 T
Color:	Support Customized	Output:	80-100 T/H(roasted Sand)
Power Consumption:	650kWh/t	Port:	QingDao
Highlight:	100 T/H Cement Rotary Kiln , 650 kWh/t Cement Rotary Kiln , Dry Process Cement Rotary Kiln

Complete Production Line laterite nickel furnace calcination rotary kiln

Product Description

Description of Lateritic Nickel Rotary Kiln:

The rotary kiln is the core equipment in laterite nickel ore smelting, mainly used in the RKEF (rotary kiln-electric furnace) process. It processes the ore through drying, roasting, and reduction steps to produce nickel-iron alloys for smelting in the electric arc furnace.

LUOYANG ZHONGTAI Lateritic Nickel Rotary Kiln technical characteristics:
♦ Kiln body is made of high quality composed of carbon steel or alloy steel plate and automatic welding;
♦ Tyre,Support Roller,Open gear adopts alloy cast steel;
♦ Sliding bearing with large gap not scraping tile bearing;
♦ Transmission device adopts hard tooth surface reducer, flexible diaphragm coupling, dc motor;
♦ Adopts hydraulic gear wheel;
♦ Preheater scales were used respectively to veiw of kiln head, and cylinder pressure tight seal;
♦ A slow drive device.

Technical specifications of Cement Rotary Kiln

Name	laterite nickel furnace calcination rotary kiln
Equipment name	Rotary kiln
Specification	Φ5.5×115m
Application	Roasting laterite ores
Amount	1Set
Output	80-100(roasted sand)t/h
Driving mode	Double driving
Type of thrust roller	Hydraulic thrust roller
No. of support	4
Slope ( sine)	3.0%
Driving mode	Bilateral double-driving
Main driving	0.2~1.2r/min
Auxiliary driving	6.7r/h
Sealing mode of kiln head	Sheet steel (provisional)
Sealing mode of kiln end	Air cylinder
Cooling of kiln head	Air cooling
Rotating direction	Clockwise (from discharging end)
Total weight	1648 ( excluding feed and discharge cover)t
Temperature of discharged materials	750~850°C
Temperature of waste gases	200~400°C
Thickness of refractory bricks	230mm

Cement Rotary Kiln

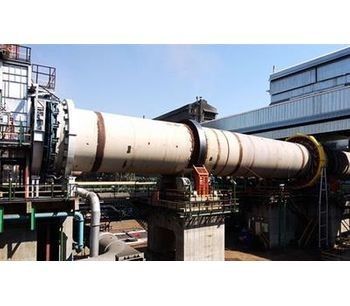

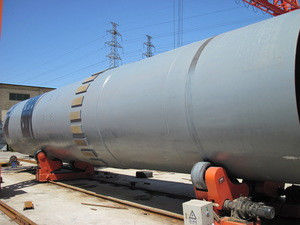

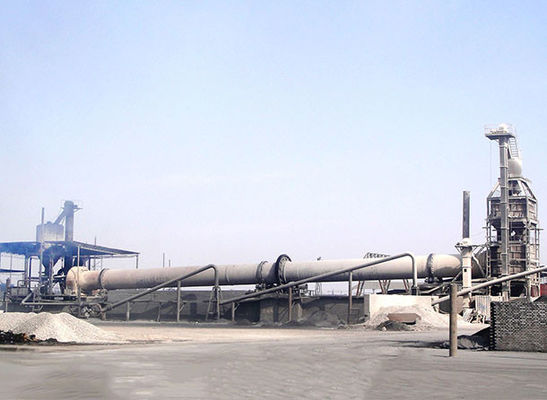

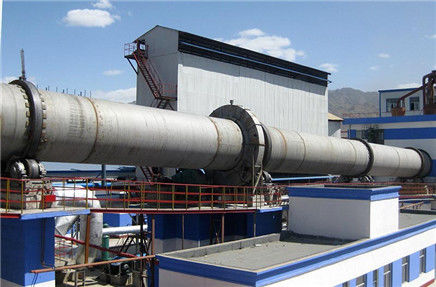

Product Display of Cement Rotary Kiln

Complete Production Line Laterite Nickel Furnace Calcination Rotary Kiln 0

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
