Cement Rotary Kiln And Gypsum Rotary Kiln With 500-800tpd Capacity

Cement Rotary Kiln And Gypsum Rotary Kiln With 500-800tpd Capacity
Cement Rotary Kiln And Gypsum Rotary Kiln With 500-800tpd Capacity Cement Rotary Kiln And Gypsum Rotary Kiln With 500-800tpd Capacity Cement Rotary Kiln And Gypsum Rotary Kiln With 500-800tpd Capacity Cement Rotary Kiln And Gypsum Rotary Kiln With 500-800tpd Capacity Cement Rotary Kiln And Gypsum Rotary Kiln With 500-800tpd Capacity

Large Image :  Cement Rotary Kiln And Gypsum Rotary Kiln With 500-800tpd Capacity

Product Details:
Place of Origin: Henan, China
Brand Name: CITIC IC
Certification: ISO/CE
Model Number: Cement Rotary Kiln
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $100,000.00
Packaging Details: Standard packing or according to customer's requirement
Supply Ability: 5000 Set/Sets per Year
Contact Now
Detailed Product Description
Applicable Industries: Manufacturing Plant, Construction Works , Energy & Mining After Warranty Service: Video Technical Support, Online Support
Local Service Location: Viet Nam, Indonesia, Australia, Argentina Showroom Location: None
Condition: New Voltage: Rotary Kiln
Power(W): 800-20000KW Dimension(L*W*H): 2.5x40--6.0x9.5 M
After-sales Service Provided: Online Support, Field Installation, Commissioning And Training, Video Technical Support Key Selling Points: Long Service Life
Product Name: Cement Rotary Kiln Burner/Gypsum Rotary Kiln Appliciation Industry: Cement Plant
Output: 180~12000 T/d Chemical Industry Rotary Kiln MOQ: 1
Production Capacity: 300-10000 Ton/day Warranty: 12 Months
Port: QingDao,TianJin,ShangHai
High Light:

Bauxite Rotary Lime Kiln

,

Titanium Dioxide Rotary Kiln

,

200m Gypsum Cement Rotary Kiln

Products Description

Cement Rotary Kiln Burner/Gypsum Rotary Kiln

With the arrival of rotary kilns, cement manufacturing processes became sharply defined according to the form in which the raw materials are fed to the kiln. Raw materials were either ground with addition of water, to form a slurry containing typically 30-45% water, or they were ground dry, to form a powder or "raw meal".

China supplier Factory direct sales rotary kiln
Product specifications(m) Kiln dimensions Capacity(t/d) Rotation speed(r/min) Motor power(kw) Total weight(t)
Diameter(m) Length(m) Obliquity(%)
Φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61
Φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37
Φ2.5×54 2.5 54 3.5 204 0.48-1.45 55 196.29
Φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5
Φ2.8×44 2.8 44 3.5 400 0.437-2.18 55 201.58
Φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94
Φ3.0×48 3 48 3.5 700 0.6-3.48 100 237
Φ3.0×60 3 60 3.5 800 0.3-2 100 310
Φ3.2×50 3.2 50 4 1000 0.6-3 125 278
Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283
Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363
Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419
Φ4.0×56 4 56 4 2300 0.41-4.07 315 456
Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510
Φ4.2×60 4.2 60 4 2750 0.4-3.98 375 633
Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583
Φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4
Φ4.7×74 4.7 74 4 4500 0.35-4 630 849
Φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899
Φ5.0×74 5 74 4 6000 0.35-4 710 944
Φ5.6×87 5.6 87 4 8000 Max4.23 800 1265
Φ6.0×95 6 95 4 10000 Max5 950×2 1659



Cement Rotary Kiln Burner/Gypsum Rotary Kiln technical characteristics:
♦ Kiln body is made of high quality composed of carbon steel or alloy steel plate and automatic welding;
♦ Tyre,Support Roller,Open gear adopts alloy cast steel;
♦ Sliding bearing with large gap not scraping tile bearing;
♦ Transmission device adopts hard tooth surface reducer, flexible diaphragm coupling, dc motor;
♦ Adopts hydraulic gear wheel;
♦ Preheater scales were used respectively to veiw of kiln head, and cylinder pressure tight seal;
♦ A slow drive device.



In the Wet Process, the kiln system is fed with liquid slurry, the water then being evaporated in the kiln.
In the Semi-Wet Process, raw material is prepared as a slurry, but a substantial proportion (50-80%) of the water is mechanically removed, usually by filtration, and the resulting "filter cake" is fed to the kiln system.
In the Dry Process, the kiln system is fed with dry raw meal powder.
In the Semi-Dry Process, a limited amount of water (10-15%) is added to dry raw meal so that it can be nodulised, and the damp nodules are fed to the kiln system.

The original rotary cement kilns were called 'wet process' kilns. In their basic form they were relatively simple compared with
modern developments. The raw meal was supplied
at ambient temperature in the form of a slurry.
A wet process kiln may be up to 200m long and 6m in diameter. It has to be long because a lot of water has to be evaporated and the process of heat transfer is not very efficient.

The slurry may contain about 40% water. This takes a lot of energy to evaporate and various developments of the wet process were aimed at reducing the water content of the raw meal. An example of this is the 'filter press' (imagine a musical accordion 10-20 metres long and several metres across) -such adaptions were described as 'semi-wet' processes.
The wet process has survived for over a century because many raw materials are suited to blending as a slurry. Also, for many years, it was technically difficult to get dry powders to blend adequately.

In a modern works, the blended raw material enters the kiln via the pre-heater tower. Here, hot gases from the kiln, and probably the cooled clinker at the far end of the kiln, are used to heat the raw meal. As a result, the raw meal is already hot before it enters the kiln.The dry process is much more thermally efficient than the wet process.

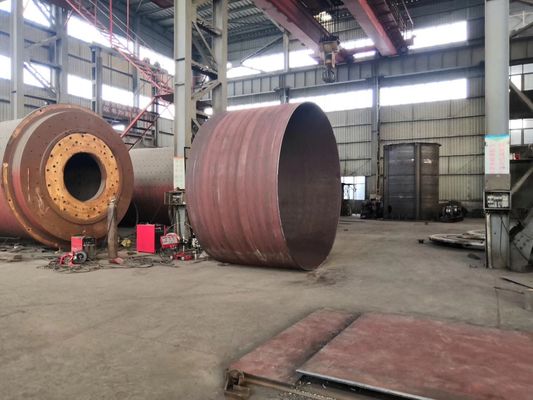

Cement Rotary Kiln And Gypsum Rotary Kiln With 500-800tpd Capacity 0Cement Rotary Kiln And Gypsum Rotary Kiln With 500-800tpd Capacity 1
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd: A: 1. More than 30 years experience. 2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts. 3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates. Q:Delivery time A: parts lead time 1-2months, machines 2-3months. Q:Payment terms A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping Q: Quality warranty? A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply. Q: After sales service? A: we can supply technical guide for machines running test and parts maintenance if end user needs.
