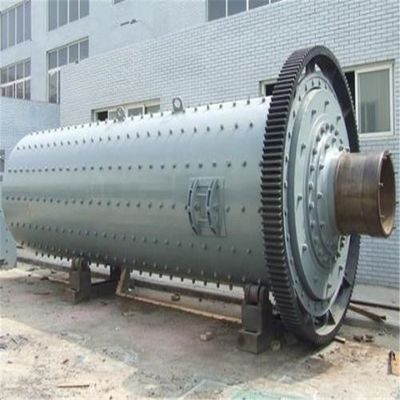

ISO CE No Dust Pollution Ball Mill Shell CITIC HIC Machine Parts

ISO CE No Dust Pollution Ball Mill Shell CITIC HIC Machine Parts
ISO CE No Dust Pollution Ball Mill Shell CITIC HIC Machine Parts ISO CE No Dust Pollution Ball Mill Shell CITIC HIC Machine Parts ISO CE No Dust Pollution Ball Mill Shell CITIC HIC Machine Parts ISO CE No Dust Pollution Ball Mill Shell CITIC HIC Machine Parts

Large Image :  ISO CE No Dust Pollution Ball Mill Shell CITIC HIC Machine Parts

Product Details:
Place of Origin: Henan, China
Brand Name: CITIC LK
Certification: ISO CE
Model Number: CITIC HIC Machine Parts
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $3,000.00
Packaging Details: Standard packing or according to customer's requirement
Supply Ability: 1000 Set/Sets per Year
Contact Now
Detailed Product Description
Applicable Industries: Manufacturing Plant, Construction Works , Energy & Mining Condition: New
Type: Ball Mill Motor Type: AC Motor
Capacity(t/h): 13-110 Tph Dimension(L*W*H): 23200x11054x6370 Mm
Weight: 310 T Warranty: 1 YEAR
After-sales Service Provided: Video Technical Support, Online Support, Field Maintenance And Repair Service Feeding Size (mm): <25
Port: QingDao,ShangHai,TianJin
High Light:

310 T Ball Mill Shell

,

110 Tph cement ball mill

,

barrel mineral separation ball mill



Product Description



CITIC IC barrel mineral separation ball mill



CITIC IC cement Ball Mill & Cement grinding mill  Technical parameters
NO Model (m) Production capacity    t/h Speed r/min Feed  in size
 mm

Medium load

T

 Effective volume Main motor Size Weight  (T)
Power  kw Voltage  V L W H
1 Φ2.2×6.5 13-14 22 <25 31 21.4 380 6000 12385 5390 4210 53
2 Φ2.2×11 15-16 21 <25 50 36 630 6000 21559 4540 3520 109
3 Φ2.2×13 16-18 21.5 <25 60 43 630 6000 26079 4540 3520 114.2
4 Φ2.4×8 15 20.8 <25 45 30 560 6000 17215 5564 4540 82.53
5 Φ2.4×13 20-23 19 <25 65 51.7 800 6000 27580 4540 3620 138
6 Φ2.6×13 30-32 19.6 <25 80 60 1000 6000 20883 7740 5670 144.5
7 Φ3×9 28-32 17.8 <25 70-80 55 1000 6000 23568 4760 3670 138.7
8 Φ3×11 36-40 18.9 <25 100 69 1250 6000 27610 5720 4080 181.9
9 Φ3×11 36 17.69 <25 100 69 1250 6000 24567 7510 5968 156.5
10 Φ3.2×11 40-45 17.4 <15 90-100 78 1250 6000 28000 5720 3672 180
11 Φ3.5×9.5 40 18 <20 115 76.4 1400 6000 29717 5250 5000 194.4
12 Φ3.5×11 45 17.2 <15 116 78.5 1600 6000 28454 5350 5600 271.64
13 Φ3.6×8.5 60 16.5 <20 102 86 2500 6000 19693 4141 5404.5 233.3*
14 Φ3.8×9 70-80 16.5 <20 130 94 2000 6000 28521 5550 5600 255.2
15 Φ3.8×12.5 55 16.4 <25 167 123.5 2500 6000 17419 10745 8204 301.4
16 Φ3.8×13 60 16.3 <25 173 128 2500 6000 19693* 4141* 5404.5 223.3*
17 Φ4.2×11 120 15.75 ≤3 80%pass 182 134.5 2800   18500 4400 6500 256**
18 Φ4.2×11.5 130 15.99 ≤3 80%pass 199 138 2800 10000 18002 8962 7520 219**
19 Φ4.2×11.5 130 16 ≤3 80%pass 199 138 2800   17259 4960 5600 220**
20 Φ4.2×12.5 85 16 ≤25 90% 210 151 3150   18400 4960 8640 251**
21 Φ4.2×12.5 145 16 ≤3 80% 210 151 3150   18400 4960 8640 242**
22 Φ4.2×13 75 15.6 ≤25 90% 209 157 3150   174450 4880 8000 255**
23 Φ4.2×13 150 15.6 ≤3 80% 209 157 3150   17445 4880 8000 256**
24 Φ4.2×13.5 80-85 15.8 ≤25 90% 230 164 3550   17744 6700 6010 256**
25 Φ4.2×14 95 15.6 ≤25 90% 252 169 3550   19055 20490 23200 220**
26 Φ4.2×14.5 95 15.8 ≤25 80% 250 178 4000   5050 6700 11054 278**
27 Φ4.6×14 95-110 15   285 185 4200 6000 23200 11054 6370 310**



Model: Φ2.2×6.5~ Φ4.6×14m
Capacity:13-110 tph

CITICIC has produced  cement ball mills fitting the requirement of cement industrial development with cement design institutes in Tianjin, Nanjing and Hefei for dozens of years. Our large cement ball mills have been sold in many domestic cement manufacturers, and exported to Vietnam, Indonesia, Rwanda and other countries. We have first-rate cement Ball mill research and design team, perfect test and inspection means and excellent large Cement Ball Mill manufacturing equipment and manufacturing technology, and have formed a complete Cement Ball Mill experimental research, design, manufacture, detection and service system.


Cement Ball mill is mainly used to grind the clinker and raw materials in cement industry and also can be applied in metallurgy, chemical, electric power and other industries to grind all kinds of ores.  Cement ball mill is not only suitable for over-flow grinding, but also applicable for cyclic close-flow grinding together with powder collector.
Cement ball mill  is an efficient tool for fine powder grinding. The  Cement ball mill is used to grind many kinds of mine and other materials, or to select the mine.  Cement ball mill is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine.

CITICIC Cement ball mill Feature:
(1) The cylindrical mill adopts the driving type edge-driving, center-driving, edge-driving with multi-point meshing, etc; driven by asynchronous motor +reducer +pinion and gear as well as synchronous motor +
air lclutch + pinion and gear.
(2) Generally supported by static-dynamic pressure bearing on both ends. Fuuly closed self-aligning 120º osculation rocker bearing is used. Also single or double slipper staic- dynamic bearings can be used. The bush is made by NC machine.
(3) The large open gear is designed using AGMA standard, Equipped with reliably sealed gear housing and grease ahtomatic spraying lubrication system.
 The shell is key part of a mill. Carry out finite element analysis on it with computer to ensure the reliable operation;
(4) The shell is automatically welded, ultrasonic inspected, wholly annealed and machined by large special machine tools on one chucking; there special seal on static-dynamic connection parts , ch as feed and discharge hoper, trunnion, etc, to prevent oil and slurry leakage;
(5) The liner is of wear-resistance material mad by our company, wich has been specially heat-treated, with high hardness and long service life. Also other wear-resistance casting or rubber liner can be used;
(6) There are slow speed drive for medium and large mill;
(7) The high and low pressure lubricating station is equipped for medium and large mill;
(8) The control and protection system is controlled by PLC. technical advantages

1. High capacity and Low consumption: the capacity of SCM series super-micro mill, compared with that of jet mill and mixing mill, has been improved by 40% under the same final fineness and electric power.
2. High fineness and Flexible adjustment: the final fineness can be adjusted from 325 meshes to 2500 meshes according to the requirements, and the fineness can reach D97≤5um.
3. Trustworthy security: there is no rolling bearing and bolt in the mill chamber, therefore, the bearing and sealing elements will not wear out easily, and the bolts will not loose to make damage to the equipment.
4. Clean and environment-friendly: equipped with the pulse filter and sound absorber, the mill reaches the environment-friendly standard of our country and reduces the dust and noise greatly.
Cement Ball mill working principle

Cement Ball mill Main feature and working principle
Cement Ball mill Main feature
This mill is center driven, which adopts slipper bearing support, new type combination design baffle plates and discharge grate, to raise crushing, grinding and screening efficiency.

Working principle
The material is fed into the rough grinding bin through the feeding device; then crushed under the impact and grinding of grinding agent (steel ballwith longer diameter), and the finer material enter into the fine grinding bin through double layered baffle plates and other material which can not enter into the fine grinding bin will continue be crushed in the rough grinding bin; the material which enter into fine grinding bin will entail further impact and grinding of smaller grinding agent, and the finished goods which meet the degree of fineness will enter into discharging device and been discharged from the mill.

Structure introduction
The mill mainly consists of feeding device, slipper bearing, rotating part, discharging device, lubricating device of slipper bearing.  3.1 Feeding device


Company Information



CITICIC began in 1956-The  largest mining equipment and cement equipment manufacturers in China.CITICIC is a global supplier of technology and services to customers in the process industries,including
Mining,Construction,Metallurgical,Environmental,Power,Chemical,Marine,Casting&Forgings.
CITIC IC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC IC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems.
Our factory in Luoyang covers more than 3 million square meters, of which 2 million square meters is under cover. It has a total workforce of approximately 10,000 employees of which more than 1,200 are engineers.
CITIC IC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC IC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems Etc.



Our Factory

ISO CE No Dust Pollution Ball Mill Shell CITIC HIC Machine Parts 0

Process Capability

ISO CE No Dust Pollution Ball Mill Shell CITIC HIC Machine Parts 1

Foreigner Visit

ISO CE No Dust Pollution Ball Mill Shell CITIC HIC Machine Parts 2



FAQ



Quality Control

Physical & Chemical Identification Center

CITICIC owns a professional testing and metrology institute which provides advanced testing methods such as nondestructive testing, industrial chemical analysis, metallographic testing and analysis, mechanical testing, sample preparation, meter/length measurement, weighing apparatus verification, and weighman inspection. Our metrology institute has taken a leading role in China.

CITICIC owns nearly two hundred types of advanced testing equipment, nine different measurement standards and nearly twenty types of world-class testing equipment which have been imported from international locations such as Germany, Japan, USA, UK and Belgium.
