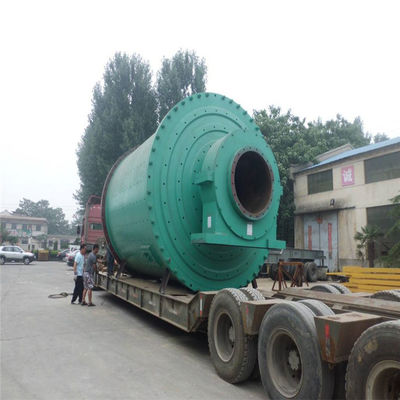

CITIC IC Iron Mine Super Fine Grinding Ball Mill Average Particle Size

CITIC IC Iron Mine Super Fine Grinding Ball Mill Average Particle Size
CITIC IC Iron Mine Super Fine Grinding Ball Mill Average Particle Size CITIC IC Iron Mine Super Fine Grinding Ball Mill Average Particle Size CITIC IC Iron Mine Super Fine Grinding Ball Mill Average Particle Size CITIC IC Iron Mine Super Fine Grinding Ball Mill Average Particle Size CITIC IC Iron Mine Super Fine Grinding Ball Mill Average Particle Size CITIC IC Iron Mine Super Fine Grinding Ball Mill Average Particle Size

Large Image :  CITIC IC Iron Mine Super Fine Grinding Ball Mill Average Particle Size

Product Details:
Place of Origin: Henan, China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: Ore Grinding Mill
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: negotiable / Set
Packaging Details: Simple packaging for CITIC IC iron mine grinding ball mill
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year
Detailed Product Description
Condition: New Type: Ball Mill
Motor Type: AC Motor Capacity(t/h): 0.5-12 Tph
Dimension(L*W*H): 14*9*10.25 Weight: Ultra Fine Grinding Mill
Warranty: 1 YEAR After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas
Super Fine Grinding Mill: Super Fine Grinding Mill Model: XM80-XM125
Feeding Particle Size/mm: ≤20 Range Of Finished Size/um(mesh): 5-47(325~2500)
Yield Of Finished Product T/H: 0.5-12 Application: Iron Mine
Color: Customer Requirement Name: Iron Mine Grinding Ball Mill
Keywords: Ball Mill Port: QingDao,TianJin,ShangHai
High Light:

Super Fine Grinding Ball Mill

,

CITIC IC Grinding Ball Mill

,

Particle Size Grinding Ball Mill


company information

CITIC IC Iron Mine Super Fine Grinding Ball Mill Average Particle Size 0

Product Description



Mine  grinding ball mill

Brief introduction of Super fine grinding mill

Super fine grinding mill is a high-efficient ultra fine powder grinding mill, comparable to air-blast mill, newly designed by our experts on the basis of industrial mill manufacturing experience for many years, which adopts the theory of fluidics and successfully solves the problem of high cost in domestic air-blast mill.
The new type of grinding roll assembly changes the traditional structure, using various means of sealing, getting rid of three defects of old assembly, i.e. oil leak, dust coming in, and disalignment.



The purpose and scope of application for Super fine grinding mill
Super fine grinding mill is mainly used in grinding conventional materials i.e. non-flammable materials with humidity less than 8%, Mohs hardness below 6, such as kaolin, limestone, calcite, talc, marble, barite, gypsum, iron oxide red, iron oxide green, aluminum hydroxide, pigment, bentonite, pottery clay, etc.

The main features of the Super fine grinding mill

1. Compared with other mill, the grinding pressure of grinding roll to the materials has increased 800-1200kg under the function of superfine spring.
2. Energy saving, in case of same output and fineness, its systematic energy consumption is only one-third of that in the jet mill.
3. Small investment, and high efficiency, in case of same output and fineness, the price is only one-fourth of that for the air-blast mill.
4. Compared with air-blast mill, ultrafine powder mill has fewer production process. The air-blast mill must first make 20mm material into 100 mesh, and then be processed into ultrafine powder, however, the ultrafine powder mill can directly grind material with feed size less than 20mm, and at one time produce the ultrafine powder with average particle size less than 6.5um.
5. The grinding device adopts overlapping multi-stage sealing with good sealing performance.
6. The dust collecting effect of ultrafine powder mill fully meets the national dust emission standards.

Several advantages of the new type assembly:
1. No oil leak; it is not necessary to add oil every shift but to add a little lubricating oil every three days or a week.
2. High degree of sealing; the dust is not easy to enter into the assembly in the process of production, thus prolonging the service life of the bearings.
3. In the process of production, it is possible to adjust the bearing clearance according to the wearing degree of assembly bearing, ensuring the concentricity of the upper and lower bearings. The bearings can be used continuously for more than 10 months.
4. The new type of roll assembly extends the period of maintenance, reduces the strength of repair and production costs, improves production efficiency, and bring considerable economic benefits to the users.

Main technical parameters of Super fine grinding mill

Model XM80 XM90 XM100 XM100A XM125
Average working diameter/mm 800 930 1035 1035 1300
Quantity of ring track/layer 3 3~4 3 4 4
quantity of roller/piece 21 24~32 27 34~36 40~44
Rotational speed of main shaft/r.p.min 230~240 200~220 180~200 180~200 135~155
Feeding particle size/mm 20
Range of finished product particle size/um(mesh) 5-47(325~2500)
Yield of finished product t/H 0.5-4.5 0.6-6.5 0.7-7 1-8.5 1.5-12
External dimension length*height*width/m 13.9*4*6.2 14.7*4.8*7.2 18*4.6*8.6 18*4.6*8.6 14*9*10.25
Whole unit capacity/KW 145-165 185-204 263 263-290 380-430



Aftersales service:
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS



ZTIC's Field Service Engineers are trained specifically in the CITIC brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
ZTIC also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.



FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience..

     2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.

     3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.



Q:Delivery time:

A: parts lead time 1-2months, machines 2-3months.



Q:Payment terms:

A: Accept payment type: T/T, L/C, Western union,Cash.30% deposit when signed contract. Full payment paid before shipping.



Q: Quality warranty?

A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.



Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.
