Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Industry | Condition: | New |
|---|---|---|---|
| Type: | Jaw Crusher | Application: | Rock Crusher And Stone Crusher |
| Motor Type: | AC Motor | Capacity(t/h): | 20-1200 Tph |
| Dimension(L*W*H): | PE Jaw Crusher | Weight: | 0.8-150.6 T |
| Warranty: | 12 Month | Rock Crusher And Stone Crusher: | Jaw Crusher |
| Model: | PE Jaw Crusher | Feed Opening (mm): | 150x250-1600x2100 |
| Max.feeding Size (mm): | 125-1500 | Discharge Opening (mm): | 10-400 |
| Processing Capacity (t/h): | 1-2200 | Rotation Speed Of Eccentric Shaft: | 160-330(r/min) |
| Motor Power (kw): | 5.5-380 | Total Weight (t): | 0.8-150.6 |
| Dimensions (LxWxH) (mm): | 6210x4013x4716(PE1600x2100 ) | After-sales Service Provided: | No After-sales Service |

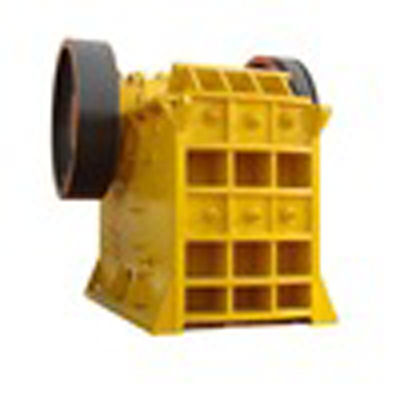

Jaw Crusher : PE Series Jaw Crusher
Jaw crusher is a crushing machine that is researched and developed very early. With simple and solid structure, reliable work, easy maintenance and repair and low production and construction fees, it has long been widely used for the coarse, medium and fine crushing of various kinds of ores and rocks whose compression strength is 147~245MPa in many industrial departments such as metallurgy, chemistry, building material, power plant and transportation. In recent years, to satisfy the requirement of crushing micro-carbon ferro chrome with high strength and high hardness in the industrial departments of metallurgy, mine and building, our company has specially researched and manufactured powerful jaw crusher.
Jaw crusher is mainly used for the medium-granularity crushing of all kinds of ores and large materials in mine, metallurgy, building material, highway, railway, water conservancy and chemistry. The maximum compression strength of the materials to be crushed is 320MPa.
|
Model
|
Feed opening
(mm) |
Max.feeding size
(mm) |
Adjusting range of discharge opening
(mm) |
Processing capacity
(t/h) |
Rotation speed of eccentric shaft
(r/min) |
Motor power
(kw) |
Total weight
(t) |
Dimensions
(L×W×H) (mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070×2000×1920 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 110 | 29.8 | 2710×2430×2800 |
| PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 160-220 | 100.9 | 4200×3300×3500 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 280-355 | 122 | 5160×3660×4248 |
| PE-1600×2100 | 1600×2100 | 1500 | 300-400 | 1300-2200 | 160 | 350-380 | 150.6 | 6210×4013×4716 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720×1950×1600 |
CITICIC began in 1956-The largest mining equipment and cement equipment manufacturers in China.CITICIC is a global supplier of technology and services to customers in the process industries,including
Mining,Construction,Metallurgical,Environmental,Power,Chemical,Marine,Casting&Forgings.
Our factory in Luoyang covers more than 3 million square meters, of which 2 million square meters is under cover. It has a total workforce of approximately 10,000 employees of which more than 1,200 are engineers.
CITIC IC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC IC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems Etc.
CITICIC LuoYang Heavy Machinery Co., Ltd
Website: www.citicmc.com
Company Video:http://citicic.en.alibaba.com/company_profile.html
CITICIC owns a professional testing and metrology institute which provides advanced testing methods such as nondestructive testing, industrial chemical analysis, metallographic testing and analysis, mechanical testing, sample preparation, meter/length measurement, weighing apparatus verification, and weighman inspection. Our metrology institute has taken a leading role in China.
CITICIC owns nearly two hundred types of advanced testing equipment, nine different measurement standards and nearly twenty types of world-class testing equipment which have been imported from international locations such as Germany, Japan, USA, UK and Belgium.
|
Spectrometer |
Ultrasonic flaw detector |
Carbon and sulfur analyzer |
|
X-ray detection apparatus |
Brinell microscope |
Leeb hardness tester |
Aftersales service
CITIC Heavy Industries is your business partner in the After Market.
CITICIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
CITIC’s Field Service Engineers are trained specifically in the CITIC brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
CITICIC also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
