Product Details:
Payment & Shipping Terms:
|
| ITEM: | JKZ Series Sinking Winch | Color: | As Required |
|---|---|---|---|
| Warranty: | 12 Months | Keyword: | JKZ Series Sinking Winch |
| Condition: | New | Structure: | Conveyor System |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 2JKZ &JKZ Series Sinking Winch |
| Load Capacity: | 2JKZ &JKZ Series Sinking Winch | Port: | QingDao,ShangHai,TianJin |
Product Introduction

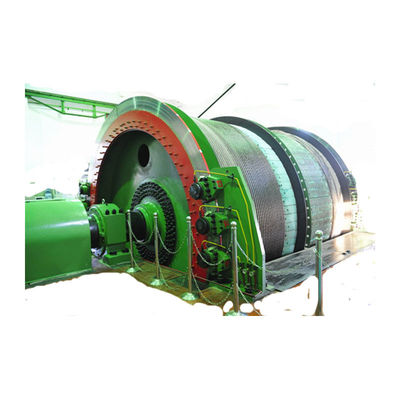

JKZ series winch products include diameter 2.8m-5.5mJKZ single cylinder and double drum winch winch 2JKZ various specifications, winch for coal, metal and non-metal mines during the drilling, lifting of material and personnel, is a special equipment for mine shaft sinking. 2JKZ, JKZ type winch is a special lifting equipment of large ordinary sinking.
Basic information :
a. Load capacity: 0.5t-30t.
b. Working Speed: 2.5-30m/min or Customized.
c. Hydraulic pump station brand: Self-made or Chinese famous brand.
d. Wire rope capacity: 10-8000m or Customized.
e. Color: Blue,Yellow,White,Black or According to your demands.
f. Paintings: 3 layers anti-corrosion paintings
g. Usage: construction, boat, mine, bridge, building, road, crane, port, building, etc.
The main purpose of sinking winch:
1.Lifting the rock in the pit
2.Lifting personnel and All kinds of machinery and equipment for shaft sinking
3.Transportation of Concrete for walls
4.The characteristics of sinking winch:
5.Large difference of static tension
6.Large Lifting load
7.high lifting speed during shaft sinking
8.Complex velocity diagram (at least nine stages speed chart)
9.Higher control precision and Better speed performance
Features of Shaft Sinking Winch
This series winches mainly used for materials lifting, weight drops pulling and drawing in construction.
It also used as main hoisting equipment in crane.
It is the special electric winch of crane and gantry frame and lifting trolley.
It is suitable for lifting material and equipments installation of construction, mine site and factory.
Technical Parameter of Shaft Sinking Winch
| Items | Rated load (kn) | Rated speed (m/min) | Rope capacity(m) | Rope diameter (mm) | Motor Type | Power (kw) |
| JK0.5 | 5 | 22 | 190 | Φ7.7 | Y100L2-4 | 3 |
| JK1 | 10 | 22 | 100 | Φ9.3 | Y112M-4 | 4 |
| JK1.6 | 16 | 24 | 150 | Φ12.5 | Y132S-4 | 5.5 |
| JK2 | 20 | 24 | 150 | Φ13 | Y132M-4 | 7.5 |
| JK3.2 | 32 | 25 | 290 | Φ15.5 | YZR180L-6 | 15 |
| JK3.2B | 32 | 30 | 250 | Φ15.5 | YZR200L-8 | 22 |
| JK5 | 50 | 30 | 300 | Φ21.5 | YZR225M-6 | 30 |
| JK5B | 50 | 25 | 210 | Φ21.5 | YZR225M-8 | 22 |
| JK8 | 80 | 25 | 160 | Φ26 | YZR280S-8 | 45 |
| JK10 | 100 | 30 | 300 | Φ30 | YZR315S-8 | 55 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
