Diesel 1800 MM Feed 1000 TPH Apron Feeder Conveyor Conveying Hoisting Machine

Name: Diesel 1800 MM Feed 1000 TPH Apron Feeder Conveyor Conveying Hoisting Machine
Brand: CITIC LK
SKU: Conveying Hoisting Machine
Price: 5 USD
Availability: InStock
Rating: 4.6 (172 reviews)

Large Image : Diesel 1800 MM Feed 1000 TPH Apron Feeder Conveyor Conveying Hoisting Machine

Product Details:

Place of Origin:	Henan, China
Brand Name:	CITIC LK
Certification:	ISO/CE
Model Number:	Conveying Hoisting Machine

Payment & Shipping Terms:

Minimum Order Quantity:	>=1 Sets
Price:	$5,000.00
Packaging Details:	Standard packing or according to customer's requirement
Supply Ability:	500.0 Set/Sets per Year

Contact Now

Detailed Product Description

Applicable Industries:	Manufacturing Plant, Construction Works , Energy & Mining	After Warranty Service:	Video Technical Support, Online Support
Local Service Location:	Viet Nam, Indonesia, Australia, Argentina	Showroom Location:	None
Condition:	New	Application:	Mining, Transporting
Power Type:	Diesel	Capacity(t/h):	20-1000 Th, 20-1000 Th
Dimension(LWH):	311018001600mm	Weight:	5200kg
Warranty:	1 YEAR	After-sales Service Provided:	Video Technical Support, Online Support, Field Maintenance And Repair Service
Product Name:	Apron Feeder	Model:	WBQ/WBL/WBZ Apron Feeder
WBQ Apron Feeder:	Light Duty Apron Feeder	WBL Apron Feeder:	Medium Duty Apron Feeder
WBZ Apron Feeder:	Heavy Duty Apron Feeder	Width(mm):	500-2500
Length(mm):	2000-19000	Speed(m/s):	0.006-0.02
Feed Size(mm):	500-1800	Port:	QingDao,ShangHai,Tianjin
High Light:	Diesel Apron Feeder Conveyor , 1000 TPH Apron Feeder Conveyor

Product Description

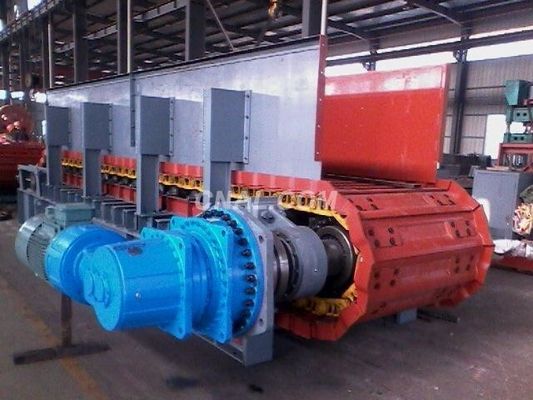

Mining Apron Feeder

Description of Apron Feeder (Plate Feeder):
Our apron feeder, sometimes also referred to as plate feeder, is mainly used to process 100mm-200mm materials. And it is widely used for mining, transporting and batching in cement field, fertilizer industry, nonferrous metal sector, mining field, chemical industry, metallurgy sector, papermaking industry, etc. It is typically appropriate for continuously conveying materials in horizontal and inclined directions for running machines, silos, hoppers, and other kinds of containers.

It is mainly used to process bulk materials whose bulk density is no more than 1.2t/m 3, or block weight cannot be more than 140kg, and whose temperature should not be higher than 350°C. Our WBL type apron feeder is mainly used to convey bulk materials, which has turned intermittent material feeding into continuous material feeding. Besides, it has features of large traction power, less leakage, stable performance, long service life, easy maintenance, and more

The technical data of the light duty Apron Feeder:

Model	width(mm)	Length(mm)	Speed(m³/h)	Feed Size(m/s)	Capacity(mm)
WBQ500-2	500	2000	7-88	0.05-0.4	180
WBQ500-3		3000
WBQ500-4.5		4500
WBQ500-6		6000
WBQ500-9		9000
WBQ500-12		12000
WBQ630-3	630	3000	11-175	0.04-0.4	200
WBQ630-4.5		4500
WBQ630-6		6000
WBQ630-9		9000
WBQ630-12		12000
WBQF630-15		15000
WBQ800-3	800	3000	19-308	0.04-0.4	350
WBQ800-4.5		4500
WBQ800-6		6000
WBQ800-9		9000
WBQ800-12		12000
WBQ800-15		15000
WBQ800-18		18000

The technical parameters of medium duty Apron Feeder:

Model	width(mm)	Length(mm)	Speed(m/s)	Feed Size(mm)	Capacity(t/h)
WBL100-6	1000	6000	0.01-0.1	≤ 500	80-160
WBL100-12	1000	12000	0.05-0.1	≤ 500	60-130
WBL120-4	1200	4000	0.014-0.08	≤ 600	45-150
WBL120-6	1200	6000	0.01-0.1	≤ 600	80-160
WBL120-11	1200	11000	0.01-0.1	≤ 600	50-100
WBL120-19	1200	19000	0.014-0.09	≤ 600	45-150
WBL125-6	1250	6000	0.014-0.08	≤ 700	45-150
WBL125-12	1250	12000	0.014-0.08	≤ 700	45-150
WBL140-8	1400	8000	0.017-0.17	≤ 900	100-200
WBL140-16	1400	16000	0.006-0.06	≤ 900	20-200
WBL150-5	1500	5000	0.014-0.08	≤ 700	85-288
WBL150-15	1500	15000	0.006-0.06	≤ 700	20-200
WBL150-10.5	1500	10500	0.006-0.06	≤ 700	20-200
WBL160-6	1600	6000	0.017-0.17	≤ 800	61-610
WBL160-9	1600	9000	0.076	≤ 800	180
WBL180-8	1800	8000	0.022-0.046	≤ 800	100-1000
WBL180-12	1800	12000	0.05	≤ 800	360
WBL220-10	2200	10000	0.018-0.055	≤ 1500	220-680
WBL240-10	2400	10000	0.018-0.055	≤ 1500	220-680

The technical parameters of heavy duty apron feeder:

Model	width(mm)	Length(mm)	Speed(m/s)	Feed Size(mm)	Capacity(t/h)
WBZ160-9	1600	9000	0.01-0.07	≤ 1000	27-270
WBZ180-8	1800	8000	0.01-0.07	≤ 1000	≤ 500
WBZ180-8.75	1800	8750	0.01-0.07	≤ 1000	≤ 500
WBZ180-9	1800	9000	0.01-0.07	≤ 1000	≤ 500
WBZ180-9.8	1800	9800	0.01-0.07	≤ 1000	≤ 500
WBZ180-10	1800	10000	0.01-0.07	≤ 1000	≤ 500
WBZ200-9.8	2000	9800	0.01-0.07	≤ 1000	≤ 500
WBZ220-10	1800	10000	0.01-0.07	≤ 1200	≤ 700
WBZ230-10	2300	10000	0.01-0.07	≤ 1500	≤ 800
WBZ240-10	2400	10000	0.02-0.06	≤ 1600	≤ 850
WBZ250-11.5	2500	11500	0.01-0.07	≤ 1800	550-900
