| Condition: | New | Name: | Explosion Proof Hydraulic Winch |
|---|---|---|---|
| Warranty: | 1.5 Years | Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining |
| Local Service Location: | Viet Nam, Indonesia, Australia, Argentina | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Model: | JKYB,2JKYB | Port: | Qingdao, Tianjin, Shanghai |
| High Light: | 300m rope capacity Shaft Sinking Winch,100KN Explosion Proof Hydraulic Winch |
||

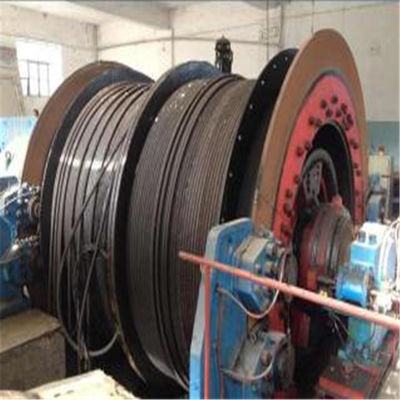

Hydraulic explosion-proof hoist
1.Application and product introduction
JT(K)YB-*×*J series hydraulic explosion-proof hoist and hoisting winch adopts flameproof squirrel cage asynchronous motor to drive two-way variable hydraulic pump, through the closed circuit to drive a number of high-speed hydraulic motors to rotate, through the reducer to drive the drum rotation.
JT(K)YB-*×*XP series hydraulic explosion-proof hoist and hoisting winch is used for containing methane air mixture and coal dust and other explosive gas occasions, used to lift and lower personnel, material lifting equipment, is a new product of machine, electricity, liquid integration.
|
The ordering information:
1. Indicate the hydraulic explosion-proof hoist and hoist model. 2. The biggest increase length, maximum speed, work speed, maximum static tension, static tension, shaft Angle. 3. Allow the maximum size of the delegate object and equipment layout requirements. 4. If you have other special needs, can contact the manufacturer. |
Technical Parameter of Shaft Sinking Winch:
| Items | Rated load (kn) | Rated speed (m/min) | Rope capacity(m) | Rope diameter (mm) | Motor Type | Power (kw) |
| JK0.5 | 5 | 22 | 190 | Φ7.7 | Y100L2-4 | 3 |
| JK1 | 10 | 22 | 100 | Φ9.3 | Y112M-4 | 4 |
| JK1.6 | 16 | 24 | 150 | Φ12.5 | Y132S-4 | 5.5 |
| JK2 | 20 | 24 | 150 | Φ13 | Y132M-4 | 7.5 |
| JK3.2 | 32 | 25 | 290 | Φ15.5 | YZR180L-6 | 15 |
| JK3.2B | 32 | 30 | 250 | Φ15.5 | YZR200L-8 | 22 |
| JK5 | 50 | 30 | 300 | Φ21.5 | YZR225M-6 | 30 |
| JK5B | 50 | 25 | 210 | Φ21.5 | YZR225M-8 | 22 |
| JK8 | 80 | 25 | 160 | Φ26 | YZR280S-8 | 45 |
| JK10 | 100 | 30 | 300 | Φ30 | YZR315S-8 | 55 111 |
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping .
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
