Product Details:
Payment & Shipping Terms:
|
| Girth Gear: | Rotary Kiln Girth Gear And Ball Mill Girth Gear | Diameter: | Min 100 Mm To16000 Mm Girth Gear |
|---|---|---|---|
| Weight: | Max 120 MT Single Piece | Module Range: | 10 Module To 70 Module |
| Standards/Certificates: | UNI EN ISO, AWS , ASTM ,ASME , DIN | Maximum Module: | 45 By Hob |
| Applications: | Our Girth Gears Are Applied In The Cement And Minerals Industries | Kiln Girth Gears: | We Are Leading Supplier The Kiln Girth Gears For The Various Plants |
| Ball Mill Girth Gear: | Applied In The Cement And Minerals Industries | Gear Cutting Machines: | 16m CNC Hobbing Machine |
| Material: | Steel 42CRMO/17crnimo6 | Application: | Rotary Kiln And Ball Mill And Construction Machines |
| Dimensions: | Girth Gear | Port: | QingDao,ShangHai,TianJian |
| High Light: | HB 250 Mill Girth Gear,GB7233-87 Mill Girth Gear,HB 250 Steel Girth Gear |
||

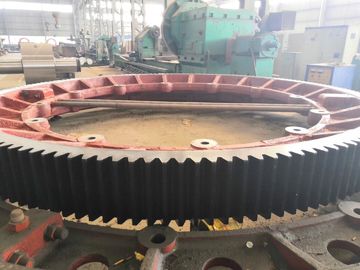

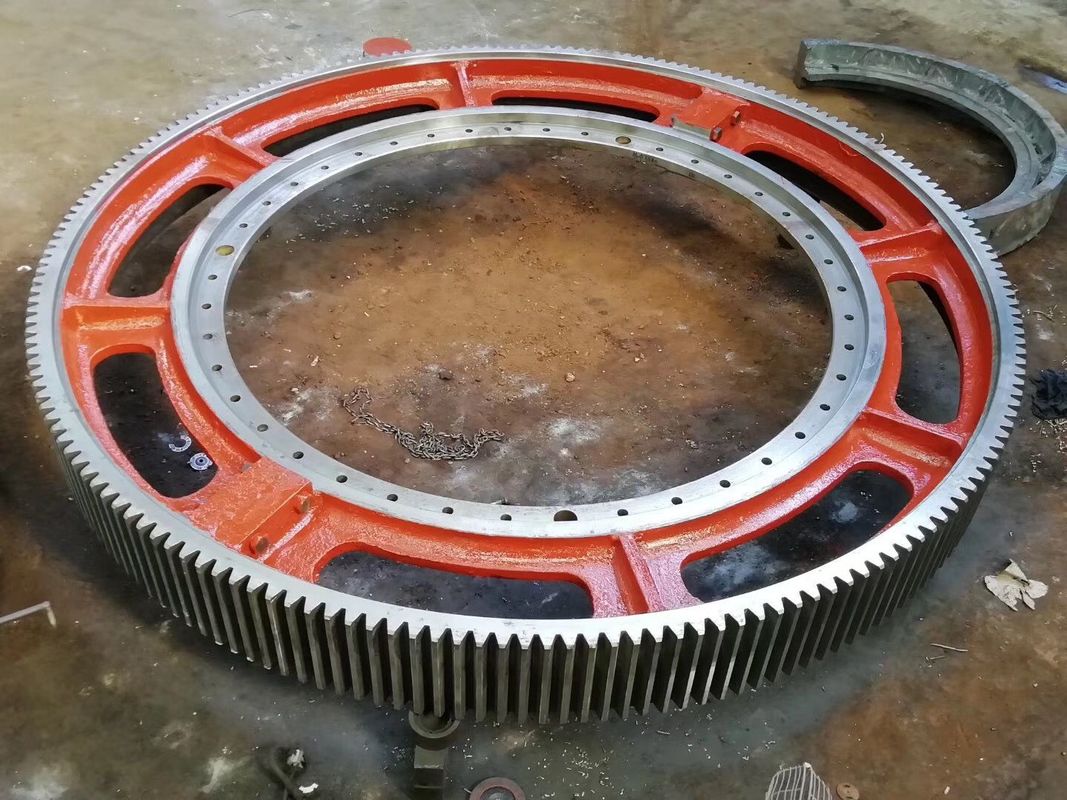

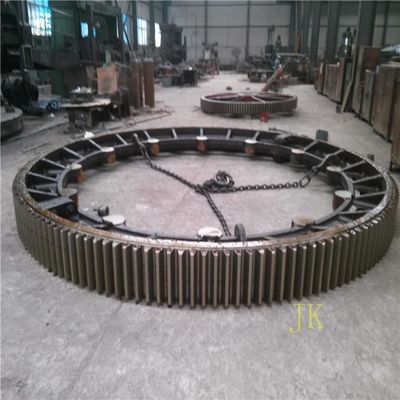

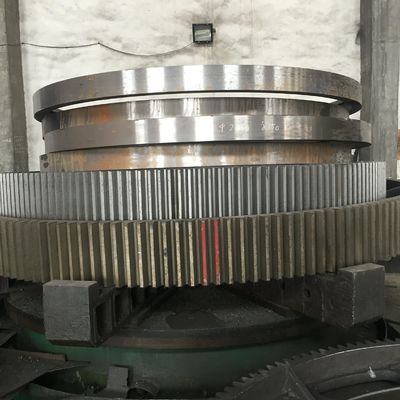

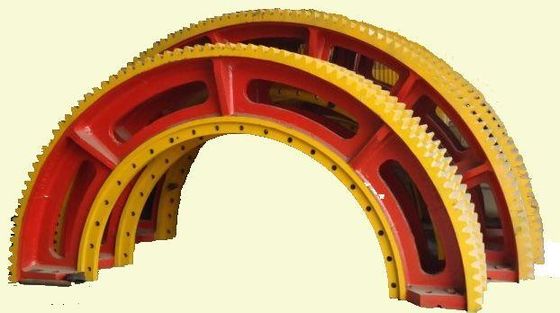

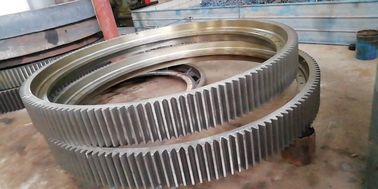

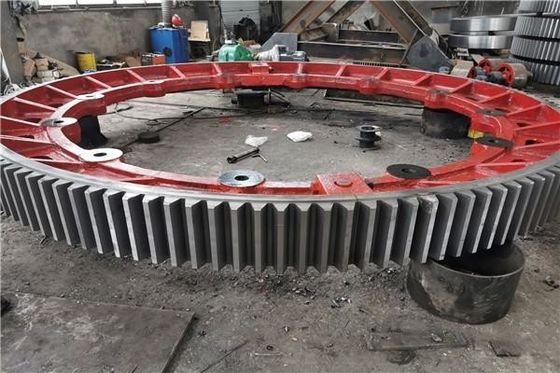

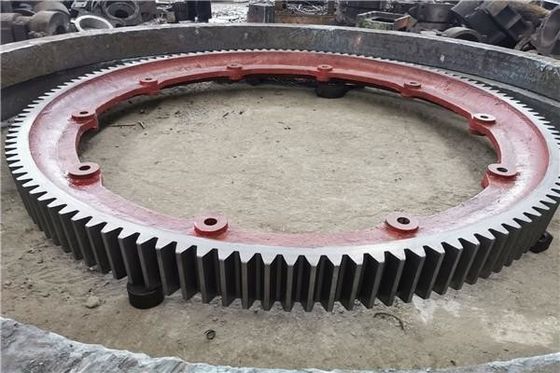

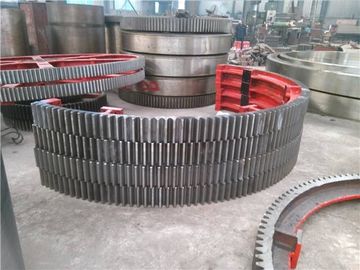

| Ball mill cast steel large ring gear separation ring gear |
|
Product Name |
Steel girth spur gear |
|
Weight |
Max 120 MT single piece |
|
Applications |
industries |
|
Module Range |
10 Module to 70 Module. |
|
Diameter |
Min 100 mm to16000 mm. |
|
Weight |
Max 120 MT single piece. |
|
Gear Cutting Capacity |
100mm diameter to 16000mm diameter,10Module to 70Module |
| External teeth | |
| Maximum diameter | 16000 mm |
| Toothed face width | 1700 mm |
| Maximum module | 45 by hob |
| Maximum module | 65 gear finishing cutter |
| Internal teeth | |
| Maximum Diameter | 6500 mm |
| Maximum module | 25.4 |
| Toothed face width | 400 mm |
|
Girth Gears offered find extensive application in different industry sectors including in sponge iron plants, steel & cement industry, mining industry, wind mills as well as in other industry sectors. These are made available in module range of 10 Module to 70 Module and in minimum diameters of 100 mm to 15000 mm. Further, these comprise maximum weight of 70 MT single pieces. Here the range of hardened & ground gear boxes/gears comprise Worm gear boxes, Helical / Double helical gears/gearboxes, Helical-Bevel gearboxes, Planetary Gearboxes and others.
Module Range: 10 Module to 70 Module. Diameter : Min 100 mm to16000 mm. Weight : Max 120 MT single piece. Hardened & Ground Gear Boxes/Gears:
|
|
Q: Why we believe in luoyang zhongtai industries co., ltd: A: 1. More than 30 years experience. 2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts 3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty? A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service? A: we can supply technical guide for machines running test and parts maintenance if end user needs. |
