Product Details:
Payment & Shipping Terms:
|
Condition: | New | Warranty: | 1 YEAR |
---|---|---|---|
Applicable Industries: | Manufacturing Plant, Energy & Mining | Local Service Location: | Viet Nam, Indonesia, Russia, Argentina |
Showroom Location: | None | Type: | Pinion Gear |
Machine Type: | Jaw Crusher | Material: | Steel |
Processing Type: | Casting | Use: | Ore Mining |
Name: | Small Pinion Gear | Application: | Gear Starter |
Standard: | Nonstandard | Certificate: | ISO9001:2015 |
Key Words: | Pinion,pinion Gear,small Gear | Port: | QingDao,ShangHai,TianJin |
Materials: | 17crnimo6 | ||
High Light: | Rod Mill Small Pinion Gear,CNC Machining Mill Pinion Gears,50TPD Small Pinion Gear |
Product Name |
High Precision steel material Custom small pinion gear |
Applications |
Our girth gears are applied in the cement and minerals industries |
Kiln Girth Gears |
We are leading supplier the Kiln Girth Gears for the various plants |
ball mill Girth Gear |
applied in the cement and minerals industries |
Gear Cutting Machines |
16m CNC Hobbing Machine |
Girth gear |
Rotary kiln Girth Gear and ball mill Girth Gear |
Diameter |
Min 100 mm to16000 mm Girth Gear |
Weight |
Max 120 MT single piece |
module range |
10 Module to 70 Module |
Standards/Certificates |
ISO,CE |
Maximum module |
45 by hob |

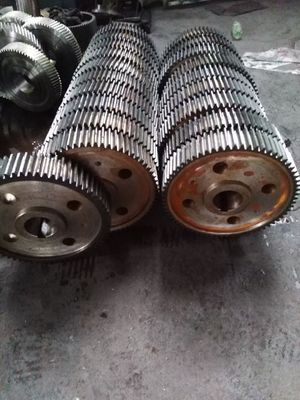

Small pinion gear
42CRMO STEEL DATA CHEMICAL LIST C : 0.38-0.45% Si: 0.17-0.37% Mn: 0.50-0.80% S : Allow residual content <0.035% P : Allow residual content <0.035% Cr: 0.90-1.20% Ni: Allow residual content <0.030% Cu: Allow residual content <0.030% Mo: 0.15-0.25% MECHANICAL DATA Tensile Strength σb (MPa): >1080(110) Yield point σs (MPa): >930(95) Elongation σ5 (%): >12 Reduction of area ψ (%): >45 Akv (J): Impact absorbing energy Akv(J): >63 Impact toughness value αkv (J/cm2): >78(8) Hardness: <217HB Sample size: The blank size of the sample is 25mm PHYSICAL DATA Critical point temperature (approximate value): Ac1=730℃, Ac3=800℃, Ms=310℃ Linear expansion coefficient: temperature: 20~100℃/20~200℃/20~300℃ /20 ~400℃/20~500℃ /20~600℃ linear expansivity: 11.1x10K/12.1x10K/12.9x10K/13.5x10K/13.9x10K14.1x10K Modulus of elasticity: temperature 20℃/300℃/400℃/500℃/600℃, Elastic modulus 210000MPa/185000MPa/ 175000MPa/165000MPa/15500oMPa Ore Mill And Kiln Pinion Gear
|
