Product Details:
Payment & Shipping Terms:
|
| Name: | Small Gear Pinion Gear | Material: | Steel |
|---|---|---|---|
| Processing Type: | Casting | Applicable Industries: | Manufacturing Plant, Energy & Mining |
| Type: | Pinion Gear | Machine Type: | Rotary Kiln And Ball Mill |
| Certificate: | ISO9001:2015 | Surface Treatment: | Painting |
| Key Words: | Pinion,pinion Gear,small Gear | Port: | QingDao,ShangHai,TianJin |
| High Light: | 50tpd mill pinion gears,100mm mill pinion gears,crusher pinion gears |
||
Pinion gear material
42CRMO STEEL DATA
CHEMICAL LIST
C : 0.38-0.45%
Si: 0.17-0.37%
Mn: 0.50-0.80%
S : Allow residual content <0.035%
P : Allow residual content <0.035%
Cr: 0.90-1.20%
Ni: Allow residual content <0.030% Cu: Allow residual content <0.030%
Mo: 0.15-0.25%
MECHANICAL DATA
Tensile Strength σb (MPa): >1080(110)
Yield point σs (MPa): >930(95)
Elongation σ5 (%): >12
Reduction of area ψ (%): >45 Akv (J): Impact absorbing energy Akv(J): >63
Impact toughness value αkv (J/cm2): >78(8)
Hardness: <217HB
Sample size: The blank size of the sample is 25mm
PHYSICAL DATA
Critical point temperature (approximate value): Ac1=730℃, Ac3=800℃, Ms=310℃
Linear expansion coefficient: temperature: 20~100℃/20~200℃/20~300℃ /20 ~400℃/20~500℃ /20~600℃
linear expansivity: 11.1x10K/12.1x10K/12.9x10K/13.5x10K/13.9x10K14.1x10K
Modulus of elasticity: temperature 20℃/300℃/400℃/500℃/600℃,
Elastic modulus 210000MPa/185000MPa/ 175000MPa/165000MPa/15500oMPa
|
Product Name |
High Precision steel material Custom small pinion gear |
|
Applications |
Our girth gears are applied in the cement and minerals industries |
|
Kiln Girth Gears |
We are leading supplier the Kiln Girth Gears for the various plants |
|
ball mill Girth Gear |
applied in the cement and minerals industries |
|
Gear Cutting Machines |
16m CNC Hobbing Machine |
|

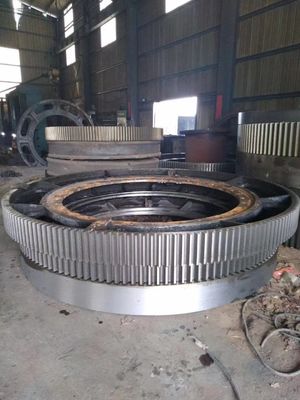

Girth gear |
Rotary kiln Girth Gear and ball mill Girth Gear |
|
Diameter |
Min 100mm to 16000 mm Girth Gear |
|
Weight |
Max 120 MT single piece |
|
module range |
10 Module to 70 Module |
|
Standards/Certificates |
ISO,CE |
|
Maximum module |
45 by hob |
Ball Mill Pinion Gear
Ball Mill Pinion Gear
Ball Mill Pinion Gear
| item | description |
| normal materials | 42crmo, 35crmo |
| better materials | 17crnimo6. 20crmnmoA |
company show
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% desit when signed contractFull payment paid before shipping
Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
Aftersales service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
ZTIC's Field Service Engineers are trained specifically in the CITIC brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
ZTIC also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
