Product Name: | Screw Conveyor | Material: | Carbon Steel |
---|---|---|---|
Material Feature: | Heat Resistant | Warranty: | 1 YEAR |
Color: | Customers' Request | Weight: | 2-50t |
Advantage: | High Speed Conveying | Port: | QingDao,ShangHai,TianJin |
High Light: | 100r/min double screw conveyor,100r/min flexible screw conveyor,140mm double screw conveyor |

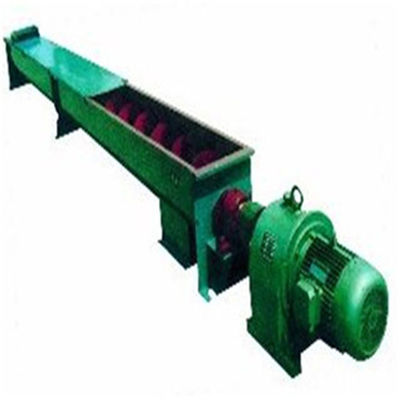

Large capacity flexible screw conveyor machine double screw conveyor
Large capacity screw conveyor:
Screw conveyor is the new generation production that replaced of the GX type screw conveyor . The head and tail bearing have been moved outside from shell. By adopting sliding bearing, dustproof sealed device and slide block, that make screw conveyor easy to install and maintain,which uses rotary spiral vane to push materials continuously in closed housing in round section.
Main application:
Screw conveyors is consisted of conveyer body, feeding and discharging hole and driving device; the screw blade of screw conveyer has three modes: hypostatic screw surface, belt screw surface and blade screw surface. Among them, the blade screw surface is used less to transit the condensable materials with high viscosity. But this blade screw also has the function of mixing and integrating to materials. From the angle of materials displacement direction, screw conveyer can be divided into horizontal screw conveyer and perpendicular screw conveyer that are used in the horizontal transmission and perpendicular lifting to all powdery materials, granular materials and small piece materials. This screw conveyer is not suitable to be used to transit the special materials because they are easy to deteriorate and agglomerate with the characters of large viscosity, heat and pressure intolerance and strong causticity.
Feature:
1. Screw conveyor with good sealed,large capacity,long conveying distance.
2. Screw conveyor with good seal performance,good transportation efficiency
3. Screw conveyor with flexible technological arrangement,easy to be installed,dismantled and moved,safe operation
4. Screw conveyor with compact structure,small cross section,light weight
5. Screw conveyor can mixing,heating and colling in the process of conveying.
Product advantage:
1.The middle bearing adopts rolling and slipping exchange structure with advantages of good sealing and wearing resistance.
2.Suspension bearing adopts machine outside oil cup, which is convenient for lubricating.
3. The new added electric discharge hole is convenient for automatic controlling.
Specification of screw conveyors:
Type | Screw diameter mm | Thread pitch mm | Rotation speed r/min | Standard conveying capacity Iv(m³/h) | Rotation speed r/min | Standard conveying capacity Iv(m³/h) | Rotation speed r/min | Standard conveying capacity Iv(m³/h) | Equipment Weight(kg) | ||||||||
D | S | n | φ. | n | φ. | n | φ. | 10m | +1m | ||||||||
0.45 | 0.33 | 0.15 | 0.45 | 0.45 | 0.33 | 0.15 | |||||||||||
Small size | LS100 | 100 | 140 | 100 | 3.0 | 2.2 | 1.0 | 112 | 2.4 | 1.7 | 0.8 | 90 | 1.9 | 1.4 | 0.6 | 160 | 16 |
LS125 | 125 | 125 | 125 | 5.2 | 3.8 | 1.7 | 100 | 4.1 | 3.0 | 1.4 | 80 | 3.3 | 2.4 | 1.1 | 240 | 22 | |
LS160 | 160 | 160 | 112 | 9.7 | 7.1 | 3.2 | 90 | 7.8 | 5.7 | 2.6 | 71 | 6.2 | 4.5 | 2.1 | 320 | 35 | |
LS200 | 200 | 200 | 100 | 16.9 | 12.4 | 5.6 | 80 | 13.5 | 9.9 | 4.5 | 63 | 10.7 | 7.8 | 3.6 | 410 | 49 | |
Middle size | LS250 | 250 | 250 | 90 | 29.7 | 21.8 | 9.9 | 71 | 23.5 | 17.2 | 7.8 | 56 | 18.5 | 13.6 | 6.2 | 530 | 67 |
LS315 | 315 | 315 | 80 | 52.9 | 38.8 | 17.6 | 63 | 41.6 | 30.5 | 13.9 | 50 | 33.1 | 24.2 | 11 | 680 | 84 | |
LS400 | 400 | 355 | 71 | 85.3 | 62.5 | 28.4 | 56 | 67.3 | 49.3 | 22.4 | 45 | 54.1 | 39.6 | 18 | 1100 | 111 | |
Large size | LS500 | 500 | 400 | 63 | 133.2 | 97.7 | 44.4 | 50 | 105..8 | 77.6 | 35.3 | 40 | 84.6 | 62 | 28.2 | 1240 | 160 |
LS630 | 630 | 450 | 50 | 188.9 | 138.5 | 63.0 | 40 | 151.1 | 110.8 | 50.4 | 32 | 120.9 | 88.6 | 40.3 | 1540 | 240 | |
LS800 | 800 | 500 | 40 | 270.7 | 198.5 | 90.2 | 32 | 216.6 | 158.8 | 72.2 | 25 | 169.2 | 124.1 | 56.4 | 2245 | 380 |
