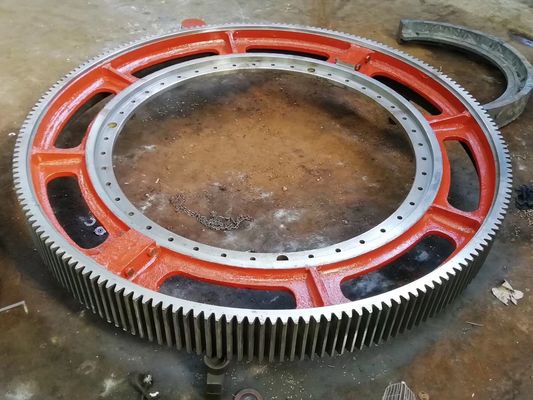

High Quality Mill Girth Gear For Cement Plant And Or Benification Plant

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— James

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Sammel

Through very good communication all problems solved, satisfied with my purchase.

—— Alexandra

Recommedation is good. Reception is professional. Demo training is also very great. Wish more online training after getting the machine.

—— George

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Abby

I'm Online Chat Now

High Quality Mill Girth Gear For Cement Plant And Or Benification Plant

High Quality Mill Girth Gear For Cement Plant And Or Benification Plant
High Quality Mill Girth Gear For Cement Plant And Or Benification Plant
video play

Large Image :  High Quality Mill Girth Gear For Cement Plant And Or Benification Plant

Product Details:
Place of Origin: Henan, China
Brand Name: CTICIC LK
Model Number: Casting Pinion Gears
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: $20,000.00 - $250,000.00 / Set
Packaging Details: Simple packaging
Supply Ability: 2000 Set/Sets per Year
Detailed Product Description
Girth Gear: Rotary Kiln Girth Gear And Ball Mill Girth Gear Material: Steel
Diameter: Min 100 Mm To16000 Mm. Weight: Max 120 MT Single Piece
Module Range: 10 Module To 70 Module Standards/Certificates: UNI EN ISO, AWS, ASTM,ASME,DIN
Maximum Module: 45 By Hob Applications: Our Girth Gears Are Applied In The Cement And Minerals Industries
Kiln Girth Gears: We Are Leading Supplier The Kiln Girth Gears For The Various Plants Ball Mill Girth Gear: Applied In The Cement And Minerals Industries
Gear Cutting Machines: 16m CNC Hobbing Machine Port: QingDao,ShangHai,TianJian
High Light:

10 Module Mill Girth Gear

,

Forging Mill Girth Gear

,

10 Module kiln girth gear

Rotary Kiln Mill Girth Gear Steel girth spur gear
Product Description

Oxidized pellet rotary kiln parts girth gear

Rotary kiln  parts Girth Gear for CITIC IC offered find extensive application in different industry sectors including in sponge iron plants, steel & cement industry, mining industry, wind mills as well as in other industry sectors. These are made available in module range of 10 Module to 70 Module and in minimum diameters of 100 mm to 15000 mm. Further, these comprise maximum weight of 70 MT single pieces. Here the range of hardened & ground gear boxes/gears comprise Worm gear boxes, Helical / Double helical gears/gearboxes, Helical-Bevel gearboxes, Planetary Gearboxes and others.


Product Name

Steel girth spur gear

Weight

Max 120 MT single piece

Applications

industries

Module Range

10 Module to 70 Module.

Diameter

Min 100 mm to16000 mm.

Weight

Max 120 MT single piece.

Gear Cutting Capacity

100mm diameter to 16000mm diameter,10Module to 70Module



External teeth
Maximum diameter 16000 mm
Toothed face width 1700 mm
Maximum module 45 by hob
Maximum module 65 gear finishing cutter
Internal teeth
Maximum Diameter 6500 mm
Maximum module 25.4
Toothed face width 400 mm

High Quality Mill Girth Gear For Cement Plant And Or Benification Plant 0

Module Range:  10 Module to 70 Module.

Diameter : Min 100 mm to16000 mm.

Weight : Max 120 MT single piece.

Hardened & Ground Gear Boxes/Gears:

  • Worm gear boxes
  • Helical / Double helical gears/gearboxes
  • Helical-Bevel gearboxes
  • Planetary Gearboxes
  • Hardened & Ground Helical- bevel gears & Spiral-bevels gears/gearboxes.
  • Rack & Pinions

Rotary kiln  parts Girth Gear for Ratings:

  • Min 3 hp to  Max 1400 hp
  • Splash / Forced lubrication type


With more than 1000 girth gears sold over the world CITICIC Gear is a leading supplier in the cement and mineral industry. And as member of AGMA (American Gear Manufacturers Association), we do actively take part in defining the standard for gear rating calculations and service factors.



We provide girth gears in three different designs

  • Fabricated steel
    - forged ring
    - rolled plate
  • Cast steel
  • Ductile (Nodular) cast iron

Fabricated gears became more common in the past and are constructed with forged steel gear rim materials and electro welded body structure. The rings are manufactured from a whole block of high resistance alloy steel. After the rough machining of the ring, we carry out hardening and tempering heat treatment in order to improve the mechanical characteristic and therefore its relevant performance.



Avantages of fabricated girth gears

  • The forged material structure excludes the risk of inclusions
  • Structure defects like gas holes, micro shrinkage, pin holes, hot tears, sand and slag inclusions are avoided
  • Hence, repair welding of the body structure and e.g. grinding of toothed areas is not required.
  • The fabricated manufacturing procedure excludes the need for patterns and risers
  • Rim material has higher hardness and higher strength than the material used for the underlying structure (i.e. web, gussets)

These features will reduce the lead time and costs. Fabricated manufacturing ensures a fast delivery.

This is especially beneficial in an emergency situation, where the existing gear rim is suffering from damage



Features

  • External teeth
    Maximum diameter: 16000 mm
    Toothed face width: 1700 mm
    Maximum module: 45 by hob
    Maximum module: 65 gear finishing cutter
  • Internal teeth
    Maximum Diameter: 6500 mm
    Maximum module: 25.4
    Toothed face width: 400 mm

Forging material process
• Forging
• Final rolling
• Furnace cooling
• Control on production
• Water quenching
• Hardness testing
• Rough machining
• Ultrasonic testing and dimensional inspection
• Final inspection certification


Standards/Certificates
• UNI EN ISO
• AWS
• ASTM
• ASME
• DIN



Applications
Our girth gears are applied in the cement and minerals industries:
• Various types of horizontal mills
• Rotary dryers
• Rotary kilns
• Any other large gear ring application

Pinions

CITICIC Gear invested in significant resources and achieved many innovations with pinions. The right combination of material, hardness and finishing between pinion and gear is crucial for a long lifetime of the installed equipment. We design and manufacture pinions to match every customers need, no matter how unique the situation might be.

Pinion design

  • bored
  • solid on shaft / integral
  • self aligned
  • spur, helical or double helical

Materialization

  • forged alloyed steel
  • through hardened, case hardened or quenched and tempered
  • Spur, helical or double helical
  • carburized
  • induction
  • nitrided

Characteristics

  • gear cutting with hobs
  • the gear quality is checked by profile tester
  • tooth flank modification
    - profile correction
    - lead correction (straight/barrel)
  • designs /ratios according to ISO-DIN-A.G.M.A.
  • FEM/FEA simulation software

Standards/Certificates

  • UNI EN ISO
  • AWS
  • ASTM
  • ASME
  • DIN
Applications
Our pinions are applied in the cement and minerals industries:
  • Ball - mills
  • ROD - mills
  • Semi Autogeneous Grind (SAG)
  • Rotary kilns/coolers/dryers

Advantages

  • One Source
  • Original Equipment Manufacture (OEM) Technical Drawings
  • Gearing technical expertise for kilns and grinding mills
  • State of the art manufacturing facilities and quality
  • Global sales and service support
Company Information

CITICIC began in 1956-The  largest mining equipment and cement equipment manufacturers in China.CITICIC is a global supplier of technology and services to customers in the process industries,including
Mining,Construction,Metallurgical,Environmental,Power,Chemical,Marine,Casting&Forgings.
CITIC IC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC IC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems.
Our factory in Luoyang covers more than 3 million square meters, of which 2 million square meters is under cover. It has a total workforce of approximately 10,000 employees of which more than 1,200 are engineers.
CITIC IC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC IC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems Etc.
