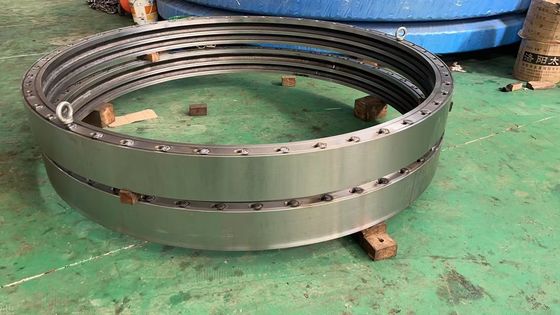

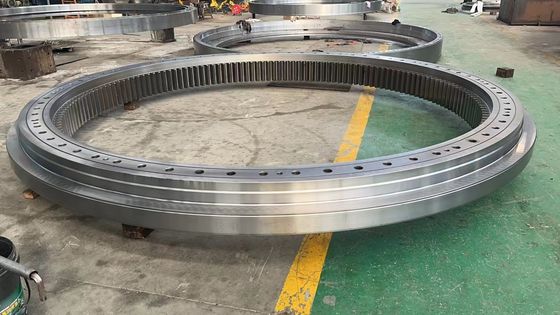

Double Row Thrust Ball 42CrMo Slewing Ring Bearing And Stacker Bearing

Double Row Thrust Ball 42CrMo Slewing Ring Bearing And Stacker Bearing
Double Row Thrust Ball 42CrMo Slewing Ring Bearing And Stacker Bearing
video play

Large Image :  Double Row Thrust Ball 42CrMo Slewing Ring Bearing And Stacker Bearing

Product Details:
Place of Origin: Henan, China
Brand Name: CITIC IC
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Pieces
Price: $200.00
Packaging Details: Standard packing or according to customer's requirement
Supply Ability: 10000.0 Piece/Pieces per Month
Detailed Product Description
Type: Slewing Bearing Applicable Industries: Manufacturing Plant, Construction Works , Energy & Mining
Gear Options: External Gear Only Seals Type: Rubber Seal And Labyrinth Seal
High Light:

42CrMo Slewing Ring Bearing


Thrust Bal Slewing Ring Bearing


42CrMo swing bearing excavator

Double row thrust ball slewing bearings Slewing Ring Bearing
Manufacturers custom-made slewing bearing
The double-row ball slewing turntable bearing can bear radial force, axial force and overturning moment at the same time because it has two rows of steel balls. In order to adapt to the different proportions of the moments, the contact angles range from very small to 90 °. When the diameter of the distribution circle of the steel balls is the same, the total bearing capacity of each row of steel balls is proportional to the diameter of the selected steel ball. Therefore, when the axial cross section and the overturning moment are simultaneously supported under the same bearing section height, the double volley Bearings make better use of section dimensions.
Product process
2,Rough turning
Rough and finish turning by CNC lathes. Each process will be checked according to the drawings. Especially for the oil groove, ellipse, triangle, outer circle(ring) allowance, inner circle(ring) allowance, and chamfer must meet the requirements of the drawing. Well prepared for next steps.
3,Heat treatmeng
Heat treatment will be done according to the types of row material. Row material must ensure the hardness and heat treatment deformation are controlled within the qualified range.
4,Rough Machining
A: Surface: Make sure that the machine is cooled in place, control the surface(plane)bending and parallel difference(tolerance). Pickling flaw detection for the first product to see whether there is burning damage or crack.
B: Outer diameter(ring): Control ellipse, triangle and size. When the product height is large, repeated grinding is needed .
C: Inner diameter(ring): Control ellipse, wall thickness and taper. If the product height is large, the vertical difference should meet the requirements.
D: Raceway: Due to the particularity of the product, it is necessary to grind at a fixed distance and ensure that the cooling is in place. The flaw detection of wall thickness for the sample should be qualified not less than 80%.
5,Hardness lathing
Ensure chamfer, oil groove smooth and without vibration.

6, Additional tempering & Teeth processing

The temperature should be within 150 degrees to eliminate interal stress
7, Finish grinding
100% finish grinding the surface, inner diameter and raceway. The key function is to improve the products’ accuracy, eliminate the ellipse and triangle deformation because of the tempering.
8, The second additional tempering & Final grinding
All procedures should be processed strictly in accordance with the drawings. Special for the temperature difference during tempering; roughness and angle during raceway processing for outer&inner diameter should be 100% inspected.
9,Magnetic particle inspection ,Degaussing,cleaning & check appearance
10,Finally Assembling
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.




Single row four point contact ball slewing bearing
Single row crossed cylindrical roller slewing bearings

Double row crossed cylindrical roller slewing bearings

Double row ball slewing bearings
Double row Roller/ball combination slewing bearing
Three-Row Roller Slew Ring Bearing

Wind power bearings

Non-standard customized slewing bearing with inner/ outer gear

Rollng elements Steel ball / Cylinder Roller
Bearing Material 50Mn/42CrMo/42CrMo4V /Customized
Cage Material Nylon/ steel /copper
Structure taper pin, Mounting holes, Inner ring, grease fitting, load plug, seals, roller, spacer balls or separators
Outer diameter 50-10000mm
Bore size 50-10000mm
Mounting hole Through hole/Tapped hole
Raceway hardness 55-62HRC
Inner and outer ring
modulation hardness
Gear type No gear, Internal gear, External gear
Certificate SGS, ISO9001

Application area
Ladle turret, Stacker crane, Bucket wheel machine, Solar heliostat Tracking System, port crane, Cabling machine, tower crane, offshore platform, ferris wheel, Palletizing robot, Rotary metallurgical furnace, can packing machine, Wind blade transporter, shield tunneling machine, tube push bench, excavator


Application fields of the our slewing bearings:

The turntable bearing produced by our company is used in dock fixed crane, Marine floating crane, gantry crane, ladle rotary table, bucket wheel stacker and reclaimer, circular stacker and reclaimer, crawler crane, ferris wheel, rotary test bench, segment erector, bottle blowing machine and other fields.

Performance and common models of some industries:

1. Port machinery equipment: main equipment includes wharf fixed crane, Marine floating crane, gantry crane, loader, ship unloader, main supporting models:131.45.2240, 131.45.2500, 131.45.2800, 131.50.3150, 132.50.3550, 132.50.4000, 132.50.4500, 132.60.4500, 132.50.5000, 022.50.2240,021.50.2500, 022.50.2800, 012.60.2240, 012.60.2500, 012.60.2800, 011.75.3150, 011.75.3550.

2. Ladle rotary table: Main supporting models:131.45.2500, 131.45.2800, 131.50.3150, 132.50.3550, 132.50.4000, 5397/3370, 6397/4246, 6397/4016, 6397/3340, 132.40.3582.

3. Bucket wheel stacker and reclaimer: Main supporting models:131.45.2800, 131.50.3150, 132.50.3550, 132.50.4000, 1797/2600, 1797/2635, 1797/3230, 1797/4014, 121.40.2750, 121.40.3750, 132.50.5000, 130.50.5000, 132.50.4438, 11.50.3550, 112.40.2800.

4. Circular stacker and reclaimer: Main supporting models:022.40.1800, 022.40.1600, 010.45.1600, 010.45.1800, 010.60.2000, 131.45.2800, 1797/1914, 131.50.3150, 010.60.2800, 010.75.3150, 112.40.2000, 110.50.3150, 110.40.2800, 112.40.2800, 022.50.2500, 111.40.2800, 022.50.2000, 010.45.1400, 022.60.3150, 010.60.2500, 132.50.4000, 022.50.2240, 111.40.2800

5. Marine Crane: Main supporting models: 024.45.2890, 024.45.2895, 024.50.3250, 013.63.2900, 013.45.2875.Double Row Thrust Ball 42CrMo Slewing Ring Bearing And Stacker Bearing 0Double Row Thrust Ball 42CrMo Slewing Ring Bearing And Stacker Bearing 1
