Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1.5 Years | Model: | LS100-LS800 |
|---|---|---|---|
| Screw Diameter: | 100-800mm | Thread Pitch: | 140-500mm |
| Rotation Speed: | 125-40r/min | Port: | Qingdao, Tianjin, Shanghai |
| Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining | ||
| High Light: | 270.7m3/H Screw Conveyor Machine,800mm Screw Conveyor Machine,270.7m3/H Shaft Screw Conveyor |
||

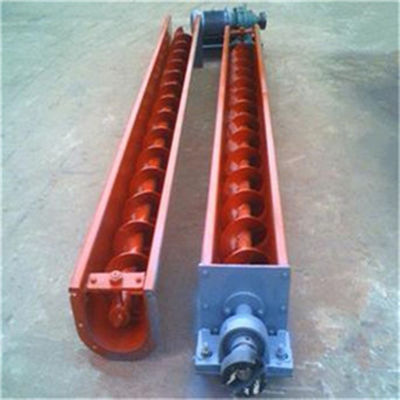

Large capacity double shaft screw conveyor for building materials
Application:
The double shaft screw conveyor is widely used for building materials/power station industry. This conveyor was special used to transport large capacity material.
Features:
1.The motor reducer could be installed on the top or the bottom.
2.Conveyor has big transport capacity, long distance available.
3.Stable and controllable start, continuous and highly efficient operation.
4.The conveying could be the level or the inclined.
5.The blade could be entity spiral
Conveying Hoisting Machine Parameters
|
Model |
Screw diameter (mm) |
Thread pitch (mm) |
Rotation speed (r/min) |
Standard conveying capacity Iv(m³/h) |
Rotation speed (r/min) |
Standard conveying capacity Iv(m³/h) |
Rotation speed (r/min) |
Standard conveying capacity Iv(m³/h) |
Equipment Weight(kg) | ||||||||
| Φ | Φ | Φ | 10m | +1m | |||||||||||||
| D | S | N | 0.45 | 0.33 | 0.15 | n | 0.45 | 0.33 | 0.15 | n | 0.45 | 0.33 | 0.15 | ||||
|
small size |
LS100 | 100 | 140 | 100 | 3.0 | 2.2 | 1.0 | 112 | 2.4 | 1.7 | 0.8 | 90 | 1.9 | 1.4 | 0.6 | 160 | 16 |
| LS125 | 125 | 125 | 125 | 5.2 | 3.8 | 1.7 | 100 | 4.1 | 3.0 | 1.4 | 80 | 3.3 | 2.4 | 1.1 | 240 | 22 | |
| LS160 | 160 | 160 | 112 | 9.7 | 7.1 | 3.2 | 90 | 7.8 | 5.7 | 2.6 | 71 | 6.2 | 4.5 | 2.1 | 320 | 35 | |
| LS200 | 200 | 200 | 100 | 16.9 | 12.4 | 5.6 | 80 | 13.5 | 9.9 | 4.5 | 63 | 10.7 | 7.8 | 3.6 | 410 | 49 | |
|
medium size |
LS250 | 250 | 250 | 90 | 29.7 | 21.8 | 9.9 | 71 | 23.5 | 17.2 | 7.8 | 59 | 18.5 | 13.6 | 6.2 | 530 | 67 |
| LS315 | 315 | 315 | 80 | 52.9 | 38.8 | 17.6 | 63 | 41.6 | 30.5 | 13.9 | 50 | 33.1 | 24.2 | 11 | 680 | 84 | |
| LS400 | 400 | 355 | 71 | 85.3 | 62.5 | 28.4 | 56 | 67.3 | 49.3 | 22.4 | 45 | 54.1 | 39.6 | 18 | 1100 | 111 | |
|
large size
|
LS500 | 500 | 400 | 63 | 133.2 | 97.7 | 44.4 | 50 | 105.8 | 77.6 | 35.3 | 40 | 84.6 | 62 | 28.2 | 1240 | 160 |
| LS630 | 630 | 450 | 50 | 188.9 | 138.5 | 63.0 | 40 | 151.1 | 110.8 | 50.4 | 32 | 120.9 | 88.6 | 40.3 | 1540 | 240 | |
| LS800 | 800 | 500 | 40 | 270.7 | 198.5 | 90.2 | 32 | 216.6 | 158.8 | 72.2 | 25 | 169.2 | 124.1 | 56.4 | 2245 | 380 | |
