Product Details:
Payment & Shipping Terms:
|
| Product Name: | ZSY Gear Box | Gearing Arrangement: | Helical |
|---|---|---|---|
| Input Speed: | 750-1500rpm | Output Speed: | 14-280rpm |
| Output Torque: | 3.2-18000N.m | Material: | 45C Steel |
| Bearing: | NSK | Port: | QingDao,ShangHai,TianJin |
| High Light: | 280rpm Cylindrical Gearbox,18000N.m Cylindrical Gearbox,280rpm 3 stage reduction gearbox |
||

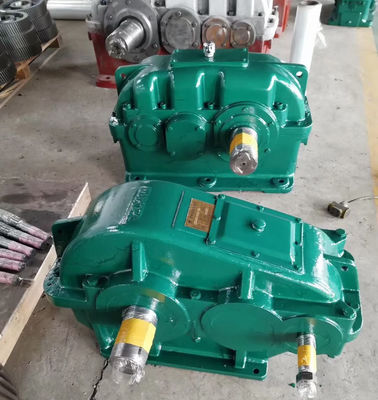

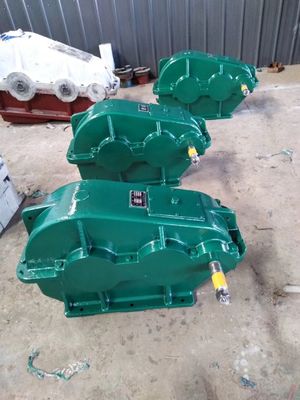

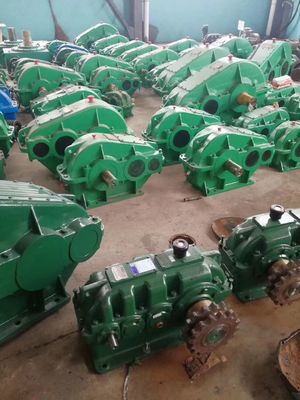

ZSY series transmission gear reducer harden tooth surface three-stage cylindrical gearbox zsy560 reductor for mines
ZSY Cylindrical gear reducer gear carburizing, quenching, grinding, high bearing capacity, low noise; mainly used for belt conveyor and various kinds of transport machinery, can also be used to drive other general machinery. It has the advantages of high bearing capability, long service life, small volume, high efficiency, light weight, for the input shaft and the output shaft is vertically arranged in the driving device.
The field of cylindrical gear reducer is widely used in metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment etc..
ZSY Cylindrical gear speed reducer is a three-level transmission of involute cylindrical gear reducer, mainly used inmining, metallurgy, cement, construction, chemical industry, light industry, etc all kinds of mechanical equipment, reduction drive, is suitable for the workplace being limited by the structure adopts the vertical installation, high-speed spindle speed not more than 1500 r/min, the work environment to + 40 °C and 40 °C -, can positive &negative operation.
1.gear with high strength and low carbon alloy steel by carburizing quenching, tooth surface hardness of HRC58-62, gear are CNC grinding process, high precision, good contact.
2.transmission rate is high: single stage is greater than 96.5%, double stage is greater than 93%, grade three is greater than 90%.
3.stable operation, low noise.
4.small size, light weight, long service life, high carrying capacity.
5.easy to be disassembled and easy to install.
| Type: | Gearbox |
| Model: | Center Distance:25,30,40,50,63,75,90,110,130 |
| Ratio: | 5,7.5,10,15,20,25,30,40,50,60,80,100 |
| Color: | Blue/Silver White |
| Material: | Aluminium Alloy |
| Worm Gear- Cooper-10-3 | |
| Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRC | |
| Shaft-chromium steel-45 | |
| Packing: | Carton box/per set(With foam board inside) |
| Bearing: | Brand "NSK" Bearing |
| Seal: | NAK Seal from TAIWAN |
| Warranty: | 1 year |
| Input Power: | 0.1kw,0.55kw,0.75kw,1.1kw,1.5kw,2.2kw,4kw,5.5kw,7.5kw |
| Usages: |
In industrial machine: widely used in packing, printing,textile machine,as well as woodworking,glass and plastics,food stuff,ceramics,chemical,etc. |
| IEC Flange: | B5,B14 |
| Lubricant: | Synthetic & Mineral |
CITICIC began in 1956-The largest mining equipment and cement equipment manufacturers in China.CITICIC is a global supplier of technology and services to customers in the process industries,including
Mining,Construction,Metallurgical,Environmental,Power,Chemical,Marine,Casting&Forgings.
CITIC IC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC IC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems.
Our factory in Luoyang covers more than 3 million square meters, of which 2 million square meters is under cover. It has a total workforce of approximately 10,000 employees of which more than 1,200 are engineers.
CITIC HIC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC HIC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems Etc.
Our Services
Aftersales service
CITIC Heavy Industries is your business partner in the After Market.
CITICIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
CITIC’s Field Service Engineers are trained specifically in the CITIC brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
CITICIC also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
Contact Person: Mr. David
Tel: 86-18637916126
