Single-Sope Winding Mining Hoist Multi-Rope Friction Mining Hoist

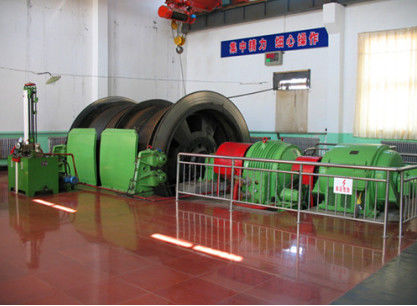

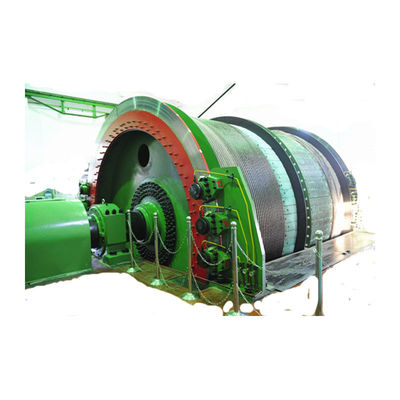

Single-Sope Winding Mining Hoist
The series product including 2m-5m single tubular and double tubular types, and can be used for mining hoist, personnel lifting and material and equipment descending from vertical shafts or inclined shafts of coal, metal and nonmetal ores.
JK mine hoist is mainly used in inclined roadways and wells of coal mines, metal mines and non-metal mines to hoist or lower personnel and materials.
Product parameters
| Model | Drum |
Tension PF |
Tension Differe (KN |
Rope Diameter (mm) |
Capatiy(m) |
Max Speed |
Reduce speed ratio |
Motor Speed |
||||
|
n u m b e r |
Dia | Widlth | One-laye | Two-laye | Three-laye | |||||||
| m | kN | mm | m | m/s | r/min | |||||||
| JK-2×1.5/20 | 1 | 2.0 | 1.5 | 62 | 24 | 305 | 650 | 1025 | 5.2 | 20.0 | 1000 | |
| JK-2×1.5/31.5 | 31.5 | |||||||||||
| JK-2×1.8/20 | 1.80 | 375 | 797 | 1246 | 20.0 | |||||||
| JK-2×1.8/31.5 | 31.5 | |||||||||||
| JK-2.5×2/20 | 2.5 | 2.00 | 83 | 28 | 448 | 945 | 1475 | 5.0 | 20.0 | 750 | ||
| JK-2.5×2/31.5 | 31.5 | |||||||||||
| JK-2.5×2.3/20 | 2.30 | 525 | 1100 | 1712 | 20.0 | |||||||
| JK-2.5×2.3/31.5 | 31.5 | |||||||||||
| JK-3×2.2/20 | 3.0 | 2.20 | 135 | 36 | 458 | 966 | 1513 | 6.0 | 20.0 | |||
| 2JK-2×1/11.2 | 2 | 2.0 | 1.00 | 62 | 40 | 24 | 182 | 406 | 652 | 7.0 | 11.2 | |
| 2JK-2×1/20 | 20.0 | |||||||||||
| 2JK-2×1/31.5 | 31.5 | |||||||||||
| 2JK-2×1.25/11.2 | 1.25 | 242 | 528 | 838 | 11.2 | |||||||
| 2JK-2×1.25/20 | 20.0 | |||||||||||
| 2JK-2×1.25/31.5 | 31.5 | |||||||||||
| 2JK-2.5×1.2/11.2 | 2.5 | 1.20 | 83 | 65 | 28 | 843 | 8.8 | 11.2 | ||||
| 2JK-2.5×1.2/20 | 20.0 | |||||||||||
| 2JK-2.5×1.2/31.5 | 31.5 | |||||||||||
| 2JK-2.5×1.5/11.2 | 2.5 | 1.50 | 83 | 65 | 28 | 319 | 685 | 1080 | 8.8 | 11.2 | ||
| 2JK-2.5×1.5/20 | 20.0 | |||||||||||
| 2JK-2.5×1.5/31.5 | 31.5 | |||||||||||
| 2JK-3×1.5/11.2 | 3.0 | 135 | 90 | 36 | 289 | 624 | 994 | 10.5 | 11.2 | |||
| 2JK-3×1.5/20 | 20.0 | |||||||||||
| 2JK-3×1.5/31.5 | 31.5 | |||||||||||
| 2JK-3×1.8/11.2 | 1.80 | 362 | 770 | 1217 | 11.2 | |||||||
| 2JK-3×1.8/20 | 20.0 | |||||||||||
| 2JK-3×1.8/31.5 | 31.5 | |||||||||||
| 2JK-3.5×1.7/11.2 | 3.5 | 1.70 | 170 | 115 | 40 | 349 | 746 | - | 12.6 | 11.2 | ||
| 2JK-3.5×1.7/20 | 20.0 | |||||||||||
| 2JK-3.5×2.1/11.2 | 2.10 | 450 | 950 | - | 11.2 | |||||||
| 2JK-3.5×2.1/11.2 | 20.0 | |||||||||||
| 2JK-4×2.1/10 | 4.0 | 245 | 160 | 48 | 421 | 891 | - | 12.6 | 10.0 | 600 | ||
| 2JK-4×2.1/11.2 | 11.2 | |||||||||||
| 2JK-4×2.1/20 | 20.0 | |||||||||||
| 2JK-5×2.3/10 | 5.0 | 2.30 | 280 | 180 | 52 | 533 | - | - | 12 | 10.0 | 500 | |
| 2JK-5×2.3/11.2 | 11.2 | |||||||||||

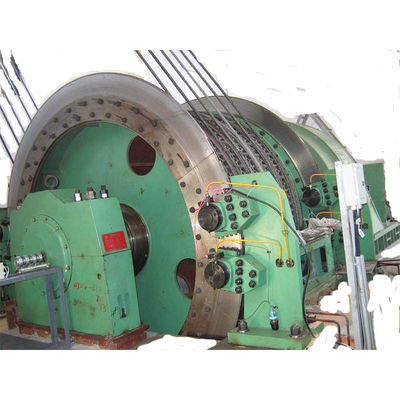

Multi-Rope Friction Mining Hoist
The series product including 1.85m-6m head frame and floor types, and can be used for mineral hoisting, personnel lifting and material and equipment descending from vertical shafts of coal, metal and nonmetal ores.
Tower multi rope friction mine hoist
| Model | Wheel diameter | Wire Rope |
Max ascension speed |
Reducer | Size (L×W×H) |
|
| maximum static tension | ||||||
| m | kN | m/s | Model | Speed ratio | m | |
| JKM-1.3×4(Ⅰ)E | 100 | 5 | XP550 | 11.5 | 6.4×6.5×1.6 | |
| JKM-1.6×4(Ⅰ)E | 150 | 8 | XP560 | 7.35 10.5 11.5 |
6.4×7×1.75 | |
| JKM-1.85×4(Ⅰ)E | 210 | 10 | XP800 | 7×7.5×2.02 | ||
| JKM-2×4(Ⅰ)E | 2 | 230 180 |
10 | XP800 | 7×8×2.2 | |
| JKM-2.25×4(Ⅰ)E | 2 | 215 | 10 | XP800 | 7.4×8×2.3 | |
| JKM-2.8×4(Ⅰ)E | 2.5 | 335 | 14 | XP1000 | 8.5×10×2.65 | |
| JKM-2.8×4(Ⅱ)E | P2H630 | 7.5×8.5×2.65 | ||||
| JKM-2.8×6(Ⅰ)E | 2.5 | 500 | 14 | XP1120 | 8×8.5×2.68 | |
| JKM-2.8×6(Ⅱ)E | P2H800 | 7.5×8.5×2.68 | ||||
| JKM-2.8×6(Ⅲ)E | 7.5×8×2.7 | |||||
| JKM-3.25×4(Ⅰ)E | 3 | 450 | 14 | XP1120 | 7.35 10.5 11.5 |
8.9×8.9×2.98 |
| JKM-3.25×4(Ⅱ)E | P2H800 | 8.5×8.7×2.98 | ||||
| JKM-3.5×6(Ⅰ)E | 3 | 790 | 14 | XP1250 | 11.5×9.2×3.15 | |
| JKM-3.5×6(Ⅱ)E | P2H900 | 10.5×9.2×3.15 | ||||
| JKM-3.5×6(Ⅲ)E | 8×9×3.2 | |||||
| JKM-4×4(Ⅰ)E | 3.2 | 690 | 14 | XP1250 | 7.35 10.5 11.5 |
9×10×3.63 |
| JKM-4×4(Ⅱ)E | P2H900 | 9×10×3.63 | ||||
| JKM-4×4(Ⅲ)E | 7.5×9×3.63 | |||||
| JKM-4×6(Ⅲ)E | 3.2 | 1030 | 9×9×3.63 | |||
| JKM-4.5×6(Ⅲ)E | 3.6 | 1330 | 16 | 12×9.5×3.9 | ||
| JKM-5×6(Ⅲ)E | 4 | 1600 | ||||
Floor type multi rope friction mine hoist
| Model | Wheel diameter | Wire Rope |
Max ascension speed |
Reduces | Size (L×W×H) |
|||
| maximum static tension |
Max
|
|||||||
| m | kN | mm | m/s | Model | Ratio | m | ||
| JKMD-2.25×2(Ⅰ)E | 2.25 | 105 | 22 | 10 | ZZP560(2) | 11.5 | 7.7×9×2.1 | |
| JKMD-2.25×4(Ⅰ)E | 215 | XP800(2) | 7.35 10.5 11.5 |
6.8×9.5×2.3 | ||||
| JKMD-2.8×2(Ⅱ)E | 2.8 | 165 | 28 | XP800(2) | 7.8×10×2.65 | |||
| JKMD-2.8×4(Ⅰ)E | 335 | XP1000(2) | 8.5×10×2.65 | |||||
| JKMD-2.8×4(Ⅱ)E | P2H800(2) | 7.5×10×2.65 | ||||||
| JKMD-3.5×2(Ⅰ)E | 3.5 | 265 | 35 | XP1000(2) | 7×9.5×3.02 | |||
| JKMD-3.5×4(Ⅰ)E | 525 | 13 | XP1120(2) | 8.5×9.5×3 | ||||
| JKMD-3.5×4(Ⅱ)E | P2H800(2) | 8×9.5×3.02 | ||||||
| JKMD-3.5×4(Ⅲ)E | 7.5×9.5×3.0 | |||||||
| JKMD-4×2(Ⅰ)E | 4 | 340 | 39.5 | 12 | XP1120(2) |
7.35 10.5 11.5 |
8.2×10×3.4 | |
| JKMD-4×2(Ⅱ)E | P2800(2) | 7.8×10×3.4 | ||||||
| JKMD-4×4(Ⅰ)E | 680 | 14 | XP1250(2) | 11×10×3.4 | ||||
| JKMD-4×4(Ⅱ)E | P2H900(2) | 10.5×10×3.4 | ||||||
| JKMD-4×4(Ⅲ)E | 8.1×8.7×3.4 | |||||||
| JKMD-4.5×4(Ⅲ)E | 4.5 | 900 | 45 | 9.5×9.5×3.7 | ||||
| JKMD-5×4(Ⅲ)E | 5 | 1070 | 50 | 9.5×10×4 | ||||
| JKMD-5.5×4(Ⅲ)E | 5.5 | 1300 | 55 | 11×10.5×4.5 | ||||
| JKMD-5.7×4(Ⅲ)E | 5.7 | 1500 | 57 | |||||
| JKMD-6×4(Ⅲ)E | 6 | 1570 | 57 | 11×10.5×4 |
||||
