Product Details:
Payment & Shipping Terms:
|
| Type: | Conveying Hoisting Machine | Usage: | Powdery Materials Transmission |
|---|---|---|---|
| Application: | Building Material, Metallurgy, Chemical Industry, Power, Mining, Machinery, Grain And Food | Product Name: | Screw Conveyor |
| Size: | Small,middle,large | Certification: | ISO/CE |
| Feature: | Good Sealing Wearing Resistance | Capacity: | Variable |
| High Light: | 3m3/H Conveying Hoisting Machine,90.2m3/H auger screw conveyor,3m3/H auger screw conveyor |
||

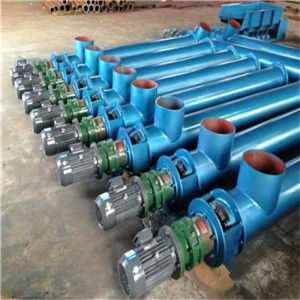

good sealing wearing resistance Conveying Hoisting Machine Screw conveyor

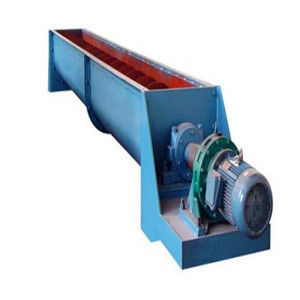

Screw conveyors
Product advantage
1.The middle bearing adopts rolling and slipping exchange structure with advantages of good sealing and wearing resistance.
2.Suspension bearing adopts machine outside oil cup, which is convenient for lubricating.
3. The new added electric discharge hole is convenient for automatic controlling.
Applicable scope
Applicable for the transmission of powdery materials, granular materials and small piece materials and widely used in tall departments of national economy, such as building material, metallurgy, chemical industry, power, mining, machinery, grain and food.

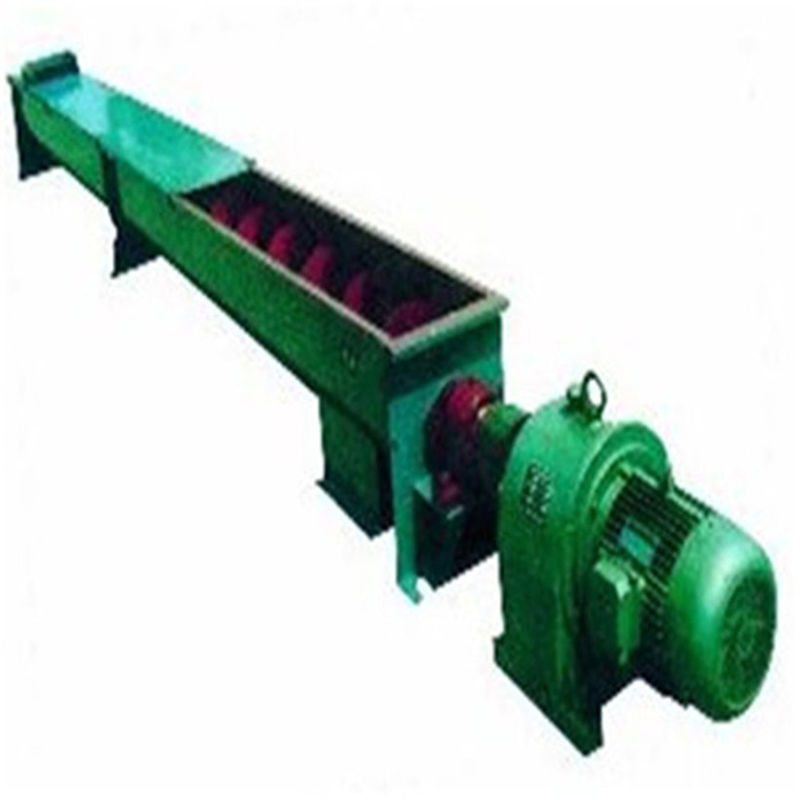

Screw conveyors is consisted of conveyer body, feeding and discharging hole and driving device; the screw blade of screw conveyer has three modes: hypostatic screw surface, belt screw surface and blade screw surface. Among them, the blade screw surface is used less to transit the condensable materials with high viscosity. But this blade screw also has the function of mixing and integrating to materials. From the angle of materials displacement direction, screw conveyer can be divided into horizontal screw conveyer and perpendicular screw conveyer that are used in the horizontal transmission and perpendicular lifting to all powdery materials, granular materials and small piece materials. This screw conveyer is not suitable to be used to transit the special materials because they are easy to deteriorate and agglomerate with the characters of large viscosity, heat and pressure intolerance and strong causticity.
Specification of screw conveyors
| Type | Screw diameter mm | Thread pitch mm | Rotation speed r/min | Standard conveying capacity Iv(m3/h) | Rotation speed r/min | Standard conveying capacity Iv(m3/h) | Rotation speed r/min | Standard conveying capacity Iv(m3/h) | Equipment Weight(kg) | ||||||||
| D | S | n | φ. | n | φ. | n | φ. | 10m | +1m | ||||||||
| 0.45 | 0.33 | 0.15 | 0.45 | 0.45 | 0.33 | 0.15 | |||||||||||
| Small size | LS100 | 100 | 140 | 100 | 3.0 | 2.2 | 1.0 | 112 | 2.4 | 1.7 | 0.8 | 90 | 1.9 | 1.4 | 0.6 | 160 | 16 |
| LS125 | 125 | 125 | 125 | 5.2 | 3.8 | 1.7 | 100 | 4.1 | 3.0 | 1.4 | 80 | 3.3 | 2.4 | 1.1 | 240 | 22 | |
| LS160 | 160 | 160 | 112 | 9.7 | 7.1 | 3.2 | 90 | 7.8 | 5.7 | 2.6 | 71 | 6.2 | 4.5 | 2.1 | 320 | 35 | |
| LS200 | 200 | 200 | 100 | 16.9 | 12.4 | 5.6 | 80 | 13.5 | 9.9 | 4.5 | 63 | 10.7 | 7.8 | 3.6 | 410 | 49 | |
| Middle size | LS250 | 250 | 250 | 90 | 29.7 | 21.8 | 9.9 | 71 | 23.5 | 17.2 | 7.8 | 56 | 18.5 | 13.6 | 6.2 | 530 | 67 |
| LS315 | 315 | 315 | 80 | 52.9 | 38.8 | 17.6 | 63 | 41.6 | 30.5 | 13.9 | 50 | 33.1 | 24.2 | 11 | 680 | 84 | |
| LS400 | 400 | 355 | 71 | 85.3 | 62.5 | 28.4 | 56 | 67.3 | 49.3 | 22.4 | 45 | 54.1 | 39.6 | 18 | 1100 | 111 | |
| Large size | LS500 | 500 | 400 | 63 | 133.2 | 97.7 | 44.4 | 50 | 105..8 | 77.6 | 35.3 | 40 | 84.6 | 62 | 28.2 | 1240 | 160 |
| LS630 | 630 | 450 | 50 | 188.9 | 138.5 | 63.0 | 40 | 151.1 | 110.8 | 50.4 | 32 | 120.9 | 88.6 | 40.3 | 1540 | 240 | |
| LS800 | 800 | 500 | 40 | 270.7 | 198.5 | 90.2 | 32 | 216.6 | 158.8 | 72.2 | 25 | 169.2 | 124.1 | ||||
