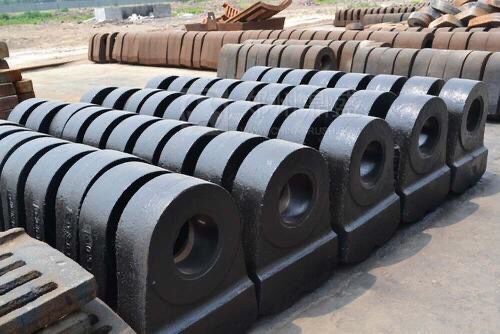

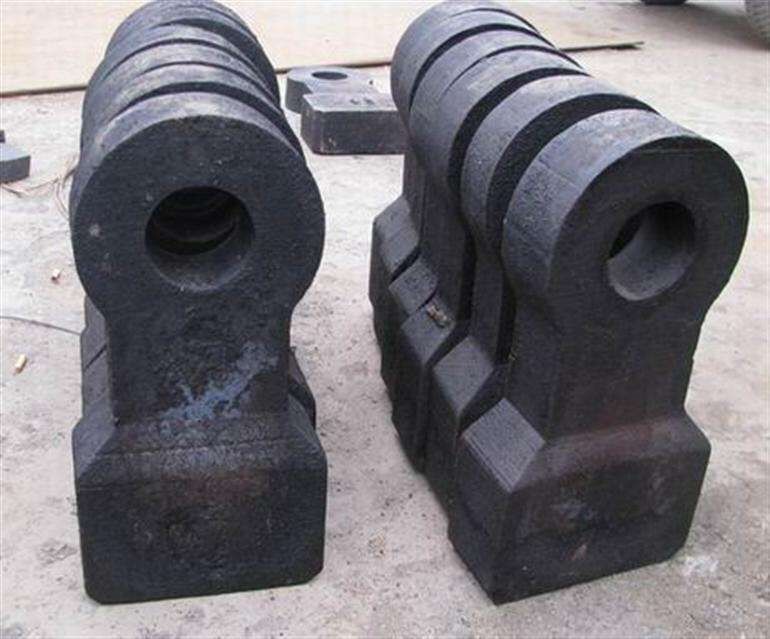

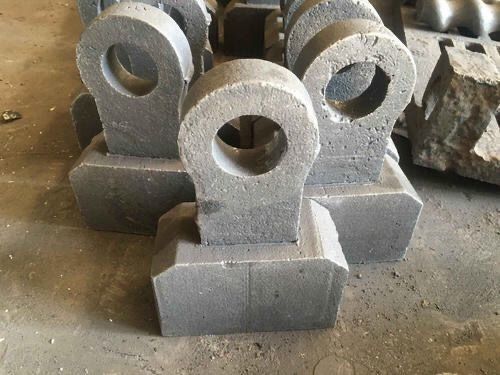

65HRC Manganese Steel Castings Hammers For Hammer Crusher Wear Parts

65HRC Manganese Steel Castings Hammers For Hammer Crusher Wear Parts
65HRC Manganese Steel Castings Hammers For Hammer Crusher Wear Parts 65HRC Manganese Steel Castings Hammers For Hammer Crusher Wear Parts 65HRC Manganese Steel Castings Hammers For Hammer Crusher Wear Parts

Large Image :  65HRC Manganese Steel Castings Hammers For Hammer Crusher Wear Parts

Product Details:
Place of Origin: Henan, China
Brand Name: ZT
Certification: AISI
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Tons
Price: $300.00
Packaging Details: Simple packaging for hammer
Supply Ability: 100000 Ton/Tons per Year
Detailed Product Description
Type: Hammer Crusher Hammer Machine Type: Crusher
Material: High Manganese Steel, High Chrome Crusher Hammer Haedness: 58-65HRC
Processing Type: Casting Use: Ore Mining
Control: Spectrometer Chemical Analysis And Control While Producing Molding Process: Water-glass Sand Casting Or Lost Form Casting
Melting Facility: Medium Frequency Electric Furnace Heat Treatment: Anneal, Quenching, Tempering
Testing: Hardness, Flaw Detector Test Certificate: ISO9001~2015 Passed; BUREAU VERITAS
Port: QingDao,ShangHai,TianJin
High Light:

65HRC Hammer Crusher Wear Parts

,

Manganese Crusher Wear Parts

,

Casting 65HRC manganese hammer

Manganese Steel Castings Hammers for Hammer Crusher Wear Parts
Hammer Description



For crushing equipment Hammer crusher-The main working part of the hammer crusher is the rotor with hammer head. The rotor is composed of main shaft, disc, pin shaft and hammer head.The material is fed into the machine from the upper feed port and crushed by the impact, impact, shearing and grinding of the high-speed hammer. 1. Withstand high impacts, the shank must have high strength and toughness combined with comprehensive mechanical properties. The hammer head should have high hardness and high wear resistance-composite hammer head is the best choice. 2. Hammer head, sieve plate, various lining plates of hammer crusher. Suitable Material:High chrome,bimetal composite,high manganese steel,high manganese insert alloy bar,high manganese welding,medium alloy ,ceramic composite.



1. The handle has good toughness, not easily broken;

2. Rockwell hardness can be HRC 65-67,

3. Good abrasion resistance, long life .

4. Mainly used in machinery in metal recovery smash, mine, metallurgy, chemical industry, cement, petroleum etc.

5. After long-team tracking service, Our alloy hammers’ using life is almost 2-3 times longer than that of high manganese steel hammers, 3-5 times longer than that of the forged hammers. Therefore create considerable economic benefits and social benefits for the users.

Hammer Details:

High Mn Imbedding Cemented Carbide Hammer

Alloy steel material

High Mn with Tungsten Titanium Alloy Rod

Contral

Spectrometer chemical analysis and control while producing

Moulding process

Water-glass sand casting or lost form mould casting

Melting facility

Medium frequency electric furnace

Heat treatment

Anneal, quenching, tempering

Quality Guarantee

One year against manufacturing defeat

Testing

Hardness, flaw detector test

Suit Filed

Cement, mining,quarry,electricity and metallurgy companies

Certificate

ISO9001:2000/ BV/ China Patent No. 200810049101.2




Specifications:

Standard

Chemical component %

C

Mn

Si

Cr

S

P

ZG120Mn13Cr2

1.05~1.35

11~14

0.3~0.9

1.5~2.5

≤0.04

≤0.04

ZG120Mn17Cr2

1.05~1.35

16~19

0.3~0.9

1.5~2.5

Notes:Allowed to join trace V,Ti,Ba and RE and so on.

The mechanical properties of the matrix:

Standard

Lower yield strength Rel
MPa

Tensile strength Rm
Mpa

The section elongation A%

Shock absorption KU2
J

Hardness HBW

ZG120Mn13Cr2

≥390

≥735

≥20

≤300







The High Mn imbedding cemented carbide hammer(alloy hammer) product make by our company use the wear resistant bar made from higher content nano-sized tungsten carbide and titanium carbide. The Rockwell hardness of alloy steel material wear resistant bar is 80HRA~90HRA. We will make the alloy hammer’s matrix with high Mn or super high Mn according to the complexity of hammer drawing. We make sure of the 100% metallurgical bonding of the alloy bar surface and matrix by the method of blowing argon at bottom of furnace, diversified qualitative change, diversified inoculation, and appropriate casting, smelting, heat treating.These processing measure increase the combination property of the High Mn imbedding cemented carbide products made by our company. We meet with great favor from our customers at home and abroad.



The alloy steel material that be crushed by hammer crusher is a tremendous difference. The crusher has different forms and hammers. In the condition of crush hard and tough material such as iron raw, Our high Cr bimetal hammer could bear the cutting from the material but easy be come off or break for the hammer’s toughness property is not good. Though the toughness of supper Mn steel is higher but the wear resistant property is not enough. So hammer and blow bar made from high Mn imbedding cemented carbide is the best choice.

The High Mn imbedding cemented carbide hammer(Inlaid Alloy Hammer / alloy hammer/hammer mill) product made by our company use the wear resistant bar made from higher content nano-sized tungsten carbide and titanium carbide. The Rockwell hardness of wear resistant bar is 80HRA~90HRA. We will make the hammer’s matrix with high Mn or super high Mn according to the complexity of hammer mill. We make sure of the 100% metallurgical bonding of the alloy steel material bar surface and matrix by the method of blowing argon at bottom of furnace, diversified qualitative change, diversified inoculation, and appropriate casting, smelting, heat treating.These processing measure increase the combination property of the High Mn imbedding cemented carbide products made by our company. This kind of alloy steel material hammer is widely used in hammer mill. We meet with great favor from our customers at home and abroad.


Our Services

Aftersales service

LUOYANG ZHONGTAI INDUSTRIES able to provide:

1. ENGINEERED SPARES - DESIGN AND MANUFACTURING

2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES

3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES

5. PREVENTATIVE MAINTENANCE PROGRAMS

6. PREVETATIVE MAINTENANCE SERVICES

7. COMPREHENSIVE MAINTENANCE PROGRAMS

LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands.

Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.

LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

     2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged      parts

     3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.



Q:Delivery time

A: parts lead time 1-2months, machines 2-3months.



Q:Payment terms

A: Accept payment type: T/T, L/C, Western union,Cash.

30% deposit when signed contract. Full payment paid before shipping



Q: Quality warranty?

A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.



Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.
