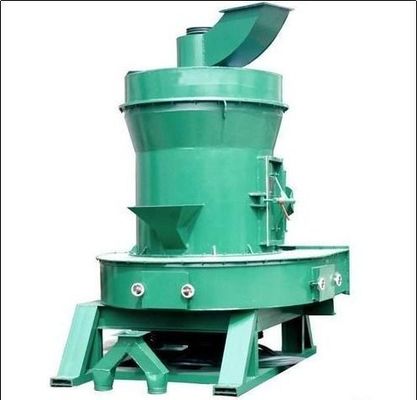

0.613-0.033mm Powder Grinding Machine Energy Saving Raymond Mill

Large Image : 0.613-0.033mm Powder Grinding Machine Energy Saving Raymond Mill

Product Details:

Place of Origin:	China
Brand Name:	ZTIC
Certification:	ISO/CE
Model Number:	YGM

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard shipping packaging
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Product Name:	Raymond Mill	Application:	Crushing Barite, Limestone, Ceramic, Slag
Model:	YGM	Power (Kw):	15-250
Roller No.:	3-6	Roller Size (mm):	210150-500330
Inner Dia. Height & Length(mm):	650150-1900330	Feeding Size (mm):	≤15
Output Size (mm):	0.613-0.033	Capacity (t/h):	0.4-36
High Light:	0.033mm Powder Grinding Machine , 0.613mm Powder Grinding Machine , 0.033mm raymond bowl mill

0.613-0.033mm powder grinding Machine Energy Saving Raymond Mill

Type: Energy Saving Raymond Mill
Feed Size: ≤25mm
Output Size: 0.613-0.033mm
Application: High pressure hanging roller mill for crushing barite, limestone, ceramic, slag and other Mohs hardness of not more than 9.3, humidity below 6% of non-flammable and explosive mines, metallurgy, chemicals, building materials and other industries more than 280 High-fine powder processing materials, finished grain size adjustment in the range of 80-425 head (the smallest 1000 mesh).

0.613-0.033mm Powder Grinding Machine Energy Saving Raymond Mill 0

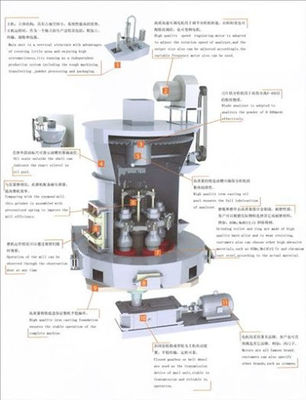

Raymond mill details

1.Disc Type Blade Classifier

This kind of classifier is generally used in the Raymond mill and high pressure grinding mill. It can analysis the powder of
30-425 mesh powder, with the characteristic of stable structure and large capacity.

2.Roller Assembly
Grinding roller and ring are made of high quality hard alloy and is wear resisting. Customers also can choose other high abrasive materials, such as 65Mn, Mn13Cr2Cr and chrominum cast steel, according to the actual material.

3.High Pressure Spring Device
Comparing with the Raymond mill, this grinder is assembled with pressurized spring to improve the mill efficiency. its capacity increases by 10%-20% under the same power condition, and compression force of rollers to material improve 800-1200kgf under the force of high-pressure spring.

Model	Roller No.	Roller Size (mm)	Grind Ring Inner Dia. Height & Length(mm)	Feeding Size (mm)	Output Size (mm)	Capacity (t/h)	Power (Kw)
YGM65	3	210×150	650×150	≤ 15	0.613-0.033	0.4-1.8	15
YGM75	3	260×150	780×150	≤ 15	0.613-0.033	1-3	18.5
YGM85	3	270×150	830×150	≤ 20	0.613-0.033	1.2-4	22
YGM85B	3	270×150	830×150	≤ 20	0.613-0.03	1.2-3.5	22
YGM95	4	310×190	950×190	≤ 25	0.613-0.033	2.1-5.6	45
YGM130	5	410×230	1280×230	≤ 30	0.613-0.033	2.5-9.5	90
YGM160	6	450×300	1600×300	≤ 35	0.613-0.033	8-16	132
YGM190	6	500×330	1900×330	≤ 40	0.613-0.033	18-36	250

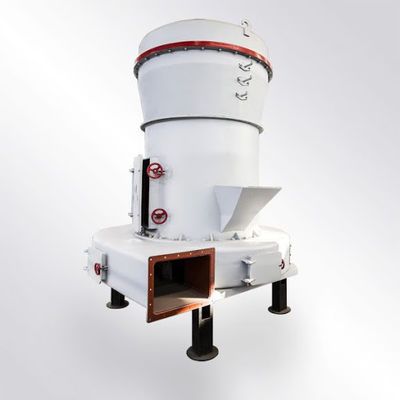

0.613-0.033mm Powder Grinding Machine Energy Saving Raymond Mill 1
