High Efficient 21.95r/min Super Fine Ore Grinding Mill Tube Mill Energy Saving

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

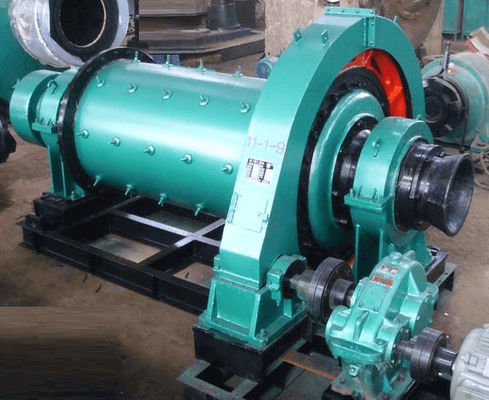

High Efficient 21.95r/min Super Fine Ore Grinding Mill Tube Mill Energy Saving

High Efficient 21.95r/min Super Fine Ore Grinding Mill Tube Mill Energy Saving
High Efficient 21.95r/min Super Fine Ore Grinding Mill Tube Mill Energy Saving High Efficient 21.95r/min Super Fine Ore Grinding Mill Tube Mill Energy Saving High Efficient 21.95r/min Super Fine Ore Grinding Mill Tube Mill Energy Saving High Efficient 21.95r/min Super Fine Ore Grinding Mill Tube Mill Energy Saving

Large Image :  High Efficient 21.95r/min Super Fine Ore Grinding Mill Tube Mill Energy Saving

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Features: High Efficient And Energy Saving Product Name: Tube Mill
Diameter Length: 2200-3200mm Cylinder Rotation Speed: 15-21.95r/min
Capacity(Raw Materials): 17-150tph Cement(Cement): 12-110tph
Motor Power: 380-1400kw Weight: 48.5-213t
Usage: Grinding Cement And Other Materials Material: Raw Materials\Cement
High Light:

21.95r/Min Super Fine Ore Grinding Mill

,

Tube Super Fine Ore Grinding Mill

,

21.95r/Min tube mill machine

high efficient and energy saving super fine grinding mill Tube mill



Tube mill is widely used in building materials, metallurgy, mineral processing, power and chemical industry grinding cement and other materials. The tube mill has a large crushing ratio, large production capacity, strong adaptability to the material, wear parts easy to replace and other characteristics, the tube mill is composed of drive part, rotating part, main bearing, Access device and lubricating part.

High Efficient 21.95r/min Super Fine Ore Grinding Mill Tube Mill Energy Saving 0

Features

1. small running resistance

2. high efficient and energy saving

3. large production capacity

4. low noise

5. Wet and dry intermittently to mill, mix, discharge material

6. a super fine grinding mill

High Efficient 21.95r/min Super Fine Ore Grinding Mill Tube Mill Energy Saving 1



Working Principle

Our tube ball mill is of horizontal, cylindrical and tubular structure. The materials are evenly fed through the charging device to warehouse where there are step scales boards, corrugated scale boards and different specifications of steel balls. When the cylinder rotates, the centrifugal force produced causes the steel balls rising and falling to impact and grinds the materials in the ball mill. The materials are then lead to the second cabin for further milling until they turn into powders and are discharged from the outlet.

High Efficient 21.95r/min Super Fine Ore Grinding Mill Tube Mill Energy Saving 2

Type
Model
Cylinder size
Cylinder Rotation speed
Capacity
Motor Power
Weight
Remarks
Diameter
Length
Raw Meal
Cement
(mm)
(r/min)
(t/h)
(kw)
(t)
Tube Mill
M2265
2200
6500
21.95
17-19
12-14
380
48.5

M2275
2200
7500
21.95
19-21
13-15
380
51.4

M22110
2200
11000
21.95
20-22
14-16
570
79.5

M2470
2400
7000
20.4
22-24
14-15
475
68.5

M24100
2400
10000
20.4
28-30
17-18
630
98.6

M26130
2600
13000
19.7
37-42
25-30
1000
164.8

M3090
3000
9000
18.7
36-44
30-35
1000
157.2

M30110
3000
11000
18.7
55-65
40-47
1250
175

M32120
3200
12000
17.8
68-75
48-56
1400
210

M3475
3400
7500
16.9
56-60
44-48
1000
166.7

M35110
3500
11000
16.5
/
50-55
2000
141
Without main drive
M38120
3800
12000
16.3
/
58-60
2500
225.6
Without main drive
M40130
4000
13000
15.46
/
90-100
2*1600
376

M42110
4200
11000
15.75
/
105-110
2800
254.2
Without main drive
Drying Mill




M2270
2200
7000
21.95
15-17
/
280
46.9

M2670
2600
7000
19.6
22-25
/
570
85

M3290
3200
9000
17.7
48-52
/
1000
126

M35100
3500
10000
16.5
70-75
/
2*630
186.6

M46110
4600
11000
15
140-150
/
2500
272
Without main drive
High-fine cement mill
MX2295
2200
9500
21.4
/
14-15
475
68.2

MX22110
2200
11000
21.4
/
15.1-16.1
570
85.6

MX24110
2400
11000
21.68
/
20.6-22.7
630
108

MX24130
2400
13000
19.4
/
21.6-23.8
800
121

MX26130
2600
13000
19.7
/
24.6-27.1
1000
169.8

MX3090
3000
9000
18.7
/
26.6-28.5
1000
161

MX30110
3000
11000
18.7
/
28.6-32.8
1250
183.5

MX30130
3000
13000
18.7
/
33-36
1250
199.5

MX32120
3200
12000
17.8
/
31.8-38.2
1400
213
