Closed System High Safety 3000 Mesh Ultra Fine Powder Mill Reliability

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

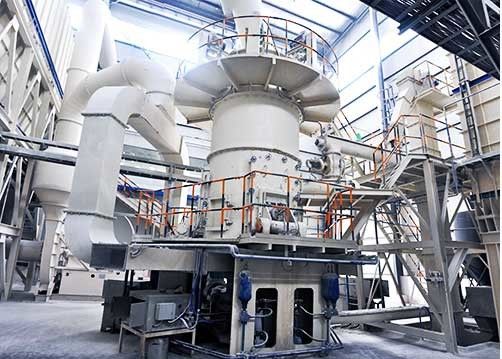

Closed System High Safety 3000 Mesh Ultra Fine Powder Mill Reliability

Closed System High Safety 3000 Mesh Ultra Fine Powder Mill Reliability
Closed System High Safety 3000 Mesh Ultra Fine Powder Mill Reliability Closed System High Safety 3000 Mesh Ultra Fine Powder Mill Reliability Closed System High Safety 3000 Mesh Ultra Fine Powder Mill Reliability Closed System High Safety 3000 Mesh Ultra Fine Powder Mill Reliability

Large Image :  Closed System High Safety 3000 Mesh Ultra Fine Powder Mill Reliability

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Ultra-fine Powder Mill Application: Super Fine Grinding Of All Kinds Of Crisp Materials
Advantages: The Yield Is 40% Higher Than Other Mills High Utilization Rate Of Wear Material: 2-5years
Adjustable Particle Size: 325-3000mesh Ring Diameter(mm): 800-1680
Ring Number (PCS): 3-4 Roller Number(PCS): 18-40
Main Shaft Speed (r. P. Min): 120-240 Input Size (mm): ≤10
High Light:

3000 Mesh Ultra Fine Powder Mill

,

Closed System Ultra Fine Powder Mill

,

3000 Mesh fine powder mill grinder

Closed system High safety and reliability Ultra-fine powder mill



Ultra-fine powder mill is suitable for the super fine grinding of all kinds of crisp materials whose Moh's hardness is blow 7, such as calcium carbonate, barite, dolomite, calcite, limestone, kaolin, bentonite, marble, gypsum, quartz, feldspar, alay, talc, fluorite, white mud, mica, refractory material, glass, total about 100 kinds of materials.

Closed System High Safety 3000 Mesh Ultra Fine Powder Mill Reliability 0

Working Principle

When the grinding mill is at work, the main bearing and each dial are driven by electromotor through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger. The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers. The high-pressure air blower constantly inhales air, airflow with crushed materials are brought to classifier whose high-speed impeller will screen the airflow: The unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; A small proportion of the fine powders, with airflow, moves to the dust cleaner. The materials from the above two lots are sent by the conveyor to get finished powders packed. In addition, filtered clean air will be emitted from muffler in the end.

Closed System High Safety 3000 Mesh Ultra Fine Powder Mill Reliability 1

Advantages of Ultra-fine powder mill

1.The yield is 40% higher than other mills.



2.High utilization rate of Wear material:2-5years.



3.Adjustable particle size:325-3000mesh.



4.High safety and reliability. The design of the mill is rigorous, so no screw loosening to damage the machine.



5.Closed system, so it is the green and ideal equipment for environment protection.



Closed System High Safety 3000 Mesh Ultra Fine Powder Mill Reliability 2

Technology Data of Ultra-fine powder mill

Model HGM80 HGM90 HGM100 HGM125 HGM1680
Ring Diameter(mm) 800 900 1000 1250 1680
Ring Number (PCS) 3 3-4 4 4 4
Roller Number(PCS) 18-21 24-29 28-36 30-44 30-40

Main Shaft Speed

(r. p. min)

230-240 200-220 180-200 135-155 120-130
Input Size (mm) ≤10 ≤10 ≤15 ≤15 ≤20
Finished Size (um/mesh) 74-5
(200-2500)
74-5
(200-2500)
74-5
(200-2500)
100-6
(150-2000)
100-9
(150-1500)
Capacity (t/h) 0.4-4.5 0.6-6.5 1-9 2-16 3.8-30

Outlet Size

L*W*H (m)

13.9*4*6.2 14.7*4.8*7.2 18*4.6*8.6 14*9*10.25 26.3*7.5*11.9
