Detailed Product Description
Product Name: Cement Vertical Mill Condition: New
Type: Vertical Mill& Vertical Roller Mill Motor Type: AC Motor
Power(W): 500-5000kw Capacity(t/h): 30-1000
Model: LGSM/LGM/LKM Vertical Mill Power Consumption Of System: 25~30 KWh/t
Raw Material Vertical Mill: Output 70~720 T/h Cement Vertical Mill: Output 55~250 T/h
Coal Vertical Mill: Output 5~70 T/h Slag Vertical Mill: Output 50~180 T/h
Material Medium Friction (MFs): 0.9~1.0 Refined Powder Moisture: 0.5~1.0%
Warranty: 12 Month Port: QingDao,ShangHai,TianJin
High Light:

800Tph LM Vertical Roller Mil

,

5Tph LM Vertical Roller Mil

,

800Tph vrm cement mill

LM Vertical Roller Mill

Product Description

5~800 tph Vertical Mills
• Cement Vertical Mill
• Coal Vertical Mill
• Raw Vertical Mill
• Slag Vertical Mill

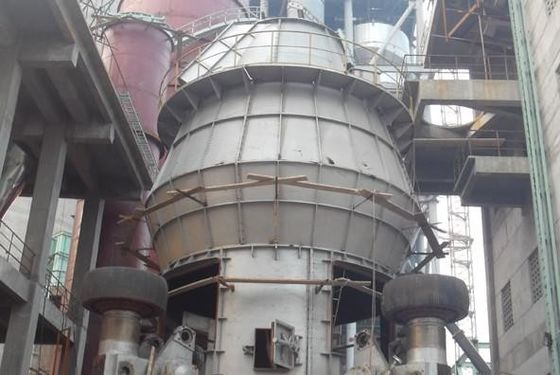

LM Vertical Grinding Mill integrates five functions of crushing, grinding, powder selection, drying and material conveying. It is characterized by centralized technological process, small occupational area, low investment, high efficiency, energy conservation and environment protection. LM Series Vertical Roller Mill is used to pulverize materials, material can be pulverized into 80-400Mesh with this mill.



                          Slag Vertical Mill for  300000 -1200000 TPY  Slag/Raw Grinding Plant

                                     500000 TPY  Cement Vertical Mill Grinding Plant

As a professional manufacturer and supplier of vertical mill in China, CITICIC can also provide you with various other machines, such as vertical coal mill, jaw crusher, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Iran, Japan, South Korea, Bengal, Pakistan, Turkey, Burma, Vietnam, South Africa, Columbia, Bolivia, etc. If you need vertical slag mill, please don't hesitate to contact us.
Cement Vertical Mill
  • Application Industry
    Cement Plant, Grinding Station
  • Output
    55~250 t/h
  • Specific Surface
    3300~3800 cm²/g
  • Power Consumption of System
    25~30 kWh/t
    Features
    1. Technique and technology is mature and stable
    CITICIC’s cement vertical roller mill in the production of cement specific surface area up to 3800 cm²/ g with stable and reliable quality, it already have been the ability completely to replace tube mill.
    2. Reducing the power consumption of cement clinker preparation effectively
    According to the display of pulverized coal measured data, it can be saving electricity above 30% use of vertical roller mill production per ton cement clinker than traditional tube mill, and the power saving effect is very remarkable.
    3. Stable, high-efficiency and environmental protection
    There is a low vibration and noise in overall system, and equipment with whole sealing, system working under negative pressure with no dust overflow, clean environment. Therefore, cement vertical roller mill meets the national environmental protection requirements. With working mechanism changing, cement vertical roller mill can be reduced friction and improved service life.
    Specifications
    Model
    Grinding diameter
    d(mm)
    Roll diameter
    d(mm)
    Roller number
    (n)
    Standard power
    P(kw)
    capacity
    Q(t/h)
    LKCM30.31
    3,000
    1,600
    3
    1250
    55~60
    LKCM32.31
    3,200
    1,700
    3
    1600
    65~80
    LKCM35.41
    3,500
    1,800
    4
    1800
    85~100
    LKCM40.41
    4,000
    1,900
    4
    2500
    115~125
    LKCM43.41
    4,300
    2,120
    4
    3000
    135~145
    LKCM46.41
    4,600
    2,240
    4
    3350
    150~160
    LKCM48.41
    4,800
    2,240
    4
    3550
    170~180
    LKCM50.41
    5,000
    2,360
    4
    3900
    190~200
    LKCM53.41
    5,300
    2,500
    4
    4600
    210~230
    LKCM56.61
    5,600
    2,500
Vertical Raw Mill-Raw Material Vertical Mill
  • Application Industry
    Cement Plant
  • Output
    70~720 t/h
  • Final Product Fineness
    80 μmR 12~15%
  • Power Consumption of System
    17~20 kWh/t
Features of Raw Vertical  Mill:
Our vertical raw mill has various advantages when compared with other similar machines. Detailed information will be given in the following.
1. High grinding efficiency: advanced grinding principles makes it possible to save as much as 20~30% power consumption when compared with the ball mill. With the increasing of moisture content, it can save more and more electricity.
2. Strong drying capacity: it can make use of the hot waste gases from the kiln to do drying, and it is capable of drying and grinding raw materials with moisture content as much as 15%.
3. Small in size, and simple process flow: it has integrated crushing, drying, grinding, separating and conveying into one body.
4. Low noises and little dust: there is no direct contact between the grinding rollers and grinding disc. So metallic impact is avoided and its noises is 20~25 decibels lower when compared with ball mill. Totally closed negative pressure operation has employed by this vertical raw mill, so there is no dust during the operation, which can help to keep the production environment clean.
5. Low wear rate and little metallic pollution: its metal wear is only 5~10g/t.
6. With stable chemical composition and even particle size, its products are quite easy to calcine.
Parameters of Raw Vertical Mill:
Raw Vertical Mill Specifications
Model Grinding diameter
D
Roll diameter

D
Roller number Standard power
P
capacity
Q
  (mm) (mm) (n) (kW) (t/h)
LKMR22.30 2200 1400 3 550 70
LKMR26.30 2600 1600 3 790 100
LKMR28.30 2800 1750 3 900 115
LKMR30.30 3000 1700 3 1000 120
LKMR32.30 3200 1500 3 1400 160
LKMR34.30 3400 1500 3 1600 180
LKMR36.41 3600 1600 4 1800 200
LKMR38.41 3800 1700 4 1900 230
LKMR40.41 4000 1800 4 2240 260
LKMR43.41 4300 1900 4 2500 310
LKMR46.41 4600 2060 4 3150 350
LKMR48.41 4800 2240 4 3350 390
LKMR50.41 5000 2360 4 3500 420
LKMR53.41 5300 2500 4 3800 470
LKMR56.41 5600 2600 4 4500 540
LKMR59.61 5900 2600 6 5000 610
LKMR63.61 6300 2700 6 6000 720
Note: mill spectral pattern benchmark

Coal Vertical Mill
  • Application Industry
    Cement Plant, Steel Mill, Power Plant
  • Output
    5~70 t/h
  • Final Product Fineness
    80 μmR 3%
  • Power Consumption of System
    18~22 kWh/t
Description of Coal Vertical Mill:
This vertical coal mill is typically designed to process materials in medium hardness, like soft coal or bituminous coal, and it is mainly used in positive pressure pulverizing system of soft coal. It is widely used in electricity field, metallurgy sector, building material industry, chemical industry, and so on.
It has features of low energy consumption, small occupation area, easy operation, low noises, reliable performance, big crushing ratio, long-lifespan grinding components, strong applicability, and so on.
Technical Parameters of Vertical Coal Mill:
Coal Vertical Mill Specifications
Model Grinding diameter Roll diameter Roller number Standard power  capacity
D(mm) D(mm) (n) P(kW) (t/h)
LKMC12.20 1200 900 2 110 5
LKMC16.20 1600 1000 2 250 12
LKMC18.20 1800 1120 2 330 18
LKMC20.30 2000 1250 3 430 20
LKMC22.30 2200 1400 3 590 30
LKMC23.30 2300 1450 3 640 35
LKMC26.30 2600 1600 3 810 44
LKMC28.30 2800 1750 3 1000 55
LKMC30.30 3000 1900 3 1250 65
LKMC35.30 3500 1900 3 1400 70
Note: Mill spectral pattern benchmark

Slag Vertical Mill
  • Application Industry
    Cement Plant, Grinding Station, Steel Mill
  • Output
    50~180 t/h
  • Specific Surface
    4200~4500 cm²/g
  • Power Consumption of System
    ≤43 kWh/t
Description of Vertical Slag Mill:
Our vertical slag mill is typically designed to deal with industrial waste residues generated by the blast-furnace ironmaking. Due to its high physical and chemical activity, and potential hydraulicity, the slag has been widely as admixture matters in the cement industry. And the slag can replace the cement in the concrete to improve the quality and durability of the concrete.
 Here in CITIC HMC Co., Ltd, our vertical slag mill has features of high grinding efficiency, strong dry capacity, easy adjustment, low noises, low electricity consumption, simple process flow, little abrasion, and so on.


Slag Vertical Mill Specifications

Model Grinding diameter Roll diameter Roller number   power Scapacity
(mm) (mm) (n) (kW) (t/h)
LKMS33.31 3200 1700 3 1600 50
LKMS35.41 3500 1800 4 1800 60
LKMS40.41 4000 1900 4 2240 70
LKMS43.41 4300 2120 4 2800 90
LKMS46.41 4600 2240 4 3150 105
LKMS48.41 4800 2240 4 3550 125
LKMS50.41 5000 2360 4 3800 140
LKMS53.41 5300 2500 4 4200 160
LKMS56.61 5600 2500 6 5000 180

Note: mill spectral pattern benchmark

(1) Material medium friction (MFs)=0.9~1.0;
(2) Material moisture max 15%;
(3) Refined powder granularity 4200~4500 cm²/g;
(4) Refined powder moisture 0.5~1.0%;
 (5) The concrete mill installed power and technology parameter will be adjusted appropritely basing on the actual material property and requirements of owner;

fault handling scheme

Due to the bad working conditions in the process of cement vertical mill, the common problems such as abrasion of vertical grinding roller, lining plate of grinding disc, abrasion of bearing chamber of vertical grinding roller and leakage of reducer often occur.Vertical slow roll body and wear-resisting lining in use process, once appear, fit clearance, will make between ontology and liner wear, combined with the hot air and constantly scour for cement particles to cooperate, and lead to groove, the impact to collide between ontology and lining board, serious when fracture, lining crack and even damage to the machine, especially the damage of reducer,Cause a vicious incident.Once this kind of problem occurs, the general repair method is difficult to solve, the replacement cost is high;The assembly requirements of vertical grinding roller bearings are strict, and the bearings are generally assembled by cooling them in dry ice.Once there is a gap between the bearing and the bearing room, it will affect the normal operation of the bearing, lead to bearing fever, serious cases will lead to bearing burning phenomenon;Leakage of reducer in vertical mill not only affects the appearance of the machine, but also wastes oil and causes great trouble to the maintenance of equipment.[1]

The above problems are generally difficult to repair with repair welding process, cast iron welding is not good and easy to cause more serious secondary damage to the parts, replacement cost is high and long.Western countries mostly use polymer composite materials to solve this kind of problems, among which the more widely used is the Meijia Wah series.Its material characteristic of the compressive strength and good plastic deformation and strong machining performance, in the repair of such problem reflects the characteristics of fast, convenient, durable, save a lot of valuable production downtime for the enterprise, and makes enterprises learned a new maintenance technology, in the similar problems again, enterprise can independently solve in the first time.

item description
compared with raymond mill high capacity
compared with ball mill energy saving



Vertical Mineral Mill Series

Models and parameters Vertical Mineral Mill Series
LM130K LM150K LM170K LM190K LM220K LM280K
Plate diameter (mm) 1300 1500 1700 1900 2200 2800
Capacity (t/h) 10-28 13-38 18-48 23-68 36-105 50-170
Output fineness μm 170-40 170-40 170-40 170-40 170-45 170-45
Mesh 80-400 80-400 80-400 80-400 80-325 80-325
Max feed size(mm) <38 <40 <42 <45 <50 <50
Main motor (kW) 200 280 400 500 800 1250



Vertical Coal Mill Series

Models and parameters LM80M LM110M LM130M LM150M LM170M LM190M LM220M LM240M LM280M
Plate diameter (mm) 800 1100 1300 1500 1700 1900 2200 2400 2800
Grinding roller (piece) 2 2 2 2 2 2 2 3 3
Capacity (t/h) 3~5 5~9 10~17 16~22 20~30 26~40 35~50 50~65 60~90
Coal powder fineness (R0.08mm) 5~20% 5~20% 5~20% 5~20% 5~20% 5~20% 5~20% 5~20% 5~20%
Max feed size(mm) <30 <30 <38 <40 <42 <45 <50 <50 <50
Main motor (kW) 55 110 185 250 315 400 500 710 900



Vertical Slag Mill Series

Models and parameters Vertical Slag Mill Series
LM130N LM150N LM170N LM190N LM220N LM280N
Plate diameter (mm) 1300 1500 1700 1900 2200 2800
Capacity (t/h) 10-28 13-38 18-48 23-68 36-105 50-170
Output fineness μm 170-40 170-40 170-40 170-40 170-45 170-45
Mesh 80-400 80-400 80-400 80-400 80-325 80-325
Max feed size(mm) <38 <40 <42 <45 <50 <50
Main motor (kW) 200 280 400 500 800 1250



Vertical Fine-powder Mill Series

Models and parameters LM130X-GX LM150X-GX LM170X-GX LM190X-GX LM220X-GX
Plate diameter (mm) 1300 1500 1700 1900 2200
Grinding roller (piece) 3 3 3 3 3
Max feed size(mm) 10 20 20 20 20
Output fineness (D97) 325~600 mesh 325~600 mesh 325~600 mesh 325~600 mesh 325~600 mesh
Capacity (t/h) 4~12 6~14 8~20 13~26 15~30
Powder classifier (kW) 45 55 75 90 110
Main motor (kW) 220 280 400 500 560



Vertical Pre-grinding Mill Series

Models and parameters LM150Y LM170Y LM190Y LM250Y LM340Y
Plate diameter (mm) 1500 1700 1900 2500 3400
Grinding roller (piece) 2 2 2 3 3
Max feed size(mm) 20 20 20 20 20
Feed Capacity (t) 15~25 25~40 35~50 80~120 200~250
Output fineness 1 (R0.08mm) ≤15% ≤15% ≤15% ≤15% ≤15%
Output capacity 1 (t/h) 6~10 10~16 14~20 32~48 80~100
Output fineness 2 (R0.2mm) ≤5% ≤5% ≤5% ≤5% ≤5%
Output capacity 2 (t/h) 9~15 15~24 21~30 48~72 120~150
Mill cycle throughput (t/h) 60~100 100~160 140-200 320-480 800-1000
Main motor (kW) 280 450 560 1400 2500



GX Series Fine Vertical Grinding Mill

Model LM110X-GX LM130X-GX LM150X-GX LM190X-GX LM220X-GX
Grinding Roller(pcs) 3 3 3 3 3
Turntable Pitch Diameter(mm) 1100 1300 1500 1900 2200
Fineness of Finished Product(mesh) 400-600 400-600 400-600 400-600 400-600
Fineness of Grinding Material(mm) <5 <5 <10 <10 <10
Size of Grinding Material(mm) 10 10 20 20 20
Moisture of Grinding Material(%) <3% <3% <3% <3% <3%
Capacity(t/h) 3-8 4-12 6-14 13-26 15-30
Motor Power of Main Engine(kw) 160 220 280 500 560
Motor Power of Powder Concentrator(kw) 30 45 55 90 110

Y Series Pre-grinding Vertical Grinding Mill

Model LM150Y(for clinker) LM190Y(for clinker) LM250Y(for clinker) LM340Y(for clinker) LM150Y(for limestone) LM170Y(for limestone) LM190Y(for limestone) LM250Y(for limestone) LM340Y(for limestone)
Grinding Roller(pcs) 2 2 3 3 2 2 2 3 3
Turntable Pitch Diameter(mm) 1500 1900 2500 3400 1500 1700 1900 2500 3400

Company Information



CITICIC began in 1956-The  largest mining equipment and cement equipment manufacturers in China.CITICIC is a global supplier of technology and services to customers in the process industries,including
Mining,Construction,Metallurgical,Environmental,Power,Chemical,Marine,Casting&Forgings.
CITIC IC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC IC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems.
Our factory in Luoyang covers more than 3 million square meters, of which 2 million square meters is under cover. It has a total workforce of approximately 10,000 employees of which more than 1,200 are engineers.
CITIC IC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC IC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems Etc.




Our Services

Aftersales service
CITIC Heavy Industries is your business partner in the After Market.

CITICIC  able to provide:

1.    ENGINEERED SPARES -  DESIGN AND MANUFACTURING

2.    LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES

3.    HUGE MACHINE SHOP CAPABILITIES

4.    TRAINING PROGRAMMES

5.    PREVENTATIVE MAINTENANCE PROGRAMS

6.    PREVETATIVE MAINTENANCE SERVICES

7.    COMPREHENSIVE MAINTENANCE PROGRAMS

 CITIC’s Field Service Engineers are trained specifically in the CITIC brand group products but are capable of undertaking the servicing of other OEM brands.

 Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.

 CITICIC also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.

FAQ

Quality Control

Physical & Chemical Identification Center

CITICIC owns a professional testing and metrology institute which provides advanced testing methods such as nondestructive testing, industrial chemical analysis, metallographic testing and analysis, mechanical testing, sample preparation, meter/length measurement, weighing apparatus verification, and weighman inspection. Our metrology institute has taken a leading role in China.

CITICIC owns nearly two hundred types of advanced testing equipment, nine different measurement standards and nearly twenty types of world-class testing equipment which have been imported from international locations such as Germany, Japan, USA, UK and Belgium.

vertical mill company show

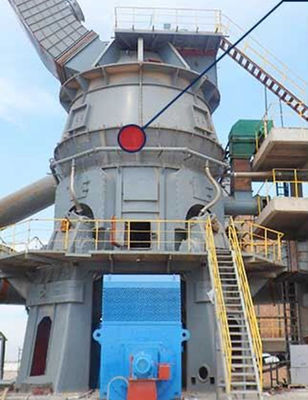

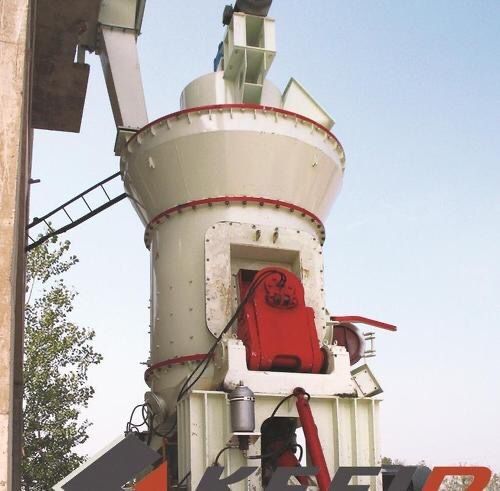

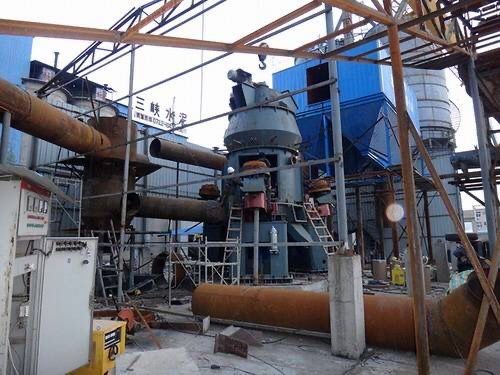

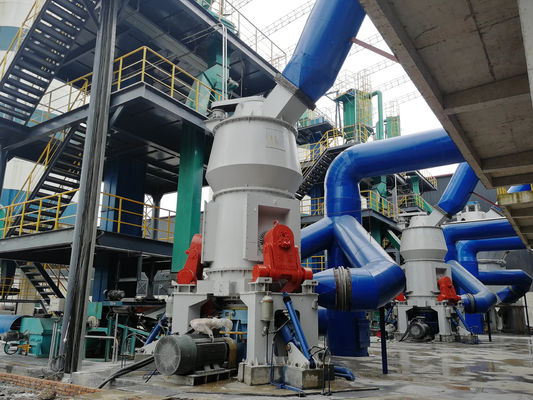

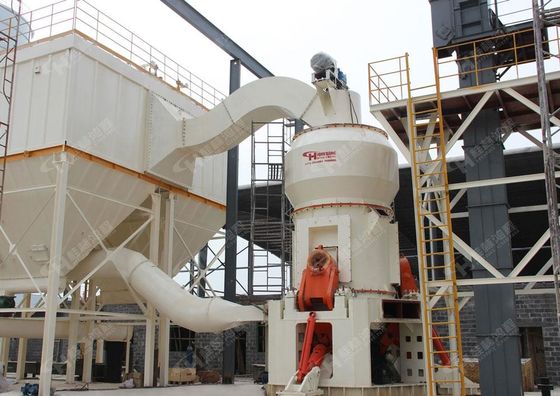

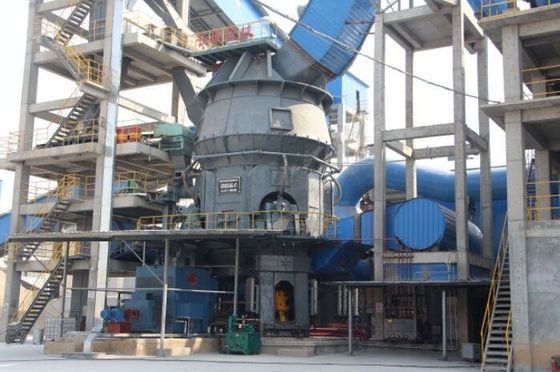

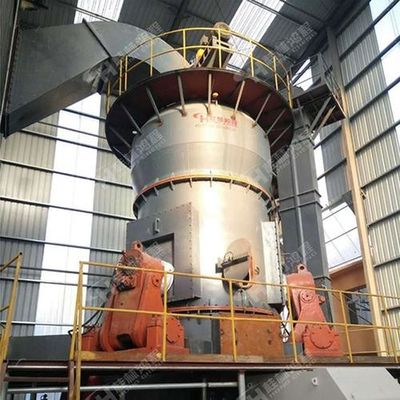

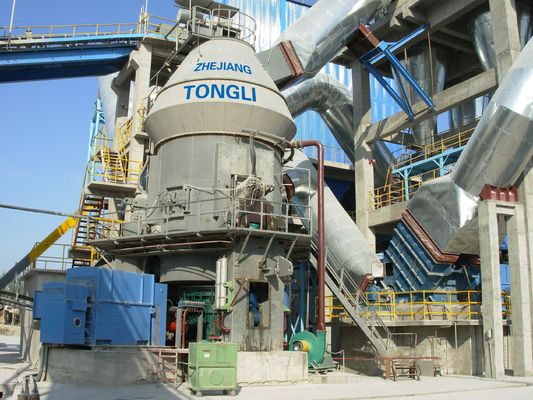

5~800 Tph LM Vertical Roller Mill Crushing Grinding Material Conveying 05~800 Tph LM Vertical Roller Mill Crushing Grinding Material Conveying 15~800 Tph LM Vertical Roller Mill Crushing Grinding Material Conveying 25~800 Tph LM Vertical Roller Mill Crushing Grinding Material Conveying 3

Contact Details
Luoyang Zhongtai Industrial Co., Ltd.

Contact Person: sales

Tel: +8618637916126

Send your inquiry directly to us (0 / 3000)
