Product Name: | Coarse Hammer Crusher | Keyword: | Coarse Powder Mill |
---|---|---|---|
Rotor Diameter/mm: | 750-1150 | Rotor Width/mm: | 800-1500 |
Rotor Speed R/min: | 550-1000 | Feed Head Size/mm: | 320*930 |
Feeding Size/mm: | ≤50 | Finished Size/mm: | ≤3 |
Capacity T/h: | 10-100 | Power/kw: | 55-75 |
High Light: | 100t/H Small Coarse Powder Mill,European Version Coarse Powder Mill,100t/H Coarse Hammer Crusher |
low investment European Version Coarse Hammer Crusher small Coarse Powder Mill
Product description
European Version Coarse Hammer Crusher is engaging in crushing various rocks and stones with comprehensive strength not higher than 320 MPa into coarse powder and small particles, it is widely used in metallurgy, mining, chemical, cement, coal, sand-making, coal gangue, construction, refractory materials and ceramic industries.
Advantages and features
1/High capacity and low power consumption;
2/Uniform particle size with high crushing and crushing ratio;
3/Simple structure;
4/Easy operation; low investment.

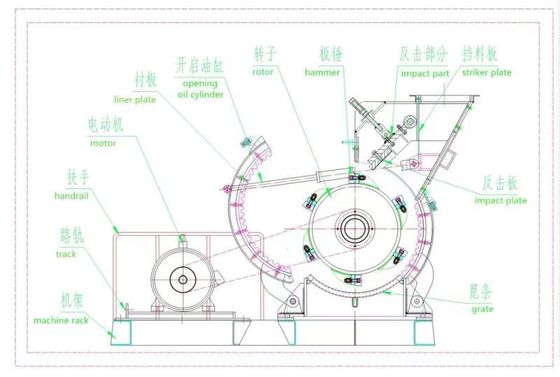

European version coarse hammer crusher mainly consists of frame, rotor, support iron and grate bars. The frame is divided into two parts: upper part and lower part, which are welded by steel plates after being cut. Liners made of high manganese steels within the frame can be replaced after being worn out. The rotors consist of turn plates, pin shafts, and hammers which are grouped regularly in the main shaft. The main unit drives the main shaft through the motor and triangle belts, which, in turn, rotates the rollers. Large materials entering the crusher through the feed inlet are firstly crushed by the high-speed hammers, and then thrown fiercely to the support iron for further crushing. Qualified materials crushed will be screened out and exit from the gap of the grate bars while the unqualified will be left in the crushing cavity to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the grate bars. The gap between the rotors and the grate bars can also be adjusted according to different requirement. To avoid the plugging of the crusher, the proportion of water for the crushing materials is no more than 20%
Parameters
Type | PC4008-75 | PC40012-90 | PC40015-132 |
Rotor Diameter/mm |
750 | 900 | 1150 |
Rotor Width/mm |
800 | 1200 | 1500 |
Rotor Speed r/min |
800-1000 | 800-1000 | 550-800 |
Feed head size/mm |
320*930 | 400*1200 | 500*1500 |
Feeding Size/mm |
≤50 | ≤60 | ≤80 |
Finished Size/mm |
≤3 | ≤3 | ≤8 |
Capacity t/h |
10--30 | 30--60 | 50--100 |
Powder/kw |
55-75 | 75-90 | 110-132 |
Hammer Number (piece) |
18 | 32 | 32 |
Overall Size L*W*H/mm |
2310*1665*1610 | 2840*2100*2020 | 3720*2650*2540 |
Note: Any changes of technical data shall not be prior advised.

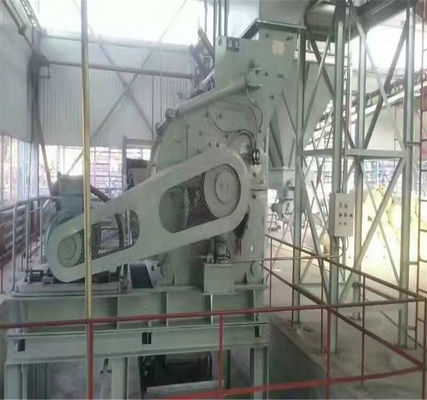

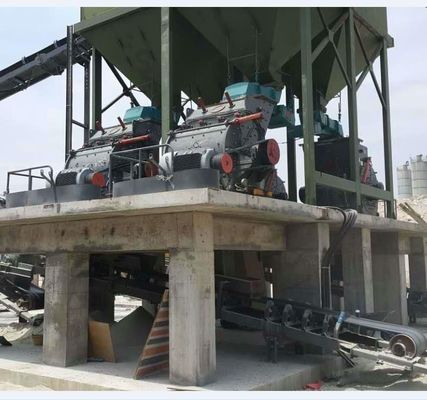

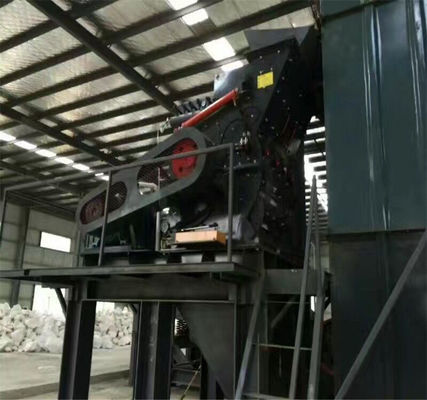

Working Site
