Mining Apron 1000tph Conveying Hoisting Machine Chain Plate Conveyor For Hard Rock

Large Image : Mining Apron 1000tph Conveying Hoisting Machine Chain Plate Conveyor For Hard Rock

Product Details:

Place of Origin:	Henan, China
Brand Name:	CITIC LK
Certification:	ISO/CE

Payment & Shipping Terms:

Minimum Order Quantity:	>=1 Sets
Price:	$5,000.00
Packaging Details:	Standard packing or according to customer's requirement
Supply Ability:	500.0 Set/Sets per Year

Contact Now

Detailed Product Description

Product Name:	Apron Feeder	Application:	Mining, Transporting
Power Type:	Diesel	Capacity(t/h):	20-1000 Th, 20-1000 Th
Dimension(LWH):	311018001600mm	Weight:	5200kg
Warranty:	1 YEAR	Model:	WBQ/WBL/WBZ Apron Feeder
WBQ Apron Feeder:	Light Duty Apron Feeder	WBL Apron Feeder:	Medium Duty Apron Feeder
WBZ Apron Feeder:	Heavy Duty Apron Feeder	Width(mm):	500-2500
Length(mm):	2000-19000	Speed(m/s):	0.006-0.02
Feed Size(mm):	500-1800	Port:	QingDao,ShangHai,Tianjin
High Light:	1000tph Conveying Hoisting Machine , 1000tph Chain Plate Conveyor , Mining Apron Chain Plate Conveyor

Product Description

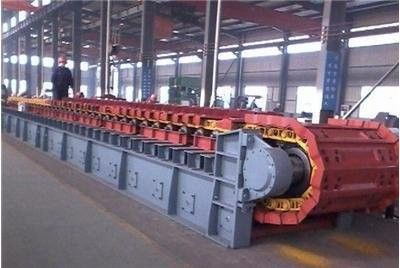

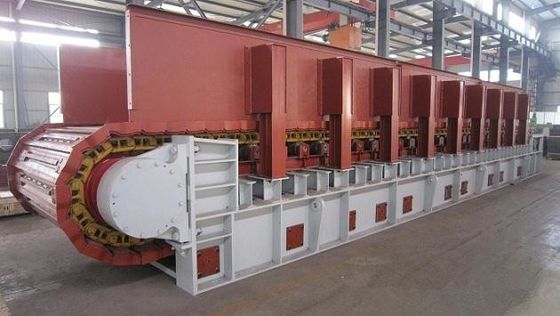

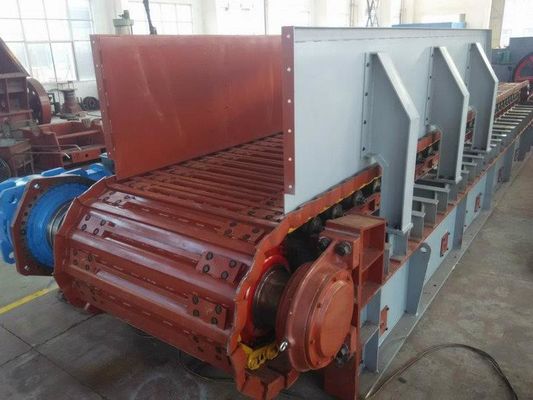

Mining Apron Feeder

Description of Apron Feeder (Plate Feeder):

High Capacity Mining Apron Chain Plate Feeder for Hard Rock is a large machine that carries materials through the parts of a manufacturing or industrial process. These machines resemble short conveyor belts, and may also be known as plate feeders or apron conveyors. high capacity mining apron chain plate feeder machines allow engineers and process managers to automatically control the volume of materials that are added to a process, and regulate the rate at which these materials are added. To withstand the heavy weight of these types of materials, the belt portion of the high capacity mining apron chain plate feeder is made from thick steel trays, pans or caterpillar chain plate. Chains along either end of the feeder help move the trays along the conveyor area, and are powered by an industrial motor or engine. In mining, the high capacity mining apron chain plate feeder carries rocks and minerals for crushing, or further processing.

The technical data of the light duty Apron Feeder:

Model	width(mm)	Length(mm)	Speed(m³/h)	Feed Size(m/s)	Capacity(mm)
WBQ500-2	500	2000	7-88	0.05-0.4	180
WBQ500-3		3000
WBQ500-4.5		4500
WBQ500-6		6000
WBQ500-9		9000
WBQ500-12		12000
WBQ630-3	630	3000	11-175	0.04-0.4	200
WBQ630-4.5		4500
WBQ630-6		6000
WBQ630-9		9000
WBQ630-12		12000
WBQF630-15		15000
WBQ800-3	800	3000	19-308	0.04-0.4	350
WBQ800-4.5		4500
WBQ800-6		6000
WBQ800-9		9000
WBQ800-12		12000
WBQ800-15		15000
WBQ800-18		18000

The technical parameters of medium duty Apron Feeder:

Model	width(mm)	Length(mm)	Speed(m/s)	Feed Size(mm)	Capacity(t/h)
WBL100-6	1000	6000	0.01-0.1	≤ 500	80-160
WBL100-12	1000	12000	0.05-0.1	≤ 500	60-130
WBL120-4	1200	4000	0.014-0.08	≤ 600	45-150
WBL120-6	1200	6000	0.01-0.1	≤ 600	80-160
WBL120-11	1200	11000	0.01-0.1	≤ 600	50-100
WBL120-19	1200	19000	0.014-0.09	≤ 600	45-150
WBL125-6	1250	6000	0.014-0.08	≤ 700	45-150
WBL125-12	1250	12000	0.014-0.08	≤ 700	45-150
WBL140-8	1400	8000	0.017-0.17	≤ 900	100-200
WBL140-16	1400	16000	0.006-0.06	≤ 900	20-200
WBL150-5	1500	5000	0.014-0.08	≤ 700	85-288
WBL150-15	1500	15000	0.006-0.06	≤ 700	20-200
WBL150-10.5	1500	10500	0.006-0.06	≤ 700	20-200
WBL160-6	1600	6000	0.017-0.17	≤ 800	61-610
WBL160-9	1600	9000	0.076	≤ 800	180
WBL180-8	1800	8000	0.022-0.046	≤ 800	100-1000
WBL180-12	1800	12000	0.05	≤ 800	360
WBL220-10	2200	10000	0.018-0.055	≤ 1500	220-680
WBL240-10	2400	10000	0.018-0.055	≤ 1500	220-680

The technical parameters of heavy duty apron feeder:

Model	width(mm)	Length(mm)	Speed(m/s)	Feed Size(mm)	Capacity(t/h)
WBZ160-9	1600	9000	0.01-0.07	≤ 1000	27-270
WBZ180-8	1800	8000	0.01-0.07	≤ 1000	≤ 500
WBZ180-8.75	1800	8750	0.01-0.07	≤ 1000	≤ 500
WBZ180-9	1800	9000	0.01-0.07	≤ 1000	≤ 500
WBZ180-9.8	1800	9800	0.01-0.07	≤ 1000	≤ 500
WBZ180-10	1800	10000	0.01-0.07	≤ 1000	≤ 500
WBZ200-9.8	2000	9800	0.01-0.07	≤ 1000	≤ 500
WBZ220-10	1800	10000	0.01-0.07	≤ 1200	≤ 700
WBZ230-10	2300	10000	0.01-0.07	≤ 1500	≤ 800
WBZ240-10	2400	10000	0.02-0.06	≤ 1600	≤ 850
WBZ250-11.5	2500	11500	0.01-0.07	≤ 1800	550-900
