| Type: | Blast Furnace Hoist | Usage Way: | Lifting Or Flat Drag |
|---|---|---|---|
| Rated Tension (KN): | 50-80 | Roll Diameter: | 325*640 |
| Roll Rotating Speed R/mm: | 5.49-8.1 | Rope Capacity M: | 200-300 |
| Rated Power KW: | 11-15 | Rated Rotating Speed R/min: | 970 |
| Dimension (L*W*H): | 1550*1160*800 | Weight(Kg): | 950-1965 |
| High Light: | 300m Blast Furnace Skip Hoist,200m Blast Furnace Skip Hoist,200m skip hoist design |
||
Product Description

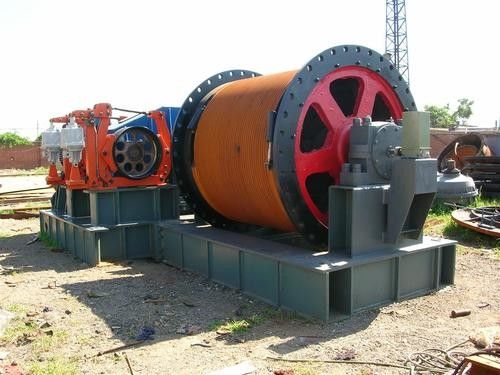

Wire rope electric blast furnace hoist can be used alone, it can also be used as components of cranes, roads, and mine hoists. It is widely used because of its simple operation, large amount of roping, and convenient displacement. Mainly used in construction, water conservancy projects, forestry, mining, docks and other materials lifting or flat drag.
Details

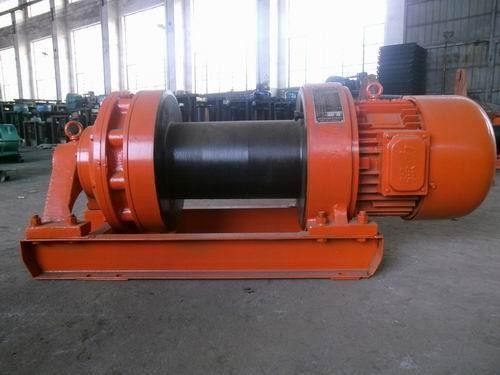

JM low speed wire rope electric blast furnace skip hoist is gears reducer driving mainly used for hoisting pull and-unloading tow the weight drop .For example steel ,installation and disablement of mechanical equipment .It is suitable for construction and installation engineering of construction institutional enterprise mincing area factory and etc.
| Model | JM5 | JM5 | JM8 | |
| Rated Tension (KN) | 50 | 50 | 80 | |
| Roll | Diameter | Φ325*640 | Φ325*700 | Φ420*900 |
| Rotating Speed r/mm | 8.1 | 8 | 5.49 | |
| Rope Capacity m | 200 | 200 | 300 | |
| Wire rope | Diameter mm | 19.5 | 19.5 | 26 |
| Specification | 6*19 | 6*19 | 6*19 | |
| Lifting Speed m/min | 9 | 9 | 8 | |
| Motor | Motor | Y160L-6 | YZR160L-6 | YZR180L-6 |
| Rated Power KW | 11 | 11 | 15 | |
| Rated rotating speed r/min | 970 | 960 | 960 | |
| Dimension (L*W*H) | 1550*1160*800 | 1550*1300*800 | 1730*1565*890 | |
| Weight(Kg) | 950 | 1300 | 1965 | |
