Product Details:
Payment & Shipping Terms:
|
| Product Name: | Bucket Elevator | Application: | Steel Production Facilities |
|---|---|---|---|
| Usage: | Vertical Continuous Conveying | Conveying Capacity(T/H): | 400~650 |
| Speed(m/s): | 2.5~4 | Capacity(L): | 9.46X2 |
| Distance(MM): | 250 | Width(MM): | 519 |
| Bend Width(MM): | 1200 | Head Drum Diameter(MM): | 1140 |
| High Light: | 650 T/H Conveying Hoisting Machine,8TPH Vertical Bucket Elevator,650 T/H Vertical Bucket Elevator |
||

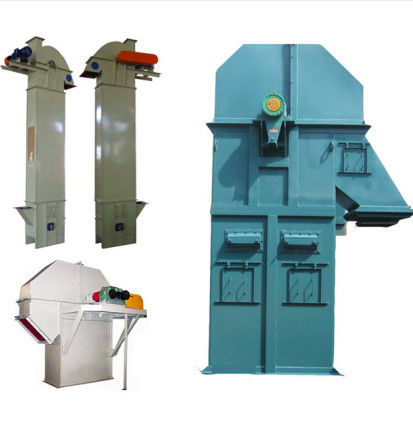

8-650 T/H custom capacity vertical bucket elevator Simple Operation
Description:
The bucket elevator is a fixed installation mainly used for the vertical continuous conveying of powdery materials or granular materials.The equipment is of straightforward structure, compact design, good sealing performance, easy installation and maintenance, allowing positive and reverse material feeding, as well as flexible process configuration and layout.
TH series bucket elevators are available in direct coupling drive, sprocket driven or gear reducer drive, delivering straightforward structure and easy arrangement. The installation height is optional, but the maximum height elevator not beyond 40m.
Application:
Bucket elevators can handle a variety of materials, and therefore are used in many different industries and applications, though generally, they are not suited for wet, sticky materials, or materials that are stringy or tend to mat or agglomerate. They are frequently found in power plants, fertilizer plants, pulp & paper mills, and steel production facilities. Some of the most common materials for which bucket elevators are employed include:
1.Aggregates 2.Animal Feeds
3.Calcined Coke 4.Coal
5.Fertilizer 6.Fly Ash
7.Frac Sand 8.Minerals
9.Potash 10.Lime
| Main technical parameters | ||||||||||
| Machine type | TDTG | TDTG | TDTG | TDTG | TDTG | TDTG | TDTG | TDTG | TDTG | |
| 26x15 | 40X19 | 40X23 | 61X29 | 70X33 | 80X47 | 80X51 | 100X47X2 | 110X51X2 | ||
| Conveying capacity(T/H) | 8~15 | 20~35 | 20~35 | 35~50 | 60~100 | 120~200 | 150~250 | 350~550 | 400~650 | |
| Bucket | Speed(m/s) | 1~2 | 1.6~2.5 | 1.6~2.5 | 2.0~3.2 | 2.0~3.2 | 2.0~3.2 | 2.0~3.2 | 2.5~4 | 2.5~4 |
| Capacity(L) | 0.62 | 1.26 | 1.31 | 1.59 | 3.9 | 8.5 | 9.46 | 8.5X2 | 9.46X2 | |
| Distance(MM) | 150~200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 250 | |
| Width(MM) | 150 | 190 | 235 | 285 | 337 | 475 | 519 | 475 | 519 | |
| Bend width(MM) | 175 | 220 | 250 | 350 | 380 | 500 | 550 | 1000 | 1200 | |
| Head drum diameter(MM) | 260 | 400 | 400 | 610 | 700 | 800 | 800 | 1000 | 1140 | |
