High Degree 0.2-45 M3 Rotary Disk Filter Automation Filter Cake Drying

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

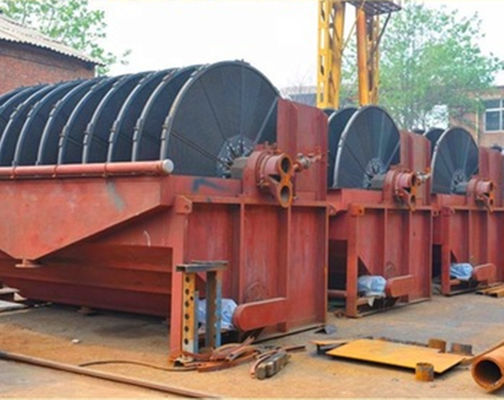

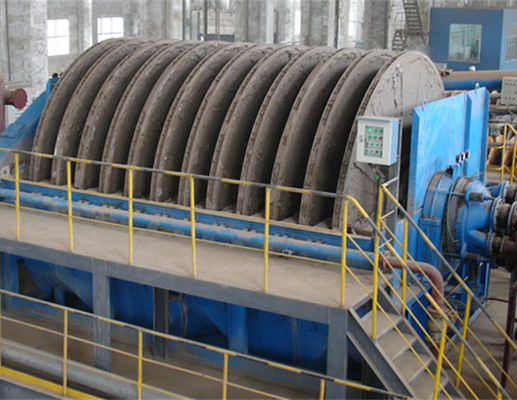

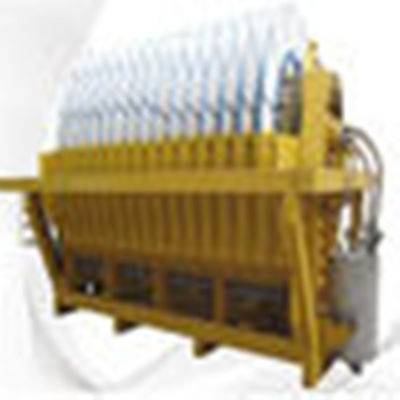

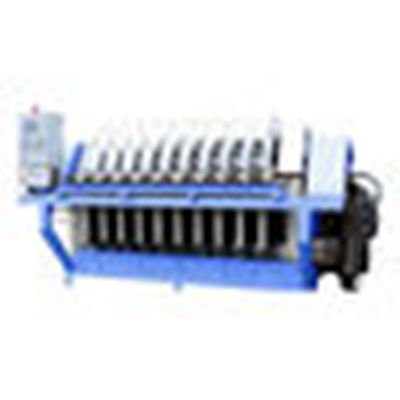

High Degree 0.2-45 M3 Rotary Disk Filter Automation Filter Cake Drying

High Degree 0.2-45 M3 Rotary Disk Filter Automation Filter Cake Drying
High Degree 0.2-45 M3 Rotary Disk Filter Automation Filter Cake Drying High Degree 0.2-45 M3 Rotary Disk Filter Automation Filter Cake Drying High Degree 0.2-45 M3 Rotary Disk Filter Automation Filter Cake Drying High Degree 0.2-45 M3 Rotary Disk Filter Automation Filter Cake Drying High Degree 0.2-45 M3 Rotary Disk Filter Automation Filter Cake Drying

Large Image :  High Degree 0.2-45 M3 Rotary Disk Filter Automation Filter Cake Drying

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Features: High Degree Of Automation Product Name: Disk Filter
Filter Plate: 1-20 Filter Board Amount (piece): 12-240
Tank Volume (m3): 0.2-45 Total Power(KW): 4.5-130
Operating Power (KW): 3.5-120 Overall Dimensions(M): Different Model
Aplicacion: Mine Machine Type: Disk Filter
High Light:

45 M3 Rotary Disk Filter

,

Cake Drying Rotary Disk Filter

,

45M3 vacuum disk filter

high degree of automation Good filter cake drying performance Disk Filter



The filter machine is a device that uses porous filter media to intercept solid particles in the mixture of liquid and solid particles, and realizes the separation of solid and liquid.

High Degree 0.2-45 M3 Rotary Disk Filter Automation Filter Cake Drying 0

Working principle
Under the action of the pressure difference, the liquid in the suspension passes through the filter medium, and the solid particles are intercepted by the medium, so as to realize the separation of liquid and solid.


Features
The filtrate is clear and transparent
High solid recovery
PLC control, high degree of automation
Good filter cake drying performance



Application
1. Dewatering of mine concentrates and tailings: non-ferrous metal ore, rare metal ore, ferrous metal ore, non-metal ore
2. Chemical industry dehydration: such as dehydration of zinc oxide, lead oxide, zinc sulfide, electrolytic slag, leaching slag, slag, and power plant gypsum
3. Dewatering of stone factory, sand washing field and concrete mixing station;
4. Environmental protection sewage sludge waste acid treatment dehydration

High Degree 0.2-45 M3 Rotary Disk Filter Automation Filter Cake Drying 1

Parameter



Model area (m2) filter plate filter board amount (piece) tank volume (m3) total power(KW) operating power (KW) overall dimensions (M) specifications of filter plate
TC-1 1 12 0.2 4.5 3.5 1.4×1.4×1.9 1 M2/encircle
TC-4 2 24 0.8 5.5 4.5 1.7 ×2.2×2.0 2 M2/encircle
TC-6 3 36 1.1 8 7 2.0×2.2×2.0
TC-9 3 36 1.9 8.5 7.5 3.1×2.8×2.6 3 M2/encircle
TC-12 4 48 2.6 9 8 3.4×2.8×2.6
TC-15 5 60 2.9 9 8 3.7×2.8×2.6
TC-21 7 84 3.9 15.5 14.5 4.3×2.85×2.6
TC-24 8 96 4.3 15.5 14.5 4.6×2.85×2.6
TC-30 10 120 5.2 19 18 5.2×2.85×2.6
TC-36 12 144 6.1 19 18 5.8×2.85×2.6
TC-45 15 180 7.4 26 25 6.7×2.85×2.6
TC-40 10 120 7 23 22 5.2×3.2×3.0 4 M2/encircle
TC-48 12 144 8.2 24 23 5.8×3.2×3.0
TC-60 15 180 10 39 38 6.9×3.3×3.0
TC-80 20 240 14.5 39 38 8.4×3.3×3.0
TC-40 8 96 5.8 26 25 4.9×3.3×3.1 5 M2/encircle
TC-45 9 108 6 26 25 5.2×3.3×3.1
TC-50 10 120 6.9 26 25 5.5×3.3×3.1
TC-55 11 132 7.5 33 32 5.8×3.3×3.1
TC-60 12 144 8.1 33 32 6.1×3.3×3.1
TC-100 20 240 12.7 47 46 8.5×3.3×3.1
TC-78 13 156 12.7 39 38 6.4×3.7×3.3 6 M2/encircle
TC-96 16 192 15.1 57 56 7.3×3.7×3.3
TC-120 20 240 18.3 57 56 8.5×3.7×3.3
TC-96 8 120 25 90 80 6.73×5.9×4.78 12 M2/encircle
TC-120 10 150 30 110 100 7.53×5.9×4.78
TC-144 12 180 35 110 100 8.57×5.9×4.78
TC-168 14 210 40 110 100 9.37×5.9×4.78
TC-192 16 240 45 130 120 10.2×5.9×4.78
