| Product Name: | Friction Liner | Usage: | Multi-rope Friction Hoist |
|---|---|---|---|
| Densityg/cm3: | 1.40 | Hardness: | 58-65 |
| Impact Strength KJ/M2: | 15 | Tensile Strength Mpa: | 17 |
| Bending Strength Mpa: | 13 | Flexural Modulus Mpa: | 920 |
| Elongation At Break %: | 62.3 | Compression Strength Mpa: | 33 |
| High Light: | Friction Pulley Friction Liner,0.28 Pulley Friction Liner,0.28 industrial brake lining |
||
wear resistance and stability friction pulley liner friction coefficient greater than 0.28

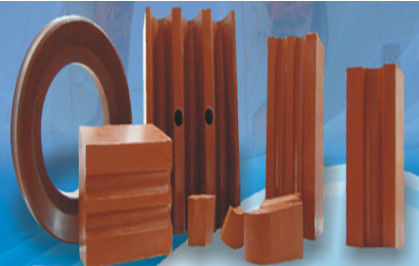

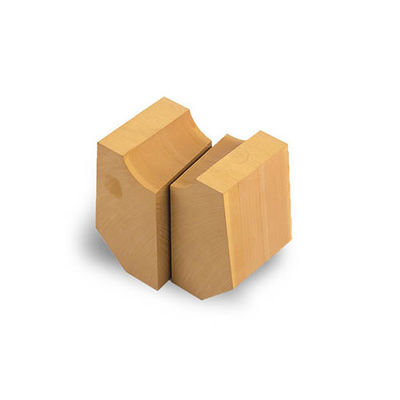

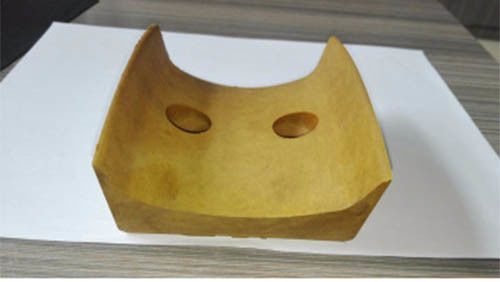

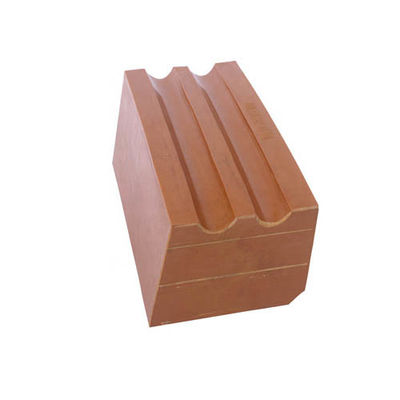

Friction liner
Product Feature:
1.Under various working conditions, the friction coefficient of GDM326 friction liner is greater than 0.28, which fully meets the requirements of multi-rope friction hoist.
2.It has high mechanical properties, no harmful material to damage the wire rope, and it is easy to process the rope groove on site.
In order to meet the domestic new demand on large-scale, ultra-large multi-rope friction hoist, our plant introduced raw materials from Germany to produce GDM326 high-performance friction pad, for supporting import and domestic large-scale, ultra-large hoists and for meeting the needs of different users.
Compared with other pads, GDM326 high performance friction pad with imported material has greater increases mainly in the friction coefficient, compression resistance, wear resistance and stability, so it can be trusted. It has been widely used and achieved very good economic benefits. GDM326 high performance friction pad with imported materials can be applied to other machineries that take use of friction transmission, and also be used as leading wheel friction pad for cable car.
The friction coefficient in different stiuation:
