| Product Name: | Vibrating Feeder | Usage: | Crushing And Sieving Equipment |
|---|---|---|---|
| Size Of Trough(mm): | 1500X6000 | Feeding Size(mm): | ≤1000 |
| Motor Power(kw): | 37 | Capacity(t/h): | 400-800 |
| Overall Dimension(mm): | Different Model | Feature: | Low Power Consumption |
| Model: | OEM | Application: | Metallurgy, Coal, Chemical Industry, Construction Material, Grinding Industry |
| High Light: | 1500X6000 Conveying Hoisting Machine,Vibratory Feeder Conveying Hoisting Machine,1500X6000mm Linear Vibratory Feeder |
||

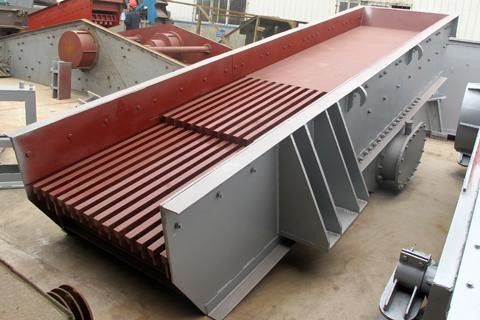

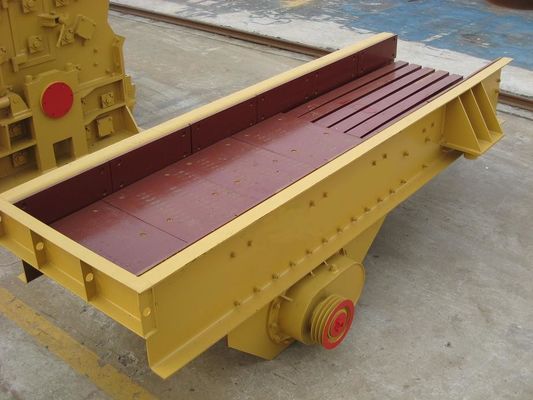

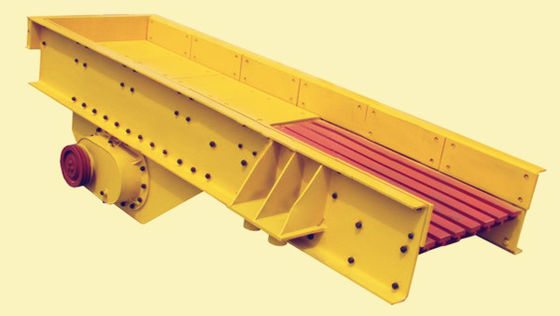

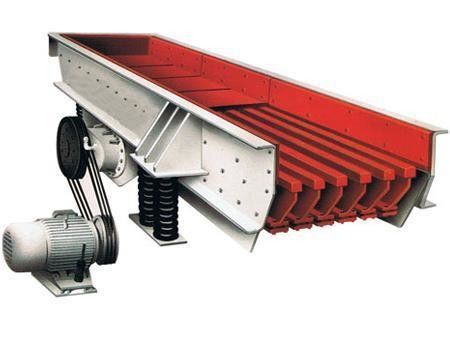

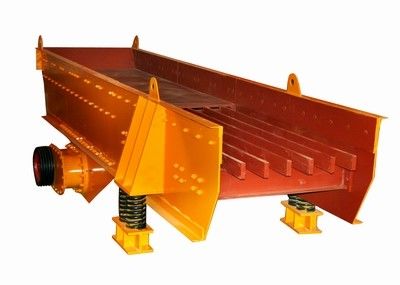

custom long service life low noise low power consumption Vibrating feeder
Vibrating feeder is used to transfer the large size materials and granular materials from hopper to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line.It is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc.
Features and Applications of Mining Vibrating Feeder
Smooth vibration, reliable operation, long service life, low noise, low power consumption, easy to adjust, simple structure, easy to install, light weight, small volume, simple maintenance. It is widely used in the crushing and screening equipments of metallurgy, coal, chemical industry, construction material, grinding industry, etc. With a smooth vibration, reliable, simple structure, to prevent dust pollution and so on.
Technical Parameters
| Model | Size of Trough(mm) | Feeding Size(mm) | Motor Power(kw) | Capacity(t/h) | Overall Dimension(mm) |
| GZD-650X2300 | 650X2300 | ≤300 | 1.1X2 | 80 | 2300X1360X780 |
| ZSW-850X3000 | 850X3000 | ≤400 | 7.5 | 80-120 | 3110X1800X1600 |
| ZSW-960X3800 | 960X3800 | ≤500 | 11 | 120-210 | 3850X1950X1630 |
| ZSW-1100X4200 | 1100X4200 | ≤580 | 15 | 200-430 | 4400X2050X1660 |
| ZSW-1100X4900 | 1100X4900 | ≤580 | 15 | 280-500 | 5200X2050X1700 |
| ZSW-1300X4900 | 1300X4900 | ≤650 | 22 | 450-600 | 5200X2350X1750 |
| ZSW-1300x6000 | 1300x6000 | ≤700 | 30 | 450-680 | 6100X2350X1750 |
| ZSW-1500X6000 | 1500X6000 | ≤1000 | 37 | 400-800 | 6100X2550X1860 |
