Heavy Duty CITIC HIC Machine Parts Mining Ball Mill 42CrMo Steel Hollow Shaft

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

Heavy Duty CITIC HIC Machine Parts Mining Ball Mill 42CrMo Steel Hollow Shaft

Heavy Duty CITIC HIC Machine Parts Mining Ball Mill 42CrMo Steel Hollow Shaft
Heavy Duty CITIC HIC Machine Parts Mining Ball Mill 42CrMo Steel Hollow Shaft Heavy Duty CITIC HIC Machine Parts Mining Ball Mill 42CrMo Steel Hollow Shaft Heavy Duty CITIC HIC Machine Parts Mining Ball Mill 42CrMo Steel Hollow Shaft

Large Image :  Heavy Duty CITIC HIC Machine Parts Mining Ball Mill 42CrMo Steel Hollow Shaft

Product Details:
Place of Origin: Henan, China
Certification: ISO9001:2015/CE
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $10,000.00
Packaging Details: Standard packing or according to customer's requirement
Supply Ability: 2000 Set/Sets per Year
Detailed Product Description
Name: Hollow Shaft Condition: New
Warranty: 1 YEAR Type: Hollow Shaft, Machining Services
Machine Type: Ball Mill Use: Ore Mining
Material: Steel Process: Precision Maching
Quality: High Precision Surface Treatment: Grinding
Finish: Stainless Port: Qingdao, Shanghai
High Light:

42CrMo CITIC HIC Machine Parts

,

35CrMo Steel Hollow Shaft

,

42CrMo Steel Hollow Shaft

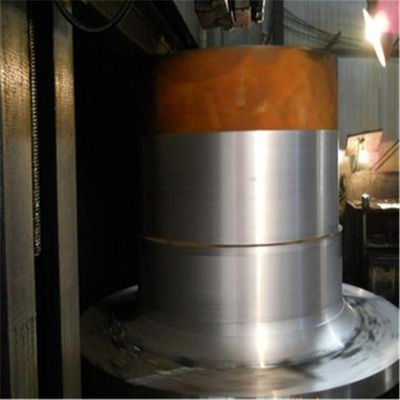

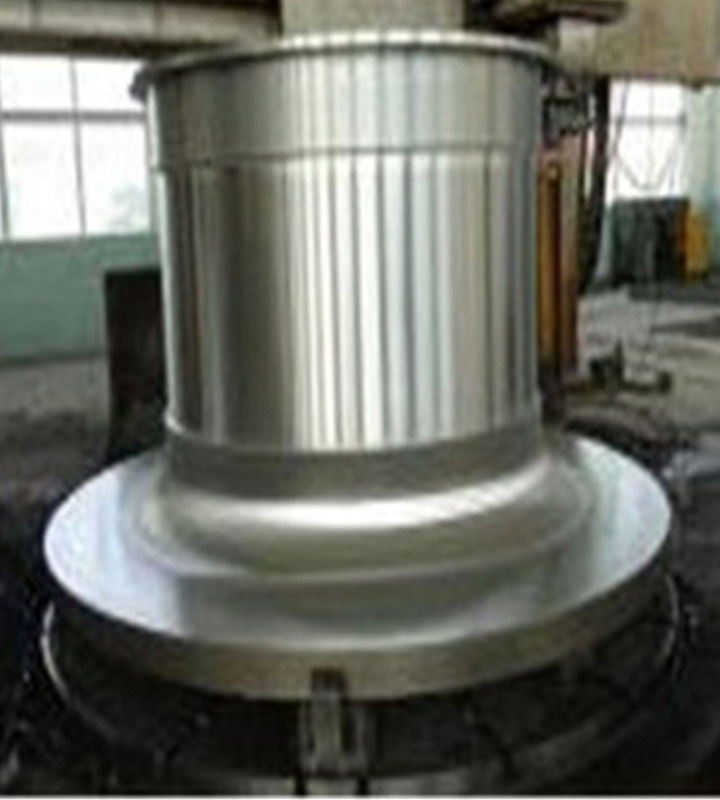

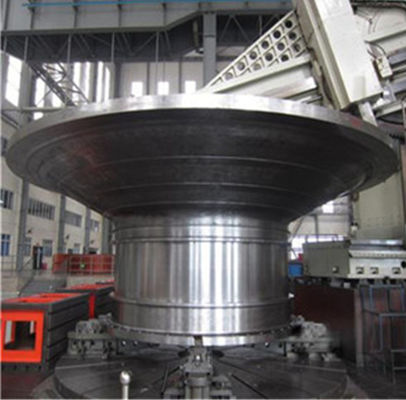

Heavy duty mining ball mill spare part 42CrMo steel hollow shaft



Products Description

Cement ball mill hollow shaft

Ball mill Hollow shaft Brief Introduction and Application:
The hollow shaft made from steel, used for heavy industry, the material of hollow shaft is steel which has better quality.The hollow shaft processing lathing, milling,grinding, drilling, Our factory has the advantage of processing, so there is a guarantee of precision and speed about hollow shaft before packing, the hollow shaft need to be inspected by our quality workers, then packed and sent out to customers.
Hollow shaft is an important part of ball mill. Its function is bearing the rotary of ball mill shell. Technically, hollow shafts
should not have below holes and sand holes on the neck of spherical tile and circular arc neck of shell connection. When
producing, spherical tile needs grinding after part machining, to secure precision and smooth finish. This requires very high standard of casting technology.
ztic's hollow shaft usually constructed from 4140,40Cr,45#,etc, of course customerized material accepted, after forging, rough machine, heat-treatment, finish machining process, shaft have good inner micro structure with excellet mechanical property and hardness, degree of roughness can be smooth to 0.8.
Our company can Professionally manufacture the mill and the hollow shaft of the ball mill. The powerful casting and forging, heat treatment,machining ability, strict quality, process control method and perfect detection and experimental means make the mill shaft with a high reputation and exported overseas.

Product name Hollow shaft
Material ZG45,ZG42CrMo,35CrMo,ect
Structure Casting or forging
Process Lathing, milling,grinding
Max.diameter 2000mm
Max.length 8000mm
Max.tolerance ±0.3
Type According to drawings
Certification SGS
Ball mill Hollow shaft Advantages:
1, high quality steel
2, large R fillet
3, high strength bolts and cylinder connection
4, molten steel refining furnace (blowing argon and R-H vacuum treatment)
5, using special sand, strictly control the pouring temperature and casting speed
6, bolster bearing processing, to ensure that the coaxial degree of end mouth and roughness
7, casting rough mechanical properties and chemical composition (internal control standard)
8, ultrasonic examination after rough machining
9, ultrasonic detection and magnetic particle inspection after finishing
Heavy Duty CITIC HIC Machine Parts Mining Ball Mill 42CrMo Steel Hollow Shaft 0
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd: A: 1. More than 30 years experience. 2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts. 3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates. Q:Delivery time A: parts lead time 1-2months, machines 2-3months. Q:Payment terms A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping Q: Quality warranty? A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply. Q: After sales service? A: we can supply technical guide for machines running test and parts maintenance if end user needs.
