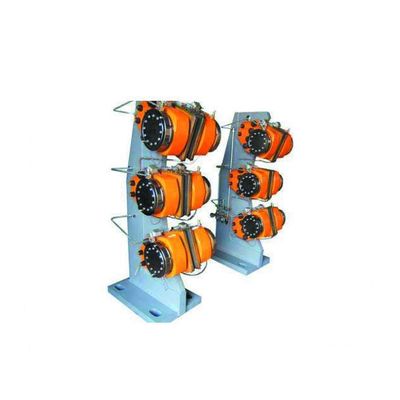

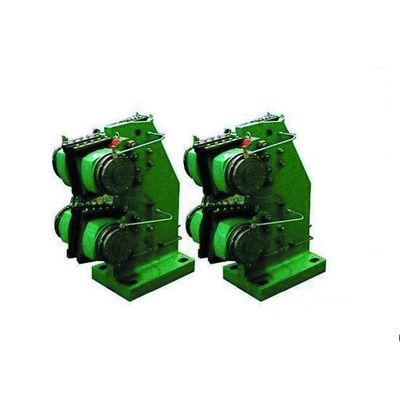

100kN 5m/S Mine Hoist systems With Hydraulic Station Disc Brake

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

100kN 5m/S Mine Hoist systems With Hydraulic Station Disc Brake

100kN 5m/S Mine Hoist systems With Hydraulic Station Disc Brake
100kN 5m/S Mine Hoist systems With Hydraulic Station Disc Brake 100kN 5m/S Mine Hoist systems With Hydraulic Station Disc Brake 100kN 5m/S Mine Hoist systems With Hydraulic Station Disc Brake

Large Image :  100kN 5m/S Mine Hoist systems With Hydraulic Station Disc Brake

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Pieces
Price: $100.00
Packaging Details: Standard packing or according to customer's requirement
Supply Ability: 100.0 Piece/Pieces per Week
Detailed Product Description
Name: Disc Brake Condition: New
Machine Type: Mine Hoist Use: Mining, Mine Hoist
Port: Qingdao ,tianjin ,shanghai
High Light:

5m/S Mine Hoist Systems

,

5m/S hydraulic disc brake

,

100kN hydraulic disc brake

Mine Hoist With Hydraulic Station Disc Brake

Product Description

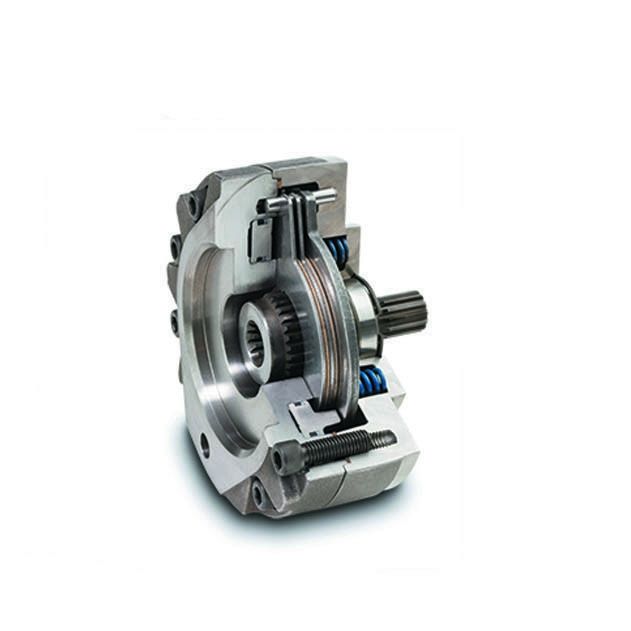

Disc brake, as the name implies is named after its shape.It is controlled by hydraulic pressure, the
main components are brake disc, pump, brake clamp, oil pipe and so on.The brake disc is made of alloy steel and fixed to the
wheel, which rotates with the wheel.Disc brakes have been widely used in cars, most cars are now used for all the wheels, a few
cars only as a front wheel brake, with the rear wheel drum brakes, so that the car has a higher braking direction stability.
Another ventilated brake disc, from the appearance, you will find that there are many from the center of the brake disc to the
edge of the hole, these holes are made by a special process, they can through the centrifugal force generated in the vehicle
driving air convection, for the brake disc cooling, played a role in preventing the thermal attenuation of the brake.



Working Principle
When braking, the oil is pressed into the inner and outer cylinder, the piston in the hydraulic action of the two brake block
pressure brake disc, friction torque and braking.At this point, the edge of the rectangular rubber seal ring in the wheel cylinder
groove produces a small amount of elastic deformation under the action of piston friction.When the brake is relaxed, the piston
and brake block depend on the elastic of the seal ring and the elastic return of the spring.Since the edge deformation of the
rectangular seal ring is very small, when not braking, the clearance between the friction disc and the disc is only about 0.1mm,
which is enough to ensure the release of the brake.And because the brake disc by thermal expansion, the thickness of only trace
changes, it will not occur "supporting hysteresis" phenomenon.In addition to sealing, the rectangular rubber sealing ring also
plays the role of piston return and automatic clearance adjustment.If the friction disc of the brake block and disc clearance wear
increases, when the brake ring deformation reached the limit, the piston can continue to move, until the friction disc compression
brake disc.After the brake is released, the rectangular rubber seal pushes the piston back the same distance as before the wear,
still maintaining the standard value.

Tower multi rope friction mine hoist

Model Wheel diameter Wire Rope

Max

ascension speed

Reducer Size
(L×W×H)
maximum static tension
m kN m/s Model Speed ratio m
JKM-1.3×4(Ⅰ)E   100 5 XP550 11.5 6.4×6.5×1.6
JKM-1.6×4(Ⅰ)E   150 8 XP560 7.35
10.5
11.5
6.4×7×1.75
JKM-1.85×4(Ⅰ)E   210 10 XP800 7×7.5×2.02
JKM-2×4(Ⅰ)E 2 230
180
10 XP800 7×8×2.2
JKM-2.25×4(Ⅰ)E 2 215 10 XP800 7.4×8×2.3
JKM-2.8×4(Ⅰ)E 2.5 335 14 XP1000 8.5×10×2.65
JKM-2.8×4(Ⅱ)E P2H630 7.5×8.5×2.65
JKM-2.8×6(Ⅰ)E 2.5 500 14 XP1120 8×8.5×2.68
JKM-2.8×6(Ⅱ)E P2H800 7.5×8.5×2.68
JKM-2.8×6(Ⅲ)E   7.5×8×2.7
JKM-3.25×4(Ⅰ)E 3 450 14 XP1120 7.35
10.5
11.5
8.9×8.9×2.98
JKM-3.25×4(Ⅱ)E P2H800 8.5×8.7×2.98
JKM-3.5×6(Ⅰ)E 3 790 14 XP1250 11.5×9.2×3.15
JKM-3.5×6(Ⅱ)E P2H900 10.5×9.2×3.15
JKM-3.5×6(Ⅲ)E   8×9×3.2
JKM-4×4(Ⅰ)E 3.2 690 14 XP1250 7.35
10.5
11.5
9×10×3.63
JKM-4×4(Ⅱ)E P2H900 9×10×3.63
JKM-4×4(Ⅲ)E     7.5×9×3.63
JKM-4×6(Ⅲ)E 3.2 1030     9×9×3.63
JKM-4.5×6(Ⅲ)E 3.6 1330 16 12×9.5×3.9
JKM-5×6(Ⅲ)E 4 1600

Floor type multi rope friction mine hoist

Model Wheel diameter Wire Rope

Max

ascension speed

Reduces Size
(L×W×H)
maximum static tension

Max


Dia

m kN mm m/s Model Ratio m
JKMD-2.25×2(Ⅰ)E 2.25 105 22 10 ZZP560(2) 11.5 7.7×9×2.1
JKMD-2.25×4(Ⅰ)E 215 XP800(2) 7.35
10.5
11.5
6.8×9.5×2.3
JKMD-2.8×2(Ⅱ)E 2.8 165 28 XP800(2) 7.8×10×2.65
JKMD-2.8×4(Ⅰ)E 335 XP1000(2) 8.5×10×2.65
JKMD-2.8×4(Ⅱ)E P2H800(2) 7.5×10×2.65
JKMD-3.5×2(Ⅰ)E 3.5 265 35 XP1000(2) 7×9.5×3.02
JKMD-3.5×4(Ⅰ)E 525 13 XP1120(2) 8.5×9.5×3
JKMD-3.5×4(Ⅱ)E P2H800(2) 8×9.5×3.02
JKMD-3.5×4(Ⅲ)E   7.5×9.5×3.0
JKMD-4×2(Ⅰ)E 4 340 39.5 12 XP1120(2) 7.35

10.5

11.5

8.2×10×3.4
JKMD-4×2(Ⅱ)E P2800(2) 7.8×10×3.4
JKMD-4×4(Ⅰ)E 680 14 XP1250(2) 11×10×3.4
JKMD-4×4(Ⅱ)E P2H900(2) 10.5×10×3.4
JKMD-4×4(Ⅲ)E   8.1×8.7×3.4
JKMD-4.5×4(Ⅲ)E 4.5 900 45   9.5×9.5×3.7
JKMD-5×4(Ⅲ)E 5 1070 50   9.5×10×4
JKMD-5.5×4(Ⅲ)E 5.5 1300 55   11×10.5×4.5
JKMD-5.7×4(Ⅲ)E 5.7 1500 57
JKMD-6×4(Ⅲ)E 6 1570 57
11×10.5×4.5


Single-Sope Winding Mining Hoist

Model Drum

Tension

PF

Tension Differe

(KN

Rope

Diameter

(mm)

Capatiy(m)

Max

Speed

Reduce

speed ratio

Motor

Speed

n

u

m

b

e

r

Dia Widlth One-laye Two-laye Three-laye

m kN mm m m/s r/min
JK-2×1.5/20 1 2.0 1.5 62 24 305 650 1025 5.2 20.0 1000
JK-2×1.5/31.5 31.5
JK-2×1.8/20 1.80 375 797 1246 20.0
JK-2×1.8/31.5 31.5
JK-2.5×2/20 2.5 2.00 83 28 448 945 1475 5.0 20.0 750
JK-2.5×2/31.5 31.5
JK-2.5×2.3/20 2.30 525 1100 1712 20.0
JK-2.5×2.3/31.5 31.5
JK-3×2.2/20 3.0 2.20 135 36 458 966 1513 6.0 20.0
2JK-2×1/11.2 2 2.0 1.00 62 40 24 182 406 652 7.0 11.2
2JK-2×1/20 20.0
2JK-2×1/31.5 31.5
2JK-2×1.25/11.2 1.25 242 528 838 11.2
2JK-2×1.25/20 20.0
2JK-2×1.25/31.5 31.5
2JK-2.5×1.2/11.2 2.5 1.20 83 65 28 843 8.8 11.2
2JK-2.5×1.2/20 20.0
2JK-2.5×1.2/31.5 31.5
2JK-2.5×1.5/11.2 2.5 1.50 83 65 28 319 685 1080 8.8 11.2
2JK-2.5×1.5/20 20.0
2JK-2.5×1.5/31.5 31.5
2JK-3×1.5/11.2 3.0 135 90 36 289 624 994 10.5 11.2
2JK-3×1.5/20 20.0
2JK-3×1.5/31.5 31.5
2JK-3×1.8/11.2 1.80 362 770 1217 11.2
2JK-3×1.8/20 20.0
2JK-3×1.8/31.5 31.5
2JK-3.5×1.7/11.2 3.5 1.70 170 115 40 349 746 - 12.6 11.2
2JK-3.5×1.7/20 20.0
2JK-3.5×2.1/11.2 2.10 450 950 - 11.2
2JK-3.5×2.1/11.2 20.0
2JK-4×2.1/10 4.0 245 160 48 421 891 - 12.6 10.0 600
2JK-4×2.1/11.2 11.2
2JK-4×2.1/20 20.0
2JK-5×2.3/10 5.0 2.30 280 180 52 533 - - 12 10.0 500
2JK-5×2.3/11.2 11.2
