0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant

0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant
0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant

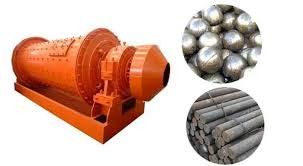

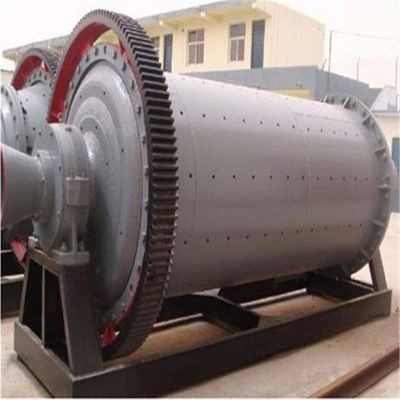

Large Image :  0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Rod Mill Application: Metal And Non-metal Mines
Grinding Material: Various Hardness Ores And Other Materials Grinding Media: Steel Bar
Feeding Size (mm): 30 Output Size (mm): 0-5
Capacity (t/h): 2-125 Motor Power (kw): 18.5-380
Weight (kg): 4000-82000 Price: Negotiatable
High Light:

5Mm Sand Making Equipment

,

Rod Mill Sand Making Equipment

,

5Mm sand manufacturing machine

0-5 mm Output Energy-Saving Rod Mill advanced sand making equipment



Energy-Saving Rod Mill
Rod Mill crusher widely used,its performance has reached the international advanced level,is the most effective,practical and reliable rod mill Sand,for the production of abrasives,refractories,cement,quartz sand,grit,slag powder, copper ore,iron ore,gold ore,concrete aggregate,asphalt aggregate and other hard,brittle materials crushing and the broken,especially for artificial sand process of adjustment fineness mesh.Is a highly efficient,energy-saving gravel sand making equipment,50% energy saving than traditional sand making machine,is currently the world's advanced sand making equipment.

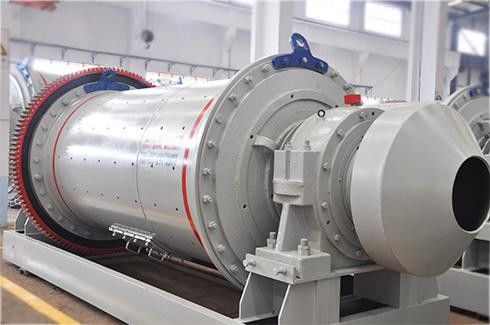

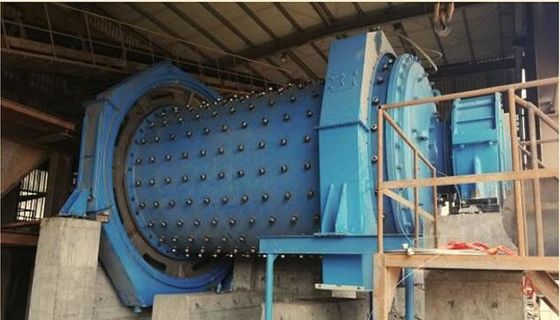

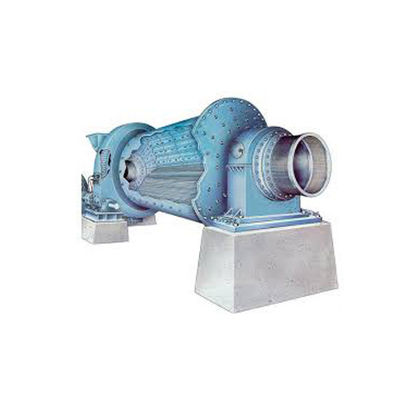

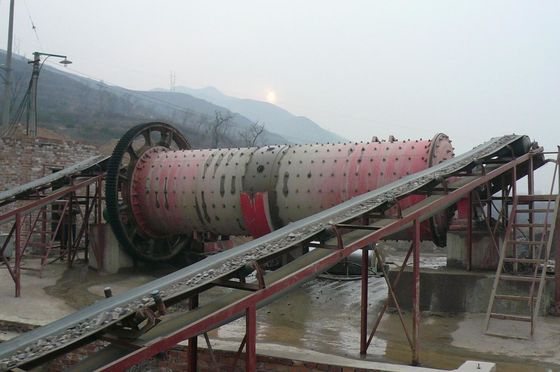

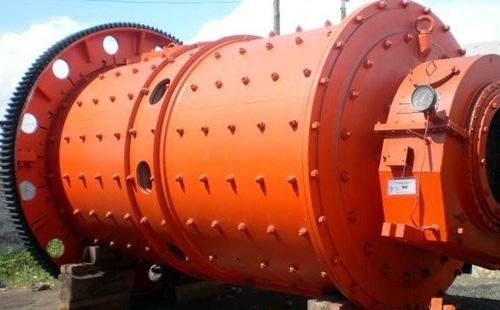

0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 00-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 10-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 2

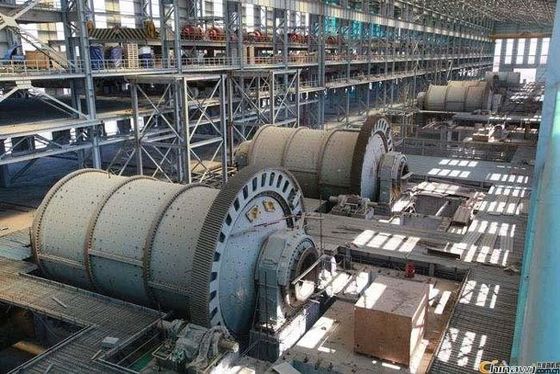

0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 3
Rod mill sand making machine is widely used in metal and non-metal mines and Water Building Materials Sector grinding various ores or rocks.

Suitable for wet crushing,coarse grinding various hardness ores and other materials,especially for the artificial sand process of adjustment fineness mesh.Rod mill Sand and gravel industry is widely used in construction and gravel equipment,mainly for feldspar, quartz, river gravel processing of raw materials such as ore crushing.Cylinder rotates at a constant speed,the friction and grinding action of centrifugal force to be thrown up to a certain height,so that the material under attack grinding, and achieve the purpose.

Rod mill [1] is a mill in which the grinding body in the barrel is a steel rod.Rod mill is generally wet overflow type, can be used as a level open grinding, widely used in artificial stone sand, mineral processing plants, chemical plants in the power sector of the level grinding.The mill is mainly composed of the motor, the main reducer, the transmission part, the cylinder part, the main bearing, the slow transmission part, the feeding part, the discharging part, the annular seal, the thin oil lubrication station, the large and small gear jet lubrication, the base part and so on.The main reducer has parallel shaft and hard tooth surface.Rod mill is asynchronous motor through the gear reducer and small gear coupling, turns around the big gear reduction, directly driven rotary rotary, barrel inner is equipped with the appropriate grinding medium - steel rods, grinding medium under the action of centrifugal force and friction force, to manufacture materials by feeding continuously into the barrel inside, are controlled by the movement of grinding medium crushing,And through the overflow and continuous feeding force of the product out of the machine, in order to proceed to the next stage of processing.The working principle, structure, type, grinding medium, application, installation and matters needing attention in installation are introduced in detail.

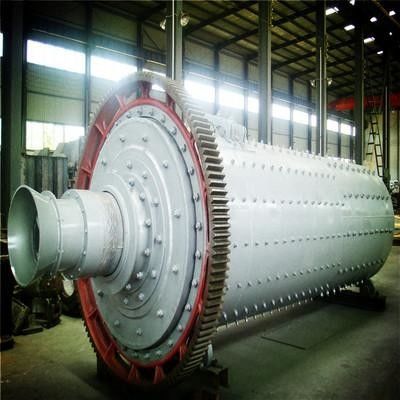

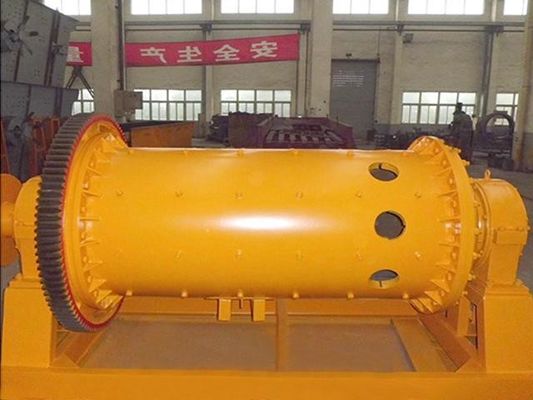

0-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 40-5 Mm Output Sand Making Equipment Energy Saving Rod Mill and slag rod mill for steel plant 5



Working Principle

Rod mill Sand by the motor through reducer gear reducer and the surrounding low-speed synchronous motor drive or directly through the surrounding large gear reduction drive,the drive cylinder rotation.Cylindrical body with an appropriate grinding media - steel bars.Grinding media in the role of centrifugal force and friction,has been elevated to a certain height,was thrown down or drain off the state down.Wash milled material from the mine mouth into the cylinder continuously inside the movement shattered grinding media,and through the overflow and continuous power to the mine product from the plane to the next section of processes operating.





Model

Feeding size

(mm)

Output size

(mm)

Capacity

(t/h)

Motor power

(kw)

Weight

(kg)

900*1200 30 0-5 2-6 18.5 4000
1200*2400 5-15 30 11500
1500*3000 10-25 75 17000
1830*3000 18-45 130 26000
2100*3000 20-52 180 44000
2100*3600 30-70 210 46000
2400*3000 35-82 245 59000
2700*3600 50-125 380 82000



Aftersales service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS



ZTIC's Field Service Engineers are trained specifically in the CITIC brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
ZTIC also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.



FAQ



Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.



Q:Delivery time

A: parts lead time 1-2months, machines 2-3months.



Q:Payment terms

A: Accept payment type: T/T, L/C, Western union,Cash.

30% deposit when signed contract. Full payment paid before shipping



Q: Quality warranty?

A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.



Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.
