Product Details:
Payment & Shipping Terms:
|
| Name: | Raymond Mill | Max. Feed Size (mm): | <35 |
|---|---|---|---|
| Finished Product Size (mm): | 0.613-0.033 | Production Capacity (t/d): | 5-22 |
| Rotating Speed Of Main Motor (r/min): | 160 | Main Motor Power (kw): | 132 |
| Milling Ring Diameter (mm): | Inner Diameter 1600 | Milling Ring Height (mm): | 270 |
| Milling Roller Diameter (mm): | 440 | Milling Roller Height (mm): | 270 |
| High Light: | 22TPD Raymond Ore Grinding Mill,99% Raymond Ore Grinding Mill,22TPD 99% raymond grinding mill |
||

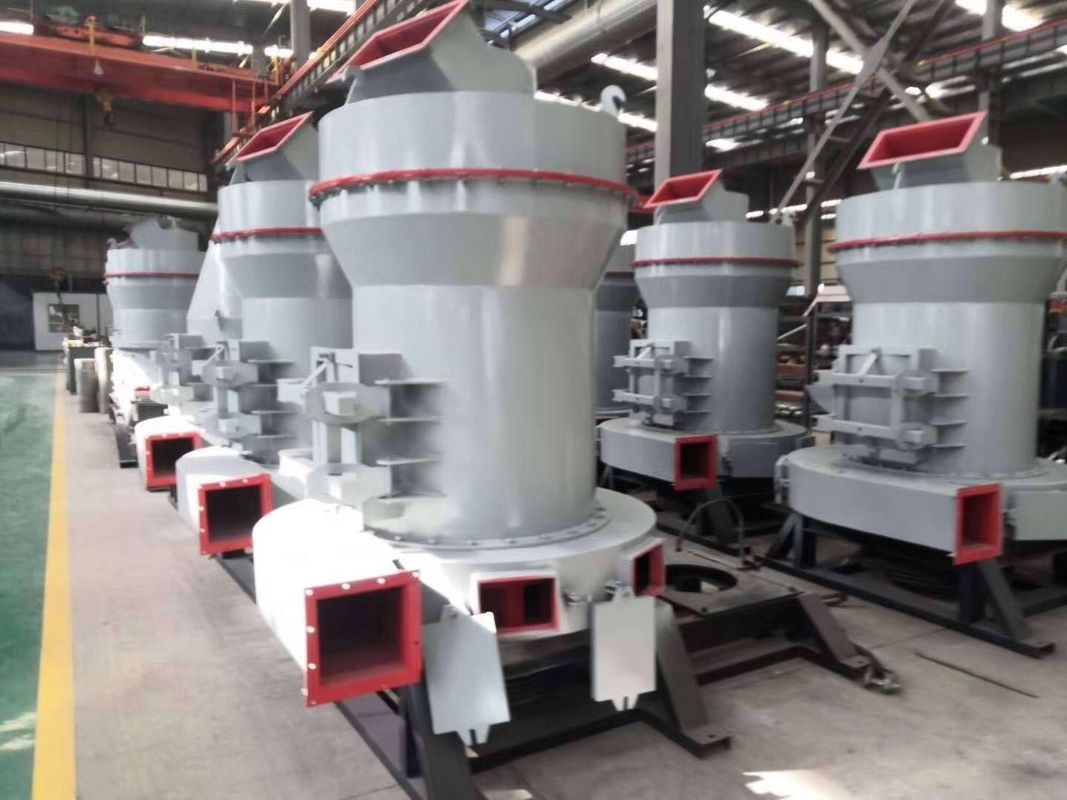

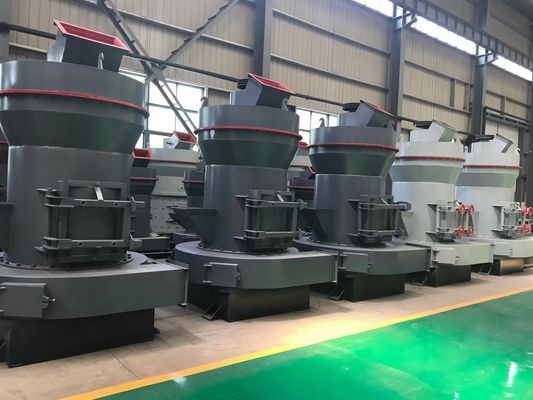

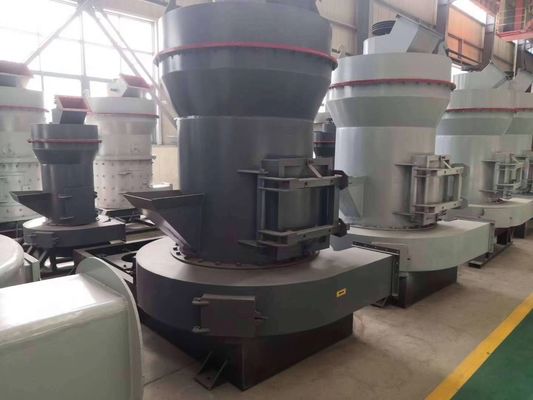

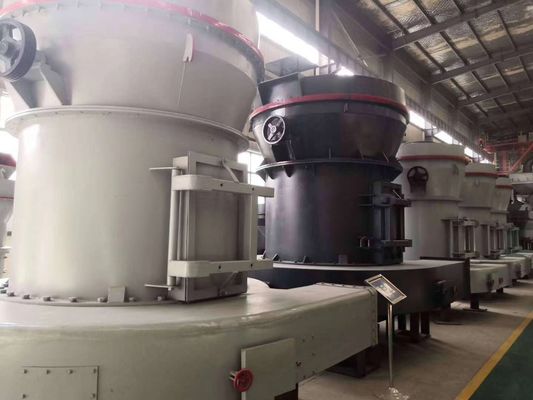

strong performance Raymond Mill 99% qualified milling equipment
Raymond Mill has a strong performance of becoming a complete set with a production system independently.
Advantages
Dimensional structure, small floor area.
strong performance become a complete set with a production system independently.
Even fineness of finished powder and qualified screening rate of 99%, which is difficult to reach for other milling equipment.
The transmission device of the main engine adopts a sealed gear box and pulley, with smooth transmission and reliable operation.
Electrical system adopts centralized control, and the grinding workshop can realize unmanned operation with easy maintenance.
Grinded materials are blown into separator by blower for classification. With the function of impellers in the separator, materials without meeting the requirements of the fineness are fallen into grinding chamber for grinding again; materials meeting the requirements of the fineness are blown into cyclone powder collector with airflow through pipelines for separation and collection. Powder from discharging device is the finished product. Separated airflow is back to blower through return duct on the top of the cyclone powder collector.
Technical parameters
| Model | Max. Feed Size (mm) | Finished Product Size (mm) | Production Capacity (t/d) | Rotating Speed of Main Motor (r/min) | Main Motor Power (kw) | Milling Ring Diameter (mm) | Milling Ring Height (mm) | Milling Roller Diameter (mm) | Milling Roller Height (mm) | Milling Roller Qty. | Overall Dimension(m) |
| (Length × Width × Height) | |||||||||||
| MTM75 | <15 | 0.613-0.033 | 1-3 | 160 | 18.5 | Inner Diameter 780 | 150 | 260 | 150 | 3 | 4.3×3.5×5.1 |
| MTM85 | <20 | 0.613-0.033 | 1.2-4.6 | 150 | 22 | Inner Diameter 830 | 140 | 270 | 140 | 3 | 5.3×4.1×5.2 |
| MTM100 | <25 | 0.613-0.033 | 2.1-5.6 | 130 | 37 | Inner Diameter 950 | 170 | 310 | 170 | 4 | 7.1×5.9×7.9 |
| MTM130 | <30 | 0.613-0.033 | 3-9.5 | 103 | 75 | Inner Diameter 1280 | 210 | 410 | 210 | 5 | 7.85×8×9.7 |
| MTM160 | <35 | 1.6-0.045 | 5-22 | 82 | 132 | Inner Diameter 1600 | 270 | 440 | 270 | 6 | 12.55×5.7×8.3 |
