Customized High Precision 120MT Mill Girth Gear Rotary Kiln Girth Gear

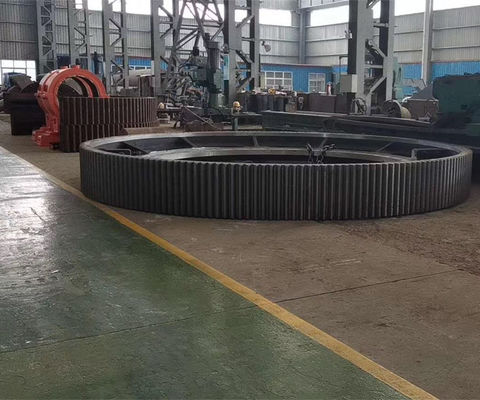

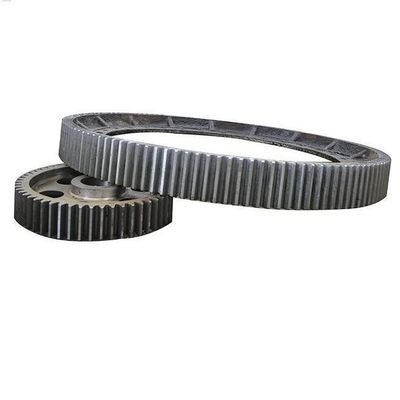

Large Image : Customized High Precision 120MT Mill Girth Gear Rotary Kiln Girth Gear

Product Details:

Place of Origin:	China
Brand Name:	ZTIC
Certification:	ISO/CE
Model Number:	According to customer demand

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard shipping packaging
Delivery Time:	30 days
Payment Terms:	, Western Union, MoneyGram, L/C, D/A, D/P, T/T
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Usage:	Rotary Kiln And Ball Mill	Dimensions:	Customized
Weight:	Max 120 MT Single Piece	Module Range:	10 Module To 70 Module
Standards/Certificates:	ISO/CE	Maximum Module:	45 By Hob
Application:	Cement And Minerals Industries	Gear Cutting Machines:	16m CNC Hobbing Machine
Material Standard:	Customized	Keyword:	OEM Gear
High Light:	120MT Mill Girth Gear , 10 Module Mill Girth Gear , 120MT Rotary Kiln Girth Gear

Rotary kiln Girth Gear Professional Customized High Precision Girth Gears

Bull Gears

Bull Gears can be made available by us as per different international standards including ASTM & AISI (USA), BS (British), JIS (Japanese), GS (German) and IS (Indian) standards. These gears comprise toothed driving wheel which is also largest in the mechanism. As a gear/sprocket much larger than others in same power train, these are larger of two spur gears engaged in any machine.

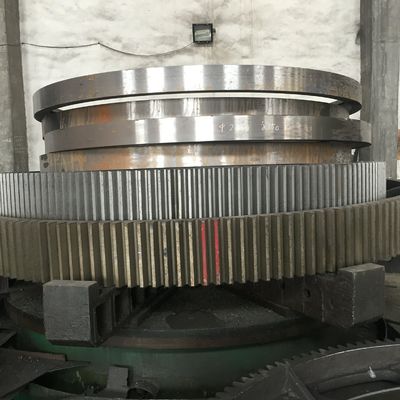

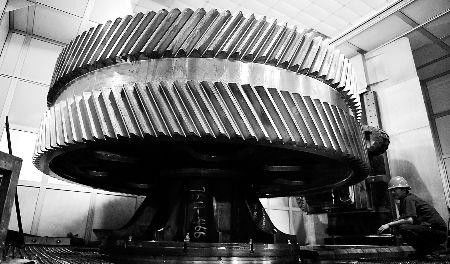

Customized High Precision 120MT Mill Girth Gear Rotary Kiln Girth Gear 0

Features :

Making use of latest computer aided designing support using software like AUTOCAD, SOLID WORKS so as to ensure accurate designing of gears
All software used updated to latest versions
Gears checked for interference checks as well as dimensional accuracies
Expertise in offering solutions as per client's designs and drawings
Expertise in also offering load analysis and stress analysis on gears using finite element analysis for checking appropriate selection of materials & geometrical designs
Reverse engineering and designing support for generating drawings exactly as per sample as well as obtain accurate geometrical sizing

Applications :

Mining industry
Steel plants
Power plants
Paper plants
Fertilizer plants

Girth Gears: Rotary kiln Girth Gear,ball mill Girth Gear

Item

Structural features

Processing measure

Test content

Girth Gear

(1)GS42CrMo4Alloy Steel (corporate proprietary standards)

HB 220~240

(2)semi-structured, Y-Spoke
(3)Helical
(4) reasonable sealing and alignment structure of alloy steel (corporate proprietary standards)

(1) outer steel refining (R-H argon and vacuum treatment)
(2) proprietary cold mold hanging sand technology to ensure the casting, the teeth dense
(3) normalizing (proprietary technology) to ensure that the tooth surface hardness
After

(4)rough hobbing, release time, repair the joint surface, then fine roll
(5) proprietary homemade hob fine hobbing

(1)castings mechanical properties and chemical composition (internal standard)
(2) roughing after sonic testing
(3)semi-finishing, finishing after ultrasonic testing and magnetic particle inspection
(4) tooth surface magnetic particle inspection, hardness test
(5)tooth tolerance check
(6) the factory assembly load test to check the accuracy of the size of gear

42CRMO STEEL DATA

化学成份 CHEMICAL LIST

编辑

碳 C :0.38～0.45%

硅 Si:0.17～0.37%

锰 Mn:0.50～0.80%

硫 S :允许残余含量≤0.035%

磷 P :允许残余含量≤0.035%

铬 Cr:0.90～1.20%

镍 Ni:允许残余含量≤0.030%

铜 Cu:允许残余含量≤0.030%

钼 Mo:0.15～0.25% [1]

力学性能 MECHANICAL DATA

编辑

抗拉强度 σb (MPa):≥1080(110)

屈服强度 σs (MPa):≥930(95)

伸长率 δ5 (%):≥12

断面收缩率 ψ (%):≥45

冲击功 Akv (J):≥63

冲击韧性值 αkv (J/cm2):≥78(8)

硬度 :≤217HB [1]

试样尺寸:试样毛坯尺寸为 25mm

物理性能 PHYSICAL DATA

编辑



1)临界点温度(近似值) Critical point temperature (approximate value)

:Ac1=730°C,Ac3=800°C,Ms=310°C.



2)线胀系数:温度 Linear expansion coefficient: temperature

20~100°C/20~200°C/20~300°C /20 ~400°C/20~500°C /20~600°C,线胀系数

linear expansivity: 11.1×10K/12.1×10K/12.9×10K/13.5×10K/13.9×10K14.1×10K.

3)弹性模量:温度 Modulus of elasticity: temperature 20°C/300°C/400°C/500°C/600°C,

弹性摸 Elastic modulus 210000MPa/185000MPa/ 175000MPa/165000MPa/15500oMPa[2]

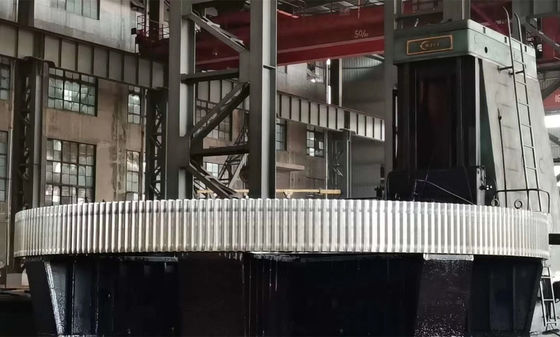

640 rotary kiln0 640 rotary kiln2

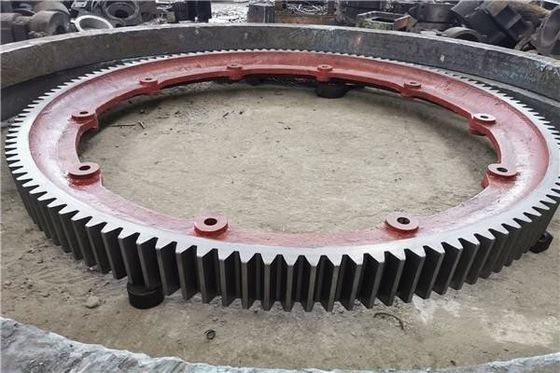

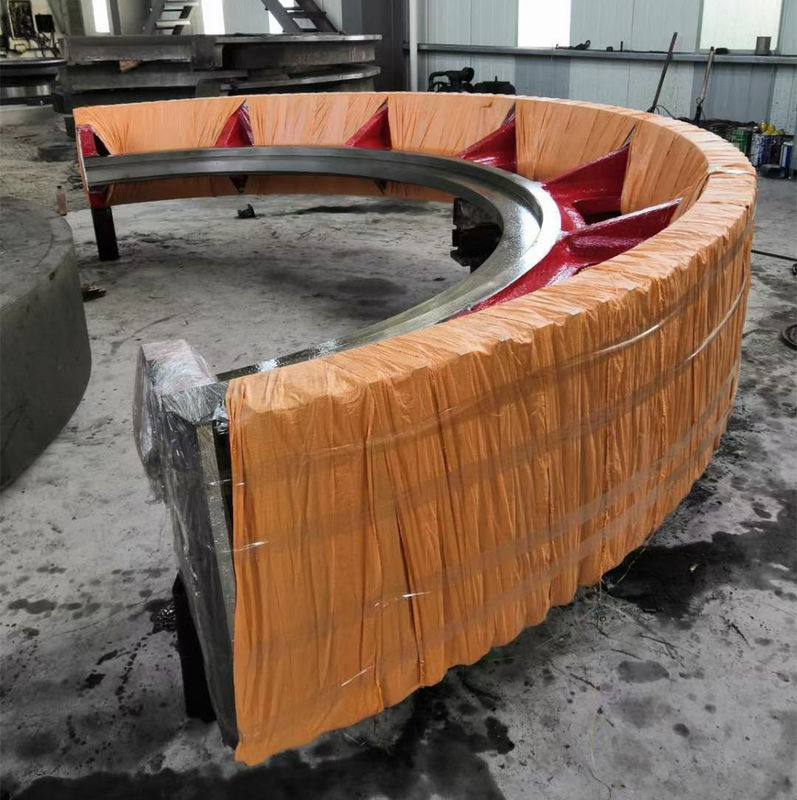

Customized High Precision 120MT Mill Girth Gear Rotary Kiln Girth Gear 5

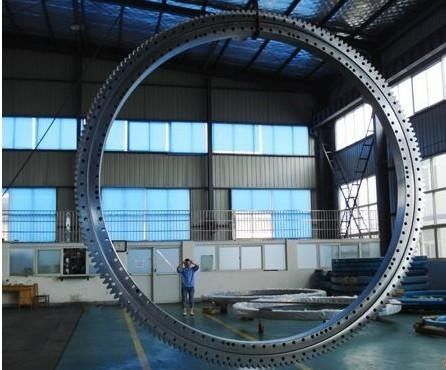

Customized High Precision 120MT Mill Girth Gear Rotary Kiln Girth Gear 6

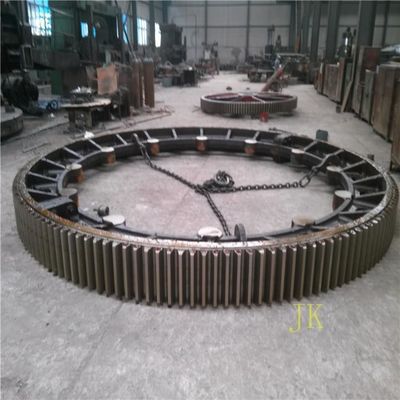

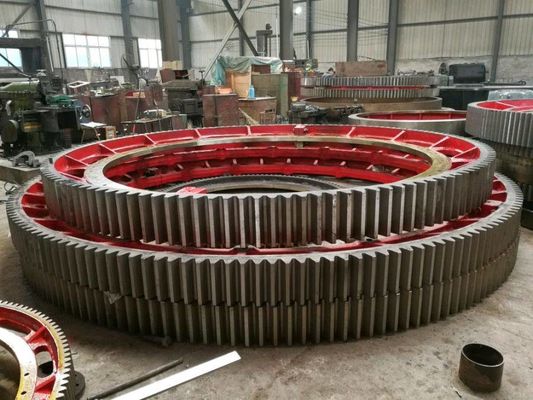

Customized High Precision 120MT Mill Girth Gear Rotary Kiln Girth Gear 7

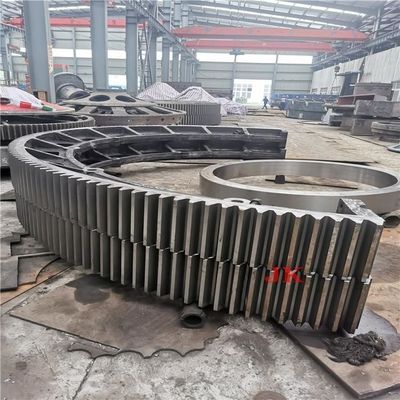

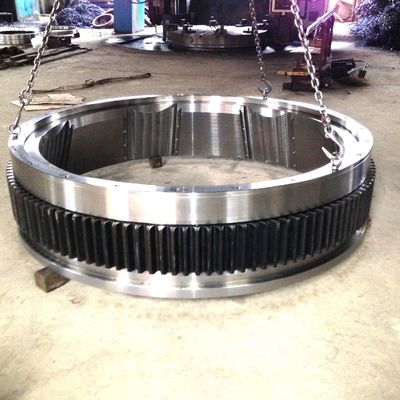

Customized High Precision 120MT Mill Girth Gear Rotary Kiln Girth Gear 8
