600tpd Cement Plant Equipments 20-40mm Active Lime Processing Plant

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

600tpd Cement Plant Equipments 20-40mm Active Lime Processing Plant

600tpd Cement Plant Equipments 20-40mm Active Lime Processing Plant
600tpd Cement Plant Equipments 20-40mm Active Lime Processing Plant 600tpd Cement Plant Equipments 20-40mm Active Lime Processing Plant 600tpd Cement Plant Equipments 20-40mm Active Lime Processing Plant 600tpd Cement Plant Equipments 20-40mm Active Lime Processing Plant

Large Image :  600tpd Cement Plant Equipments 20-40mm Active Lime Processing Plant

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
After-sales Service Provided: Online Service Application Industry: Application Industry
Output: 600-1200tpd For Lime Processing Plant Name: Lime Processing Plant
Type: Lime Processing Plant Product Name: Lime Processing Plant
Installation: Engineer's Guide For Lime Processing Plant Keyword: Lime Processing Plant
Manufactory: Professional Producing Color: Client Requirements
High Light:

600tpd Cement Plant Equipments

,

600tpd Active Lime Processing Plant

,

40mm Active Lime Processing Plant

600tpd 20-40mm active lime processing plant Easy installation



Easy installation active lime processing plant

cement production line 1.jpg





















Active Lime Heavy Industries Co.Ltd

Our company is development of active lime plant mechanical and electrical integration of high-tech products, to complete the national science and technology support plan, developed for metallurgical industry, nissan 600 ~ 1200 tons of active lime used in anshan, wuhan, baosteel and other steel mills, its various technical indicators have reached the international advanced level, some index reached the international leading level, has extended used in calcium carbide, papermaking and other fields.



Description of 600tpd Active lime processing plant:

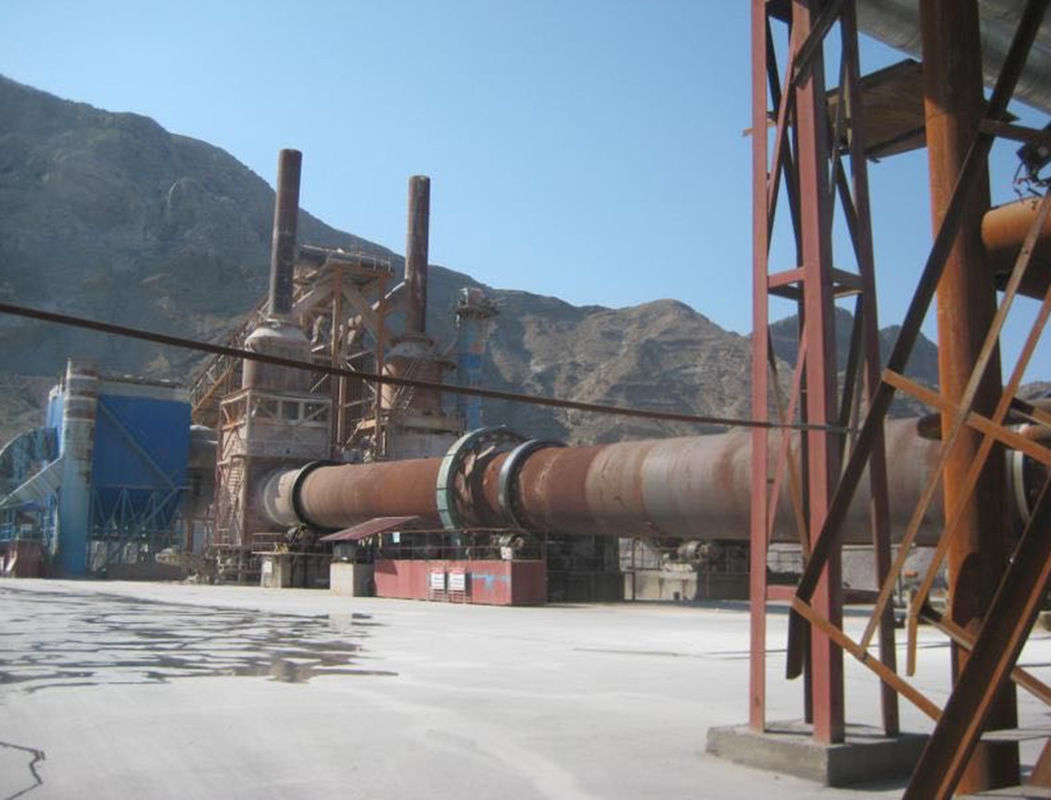

This 600tpd active lime production line is a complete line that includes vertical preheater, rotary kiln, grate cooler, air treatment system, raw material conveyor system, finished product conveyor system, raw coal grinding system, and so on. DCS central control system is employed to make concentrated operation management.



Process Flow of 600tpd Active lime processing plant:
1. Raw Material Conveying:
The 20-40mm limestone on the stock ground is sent to storage silo by the B1000 belt conveyor with large inclination. In the storage silo, qualified limestone with granularity more than 10mm will be sent to the gravel silo, while limestone with particle size less than 10mm will be conveyed to the powder silo.

2. Limestone Calcining:
The limestone calcining system is mainly made up of 10.5×8.5m vertical preheater, 4.0×60m rotary kiln and vertical coolder whose output is 600t/d and heat consumption of 5.75GJ/t. Limestone inside the preheater is heated by high-temperature gases from rotary kiln to 600-800℃, at which temperature limestone can be partly decomposed. Then the limestone will be sent by 12 hydraulic push rods to the kiln end, where it will undergo high-temperature calcination before sent to the vertical cooler. The processed limestone will be cooled down by cold air to 65℃. Air from the vertical cooler enters into the rotary kiln as the second air to take part in calcining process.

3. Finished Product Conveying:
The final lime will be sent to the storage bin for final products by NE500 bucket elevator. After screening, qualified lime whose particle size is more than 5mm will be sent to storage for active lime, while powder lime whose size is less than 5mm will be sent to storage bin for powder.

4. Gas Treating:
High-temperature gases from rotary kiln will do heat exchange with limestone inside the preheater, and after that, the temperature of these gases will reduce to lower 280℃. Then these gases will be cooled down by multi-tube cooler to 200℃ lower. Finally, they enter into the bag filer before discharged into the atmosphere.

active lime production line process.jpg

Main Components of 600tpd Active lime processing plant:

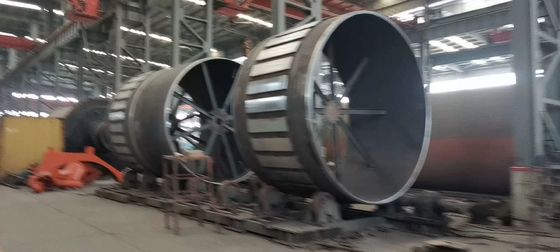

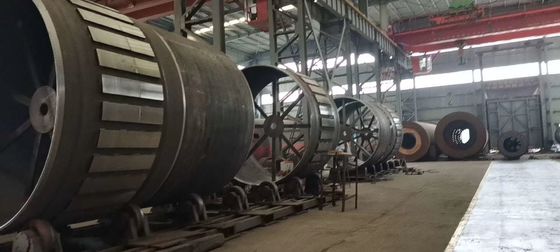

300 rotary kiln04640 rotary kiln1

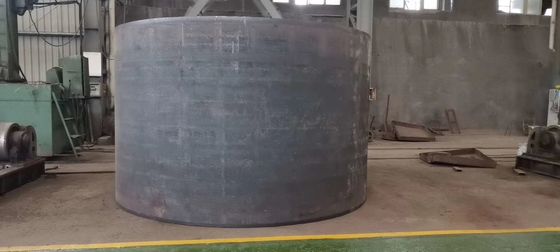

300 rotary kiln tyre11300 Support Roller01
