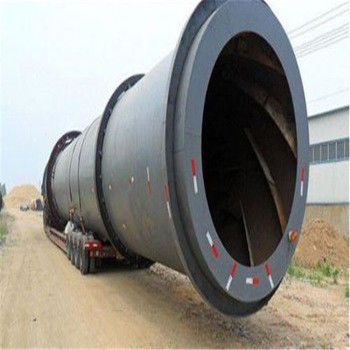

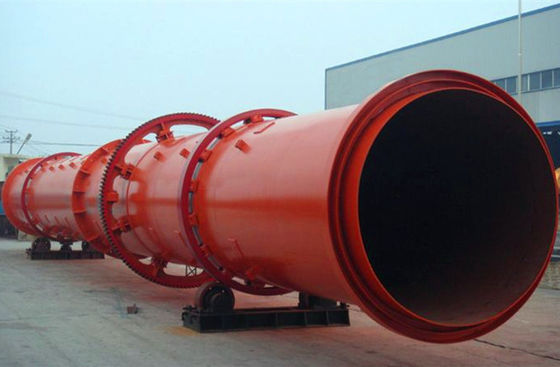

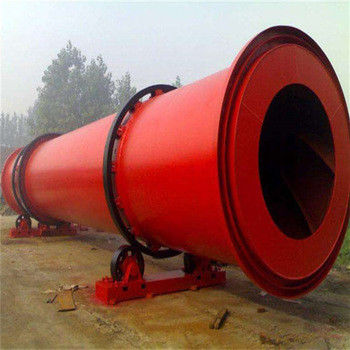

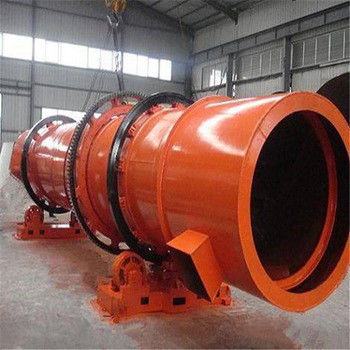

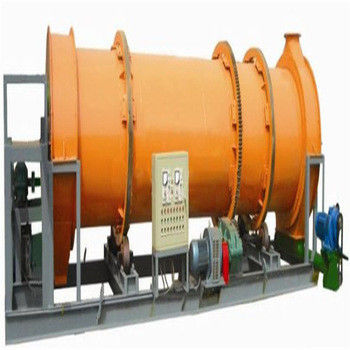

Rotating 12.6-81.4 m3 Metallurgy Machine Continuous Drying Equipment Rotary Dryer

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

Rotating 12.6-81.4 m3 Metallurgy Machine Continuous Drying Equipment Rotary Dryer

Rotating 12.6-81.4 m3 Metallurgy Machine Continuous Drying Equipment Rotary Dryer
Rotating 12.6-81.4 m3 Metallurgy Machine Continuous Drying Equipment Rotary Dryer Rotating 12.6-81.4 m3 Metallurgy Machine Continuous Drying Equipment Rotary Dryer Rotating 12.6-81.4 m3 Metallurgy Machine Continuous Drying Equipment Rotary Dryer Rotating 12.6-81.4 m3 Metallurgy Machine Continuous Drying Equipment Rotary Dryer Rotating 12.6-81.4 m3 Metallurgy Machine Continuous Drying Equipment Rotary Dryer

Large Image :  Rotating 12.6-81.4 m3 Metallurgy Machine Continuous Drying Equipment Rotary Dryer

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Rotary Dryer Specifications: Different Model
Diameter(mm): 2000-3600 Length(m): 4-8
Volume(m3): 12.6-81.4 Shovelling Plate: Spiral Type
Fill Rate: 10-20% Material: Refractory Steel/stainless Steel
Temperature Available: ≤700C° Power: 5.5-22kw
High Light:

81.4 M3 Continuous Drying Equipment

,

12.6m3 Continuous Drying Equipment

,

81.4 M3 Metallurgy Rotary Dryer

high quality rotary dryer

Product Application of rotary dryer
Drum drying equipment is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness
of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the
cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to
dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral
conveyor under the blade, and are conveyed, collected and packed.

Rotating 12.6-81.4 m3 Metallurgy Machine Continuous Drying Equipment Rotary Dryer 0
Features
1. High heat efficiency. The principle of heat transfer of the cylinder dryer is heat conduction and the conducting direction
keeps identical in the whole operation circle. Except heat loss of end cover and radiation loss, all heat can be used for
evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
2. Large operation elasticity and wide application. Various drying factors of the dryer can be adjusted, such as concentration of
feeding liquid/thickness of material film, temperature of heating medium, rotating speed of the drum etc. which can change drying
speed of the under dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and
makes it applicable to dry various materials and to meet different requirements of production.
3. Short drying period. The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive
materials. It also can be pressure reducing operated if it is put in vacuum vessel.

Rotating 12.6-81.4 m3 Metallurgy Machine Continuous Drying Equipment Rotary Dryer 1

Specification

Specifications
φ2.0*4
φ2.5*5
φ3.0*6
φ3.6*8
Diameter(mm)
2000
2500
3000
3600
Length(m)
4
5
6
8
Volume(m3)
12. 6
24.5
42.4
81.4
Shovelling plate
spiral type
Fill rate
10-20%
Material
refractory steel/stainless steel
Temperature available
≤700C°
Evaporation
20-80Kg water/m3.h
Heating system
downstream/direct heat
Heat source
coal,gasoline,electricity,biofuels etc
Revolving speed
4-10 r/min
Power
5.5 Kw
11 Kw
15 Kw
22 Kw
Support equipment
conveyor,airheater,separator,dust collector,draught fan etc.



Rotating 12.6-81.4 m3 Metallurgy Machine Continuous Drying Equipment Rotary Dryer 2
