Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Winch | Loading Capacity: | 0.5~60 Ton Or Customized Design |
|---|---|---|---|
| Wire Rope Capacity: | 20~500m Or Customzied Design | Working Speed: | 20~35m/min Or Customized Design |
| Power Supply: | 220~690V,50/60HZ,three Phase Or Customized Design | Rated Load: | 5-100KN |
| Rope Diameter: | 7.7-30mm | Overall Dimensions: | Different Model |
| Overall Weight: | 200-5100kg | Application: | Factory,mines Engineer,harbor |
| High Light: | 35m/Min Electric Hoist Winch,60 Ton Electric Hoist Winch,0.5 Ton electric boat trailer winch |
||
0.5~60 ton customized design fast speed electric winch for mining

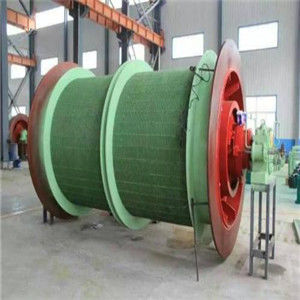

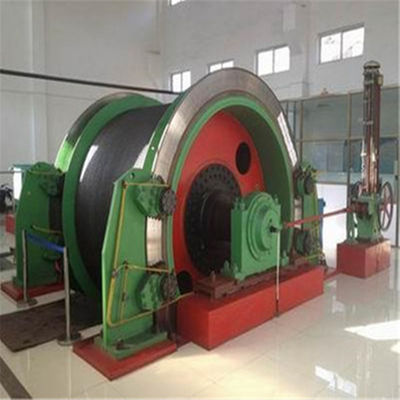

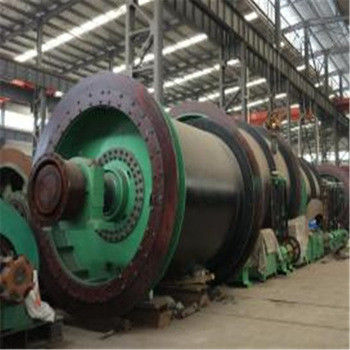

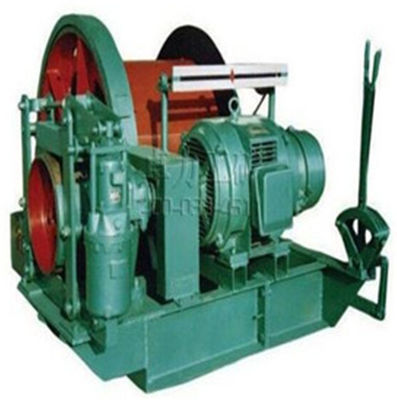

Electric winch
General description
JK series electric winch is a kind of fast speed electric winch. It's mainly used for materials lfting and tracton the weight drops duting construction. It also used for crane as main hoist; it is the special winch of and gantry frame and lifting trolley. It is suitable for construction and small equipments installation of constrction mine eare lifting factory and road construction, bridge construction,factory, mines engineering, harbor, building, etc.
Specific details
1.Loading capacity:0.5~60 ton or customized design;
2.Wire rope capacity:20~500m or customzied design;
3.Working speed:20~35m/min or customized design;
4.Power supply:220~690V,50/60HZ,three phase or customized design.
Application
1.Construction building;
2. Road and bridge construction ;
3.Factory,mines engineer,harbor,etc.
Advantage and feature
1. Light aluminum shell ;
2. Electromagnetic brake ;
3. Electromagnetic contactor ;
4. 24V/36V transformer device ;
5. Hot forging with perfect strength chain;
6. Hook is constructed of anti-pull and heat-treated steel and heat-treated steel .
Technical parameters
| Model | Rated load | Rated speed | Rope capacity | Rope diameter | Motor type | Motor power | Overall Dimensions | Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620 x701 x 417 | 200 |
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620 x 701 x 417 | 300 |
| JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945 x 996 x 570 | 500 |
| JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945 x 996 x 570 | 550 |
| JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325x1335 x 840 | 1011 |
| JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900x1738 x985 | 1500 |
| JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900x 1620 x985 | 2050 |
| JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250x2250x1300 | 2264 |
| JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533x1985x1045 | 3000 |
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250x2500x1300 | 5100 |
