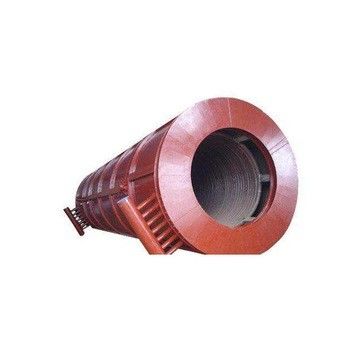

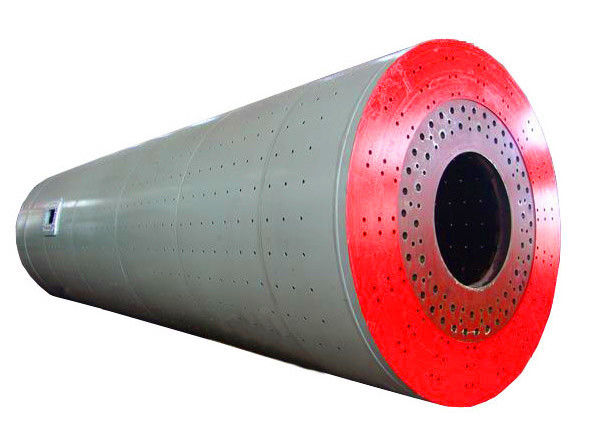

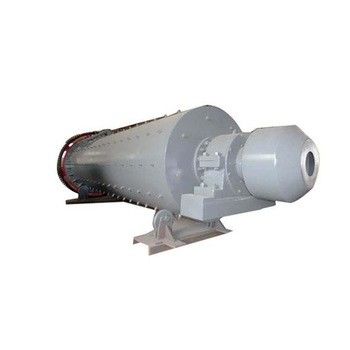

Tube 195tph 4.6x14m Cement Grinding Mill For Cement Plant

Tube 195tph 4.6x14m Cement Grinding Mill For Cement Plant
Tube 195tph 4.6x14m Cement Grinding Mill For Cement Plant Tube 195tph 4.6x14m Cement Grinding Mill For Cement Plant Tube 195tph 4.6x14m Cement Grinding Mill For Cement Plant

Large Image :  Tube 195tph 4.6x14m Cement Grinding Mill For Cement Plant

Product Details:
Place of Origin: Henan, China
Brand Name: CITIC LK
Certification: ISO/CE
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $30,000.00
Packaging Details: Standard packing or according to customer's requirement
Delivery Time: 2-3 months
Payment Terms: T/T, L/C
Supply Ability: 500 Set/Sets per Year
Detailed Product Description
Product Name: Tube Grinding Mill Condition: New
Motor Type: AC Motor Capacity(t/h): 14-195tph
Dimension(L*W*H): 2.2x6.5-4.6x14 M Weight: 49-485 T
Warranty: 1 YEAR Tube Grinding Mill: 2.2x6.5-4.6x14 M Tube Grinding Mill
Capacity: 14-195 Tph Port: QingDao,ShangHai,TianJin
High Light:

4.6x14m Cement Grinding Mill

,

195tph Cement Grinding Mill

,

4.6x14m ball mill in cement plant

Tube 195tph Cement Grinding Mill For Cement Plant

Product Description

Tube ball mill is widely used in building materials, metallurgy, mineral processing, power and chemical industry grinding cement and other materials. The tube mill has a large crushing ratio, large production capacity, strong adaptability to the material, wear parts easy to replace and other characteristics, the tube mill is composed of drive part, rotating part, main bearing, Access device and lubricating part.

Our tube ball mill is of horizontal, cylindrical and tubular structure. The materials are evenly fed through the charging device to warehouse where there are step scales boards, corrugated scale boards and different specifications of steel balls. When the cylinder rotates, the centrifugal force produced causes the steel balls rising and falling to impact and grinds the materials in the ball mill. The materials are then lead to the second cabin for further milling until they turn into powders and are discharged from the outlet.



Our driving force

The standard CITIC mill is shell-supported on slide shoes and has a central drive. Torque transmission is effected via the conical discharge end. This cone is welded to the mill shell and has openings for the discharge of material and exhaust gases. The drive flange is connected to the end of the cone. In this way, the drive force is distributed directly and evenly to the mill shell.

All standard types of mill drives can be connected, such as:

  • Central Drive
  • INTEGRAL DRIVE
  • Girth Gear and Pinion Drive


High on performance, low on space requirements: INTEGRAL DRIVE

Our mills for minimum space requirements are mounted on slide shoe bearings and have an INTEGRAL DRIVE. The core of this drive is a two stage planetary gear reducer, which is directly mounted on the end cone. Only one short slide seal at the motor end and a closed oil lubrication system extend the time between oil changes and reduce the risk of entering of dust particles. Installation is fast and easy. No time consuming adjustments. Our INTEGRAL DRIVE is the most economic drive due to its high availability and a mechanical efficiency level of almost 99%.



The main features at a glance:

  • Extremely compact arrangement
  • No foundation for the gear reducer
  • No complicated drive adjustments
  • The motor can be installed separately from the gears
  • Does not need to be run in
  • Low staffing level for operation monitoring
  • Environment-friendly due to light sealing, No grease required
  • High availability
  • High efficiency level as no coupling required on the mill side
  • Feature

    1. small running resistance

    2. high efficient and energy saving

    3. large production capacity

    4. low noise

    5. Wet and dry intermittently to mill, mix, discharge material

    6. a super fine grinding mill



Technical Parameters of Cement Tube Mill:

Specification (diameter×length) Rotating speed
(r/min)
Feeding size (mm) Productivity (t/h) Loading capacity of mill (t) Main motor Main speed reducer Weight (t)
Model Power (kw) Rotating speed (r.p.m) Model Speed ratio
φ2.2×11 20.91 ≤25 15~17 50 TR1512-8 570 740 Zd80 5.6 92
φ2.4×8 20.91 ≤25 14~18 39.5~42 TRQ1512-8 570 740 Zd80-9 5 76.4
φ2.4×9 20.91 ≤25 23~25 50 TR1512-8 570 740 Zd80-9 5 91
φ2.4×10 20.91 ≤25 16~22 50 TR1512-8 570 740 Zd80-9 5 111
φ2.4×11 21 ≤25 19~24
22~28
6265 YR710-8/1180 710 740 JDX630 5.6 125
φ2.4×12 21 ≤25 18~20
21~23
6365 YR800-8/1180 800 740 MBY710 6.3 127
φ2.4×13 21 ≤25 21~22
24~26
6668 YR800-8/1180 800 740 MBY710 6.3 131
φ2.6×10 20.6 ≤25 21~24 64 YR800-8/1180 800 740 JDX710 6.3 140
φ2.6×13 20.6 ≤25 28~31 81 YR1000-8/1180 1000 740 JDX800 6.3 158
φ3.0×9 19.13 ≤25 40~45 85 YR1000-8/1180 1000 740 MBY800 7.1 148
φ3×11 18.92 ≤25 44~47 95 YR1250-8/1430 1250 740 JDX900 7.1 177
φ3×12 18.92 ≤25 48~52 103 YR1250-8/1430 1250 740 JDX900 7.1 182
φ3×13 18.92 ≤25 39~45 116max YR1400-8/1430 1400 740 JDX900 7.1 200.7
φ3.2×11 18.3 ≤25 45~48 112max YR1600-8/1430 1400 740 JDX900 7.15 213.6
φ3.2×13 18.7 ≤25 50~55 133max YR1600-8/1430 1600 740 JDX1000 7.15 237
φ3.4×11 18 ≤25 45~55 120max YR1600-8/1430 1600 740 JDX1000   230
φ3.5×13 17 ≤25 60~65 156max YR2000-8/1730 2000 740 TS130-A-F1   257.6
φ3.8×13
(main bearing type)
17 ≤25 65~70 190 YR2500-8/1730 2500 740 JS130-C-F1   316
φ3.8×13 17 ≤25 65~70 185 YR2500-8/1730 2500 740 DMG22/2500   313
φ4×13 16.3 ≤25 78~80 191 YRKK900-80 2800 745 JS140-A   348
φ4.2×11
(main bearing type)
15.8 ≤25 100~110 182~190 YR2800-8/17830 2800 740 JS140-A-F1D   350
φ4.2×13
(main bearing type)
15.2 ≤25 120~130 245 YRKK1000-8 3350 740 MFY355-A   390
φ4.2×13 15.2 ≤25 110~120 230 YRKK1000-8 3350 740 MFY355-A   380
φ4.6×14 15 ≤25 100~115 285 YR1000-8 4200 740 J3160-C   485


Note: Parameters in the form are only for reference, so for specific ones, customers need to refer to the contract.

Technical Parameters of Raw Mill:

Specification (diameter×length ) Rotating speed
(r/min)
Feeding size (mm) Productivity (t/h) Loading capacity of mill (t) Main motor Main speed reducer Weight (t)
Model Power (kw) Rotating speed (r.p.m) Model Speed ratio
φ3×(8.5+5) 18.9 ≤25 55~53 76~80 YR1000-8/1180 1000 740 JDX800 6.3 160
φ3.2×(7+1.8)
(Cantilever drying)
18.25 ≤25 50~53 59 YR630-8 1000 740 JDX800 6.3 153
φ3.5×10
(Cantilever drying)
17.3 ≤25 75~80 87 YR1250-8/430 1250 740 JS110-A-F1   214
φ3.6×(7.5+1.5) 17.3 ≤25 90~95 98 YRkk710-8 1400 740 JDX900 7.1 220
φ3.8×1.2 16.6 ≤25 133 100~110 YR800-8 2000 740 JS130-A   295
φ4.6×(9.5+3.5) 15 ≤25 185 175~180 YRkk1000-8 3550 740 MFY355A   415


Note: Parameters in the form are only for reference, so for specific ones, customers need to refer to the contract.

Technical Parameters of Wet Raw Mill:

Specification (diameter×length ) Rotating speed
(r/min)
Feeding size (mm) Productivity (t/h) Loading capacity of mill
(t)
Main motor Main speed reducer Weight (t)
Model Power (kw) Rotating speed (r.p.m) Model Speed ratio
φ2.2×7 21.4 ≤3 20~25 31 YR148-8 380 740 ZD70-9 5 49
φ2.2×13 21.6 ≤25 33~37 58~60 YR630-8/1180 630 740 MBY630 5.6 53.4
φ2.4×13 21 ≤25 45~50 65~70 YR800-8/1180 800 740 JDX710 5.6 131
φ2.6×13 20 ≤25 45~46 80t (max) YR1000-8/1180 1000 740 TDX800 6.3 153
φ6.2×6.4 18.5 ≤25 32~41 86~90.5 TDMK1000-36 1000 740     134


Note: Parameters in the form are only for reference, so for specific ones, customers need to refer to the contract.

Technical Parameters of Drying Raw Mill:

Specification (diameter×length ) Rotating speed
(r/min)
Feeding size (mm) Productivity (t/h) Loading capacity of mill
(t)
Main motor Main speed reducer Weight (t)
Model Power (kw) Rotating speed (r.p.m) Model Speed ratio
φ2.4×8 20.91 ≤25 25~28 39~42 JRQ1512-8 570 740 ZD80-9 5 76.4
φ2.4×10 20 ≤25 27~30
38~40
50 YR710-8/1180 710 740 JDX630 5.6 111
φ2.4×11 21 ≤25 41~42
46~48
62~65 YR800-8/1180 800 740 MBY710 6.3 125
φ2.4×12 21 ≤25 40~42
45~48
63~65 YR800-8/1180 800 740 MBY710 6.3 127
φ2.4×13 21.5 ≤25 48~51 68~72 YR800-8/1180 800 740 MBY710 6.3 131
φ2.6×8 20 ≤25 30~35 54 YR630-8/1180 630 740 JDX630 5.6 135
φ2.6×10 20.91 ≤25 45~46 80 YR1000-8/1180 1000 740 JDX710 6.3 136
φ3×9 19.13 ≤25 50~55 76~80 YR1000-8/1180 1000 740 JDX800 6.3 145
φ3.2×7 18.25 ≤25 50~52 58 YR1000-8/1180 1000 740 MBY800 6.3 140
φ3.2×9 18.3 ≤25 60~70 90 YR1250-8/1430 1250 740 JDX900 7.1 175
φ4.6×10+3.5 15 ≤25 195 190   3550 740 JS150-B-F   476


Note: Parameters in the form are only for reference, so for specific ones, customers need to refer to the contract.

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

     2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged      parts

     3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.



Q:Delivery time

A: parts lead time 1-2months, machines 2-3months.



Q:Payment terms

A: Accept payment type: T/T, L/C, Western union,Cash.

30% deposit when signed contract. Full payment paid before shipping



Q: Quality warranty?

A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.



Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.
